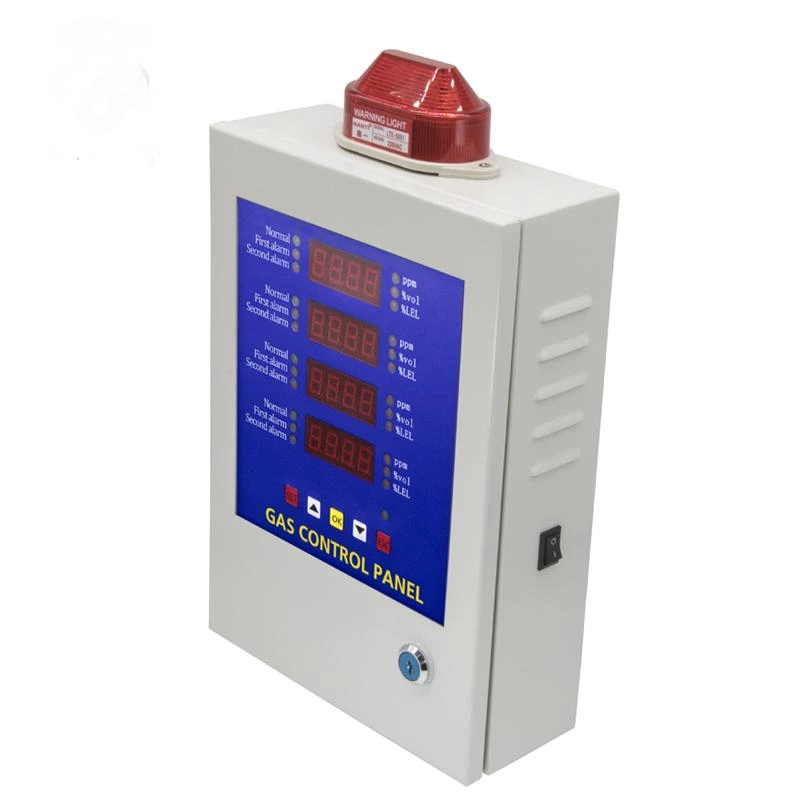

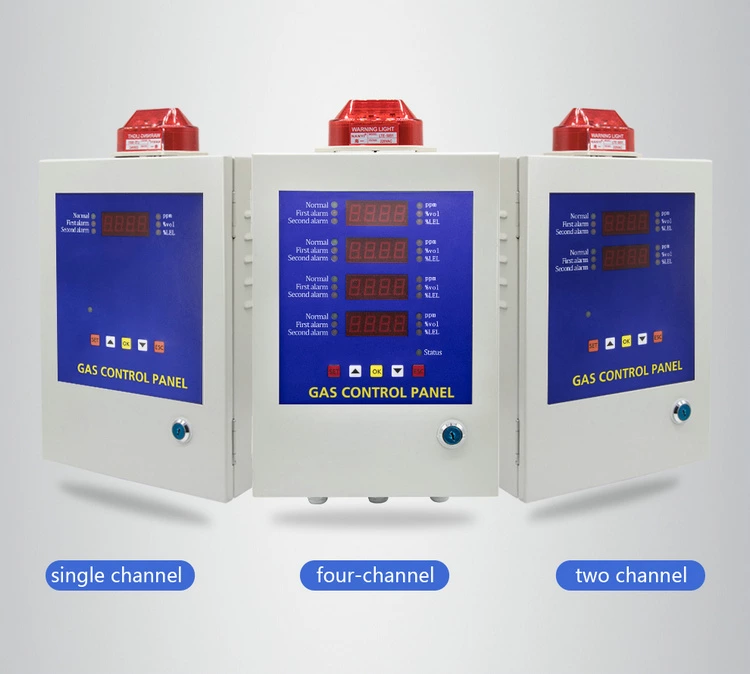

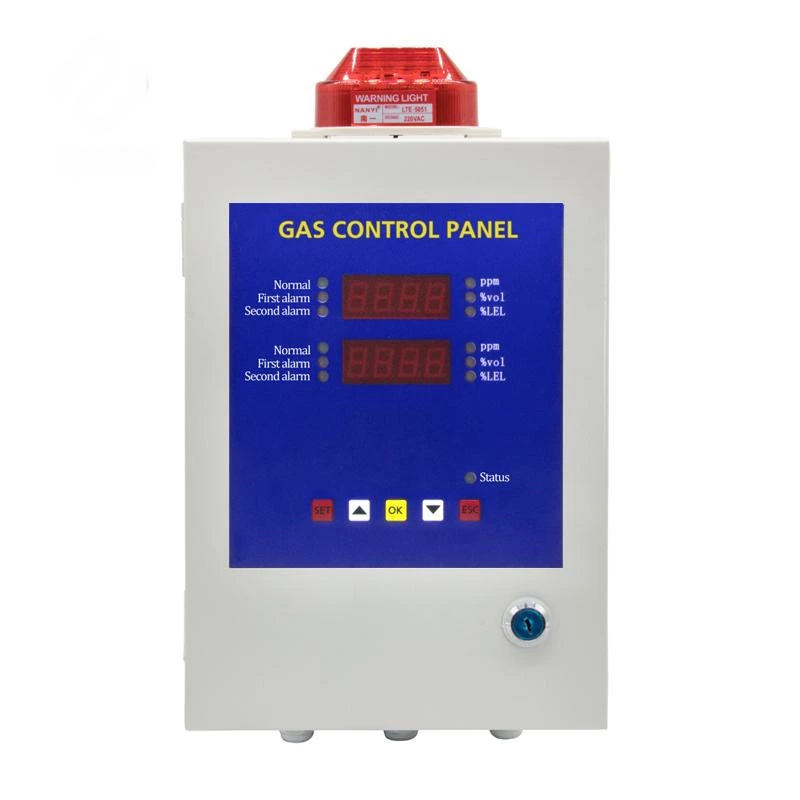

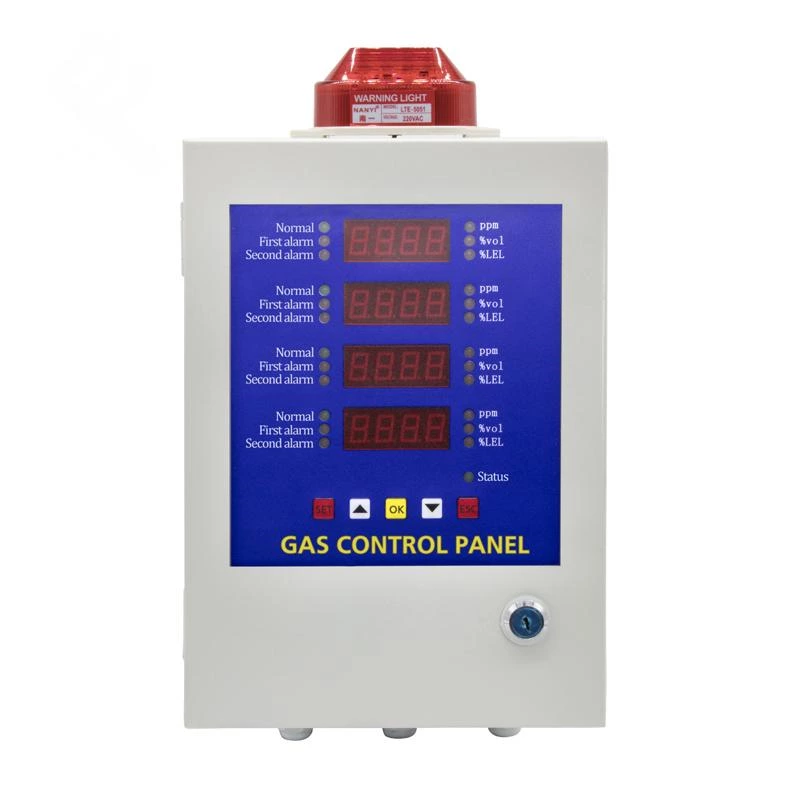

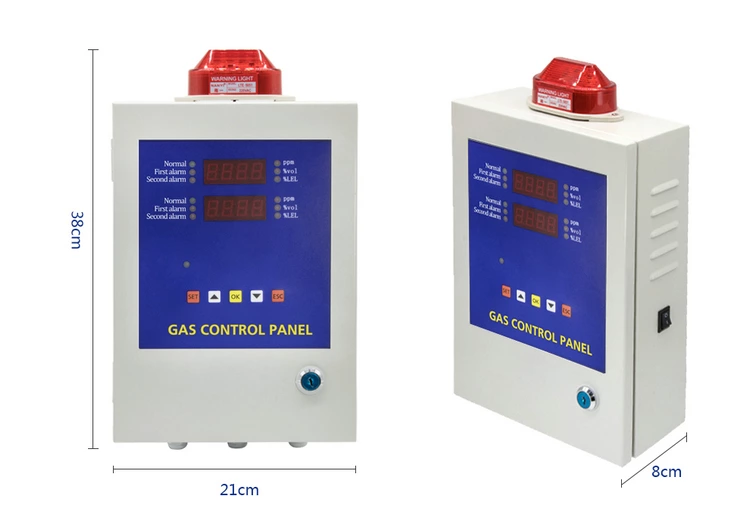

BH-50 Gas Control Panel 1 to 4 Channels

Name: BH-50 Gas Control Panel 1 to 4 Channels
SKU: BH-50
Rating: 4.8 (3 reviews)

BH-50

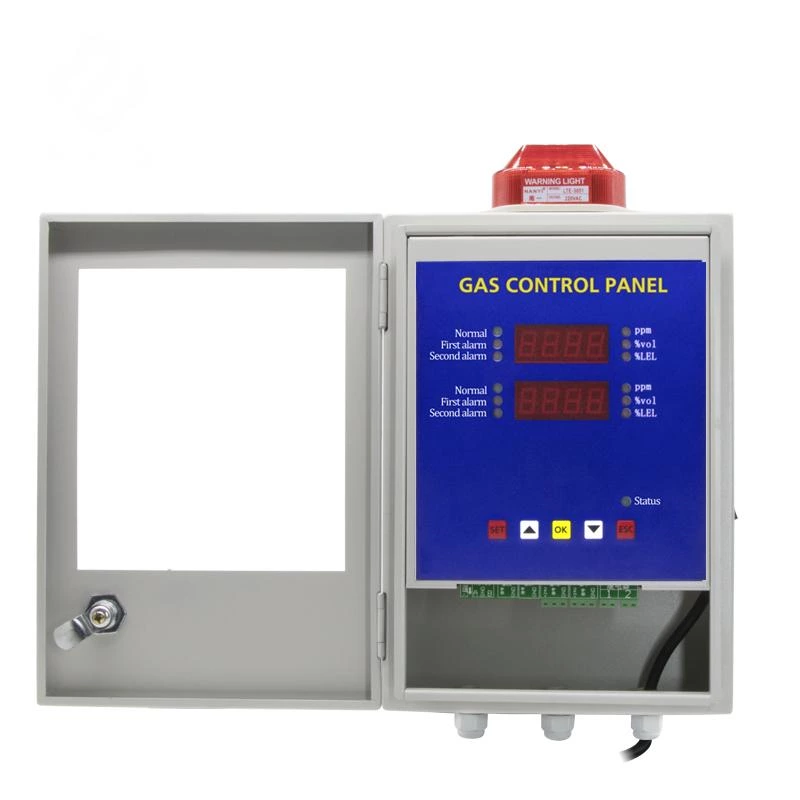

Installation method: Wall mounted and cabinet type
Detector type: 4~20mA signal output
Accuracy: ±5%F.S. Response time: ＜10s
Indication: LED screen displays gas concentration level, LED indicates alarm and fault
Input: 4～20mA
Working method: continuous work
Working temperature: -10℃～50℃
Working humidity: ＜95%RH
Working voltage: AC220V±15% 50Hz±l%
Output Power: DC24V to detector
Weight: 3kgs
Cabinet: 350mm(L)*230mm(W)*80mm(T)
Cable: ≥ RVVP 1.5 mm2×3
Transmit distance: ≤1000m

Enquiry

Features

Parameters

Installation method	Wall mounted and cabinet type
Detector type	4~20mA signal output
Accuracy	±5%F.S.
Response time	＜10s
Indication	LCD screen displays gas concentration level, LED indicates alarm and fault
Input	4～20mA
Working method	continuous work
Working temperature	-10℃～50℃
Working humidity	＜95%RH
Working voltage	AC220V±15% 50Hz±1%
Output Power	DC24V to detector
Weight	3kgs
Cabinet	350mm(L)230mm(W)80mm(T)
Cable	≥ RVVP 1.5 mm2×3
Transmit distance	≤1000m
