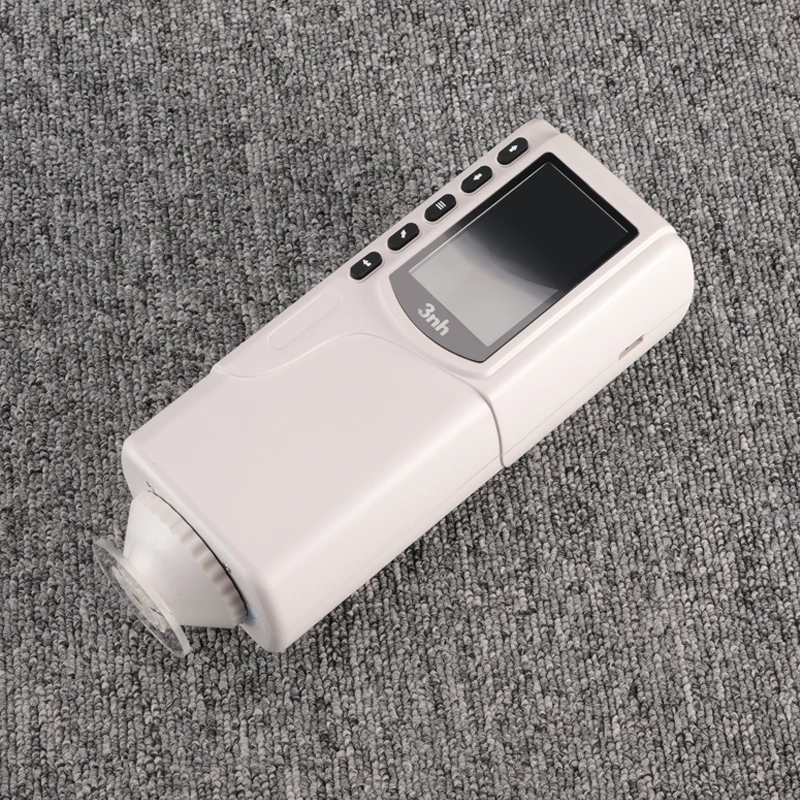

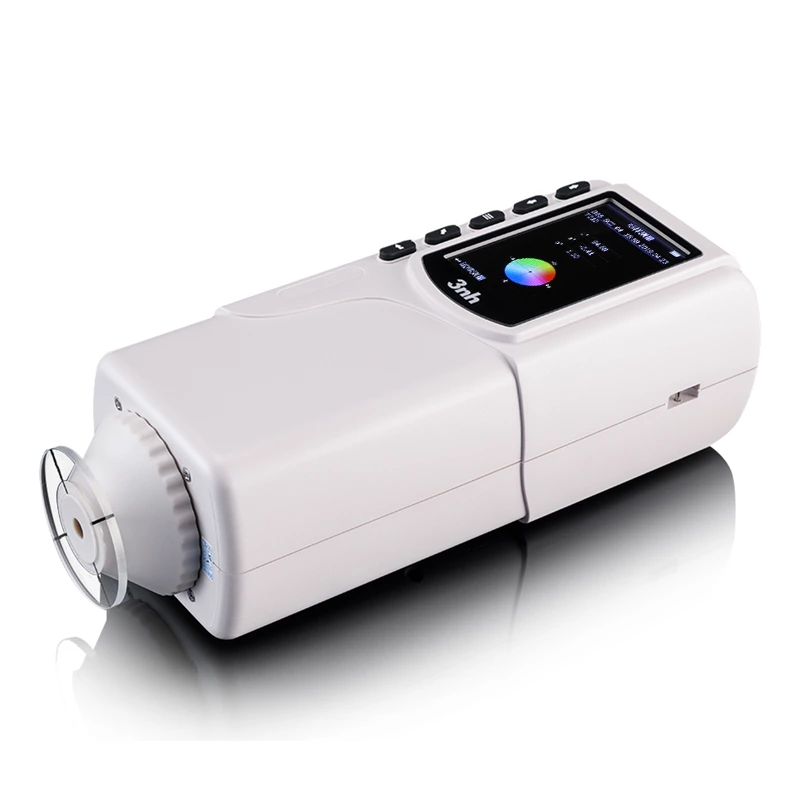

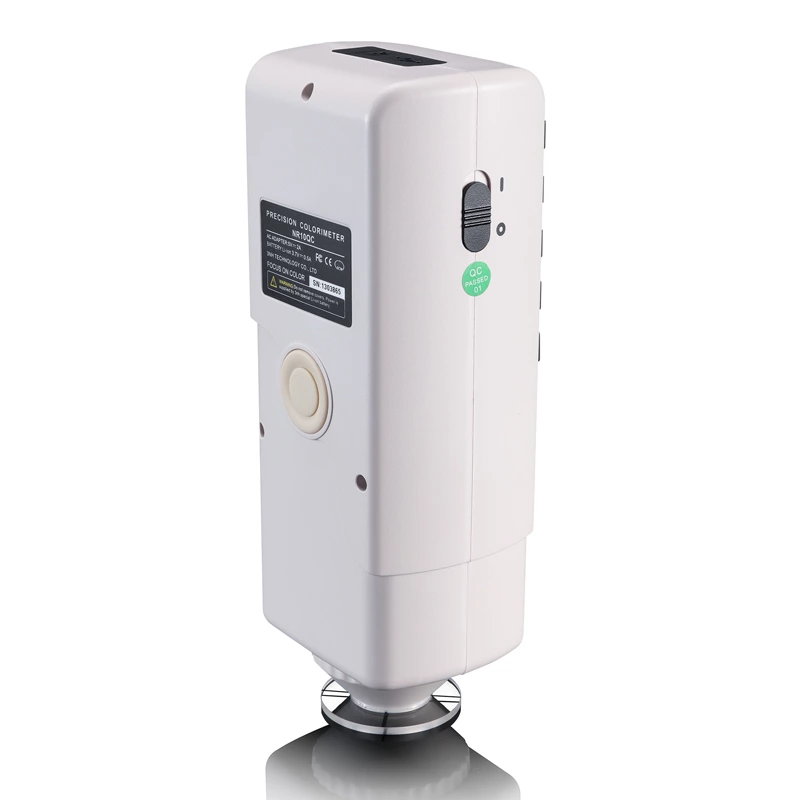

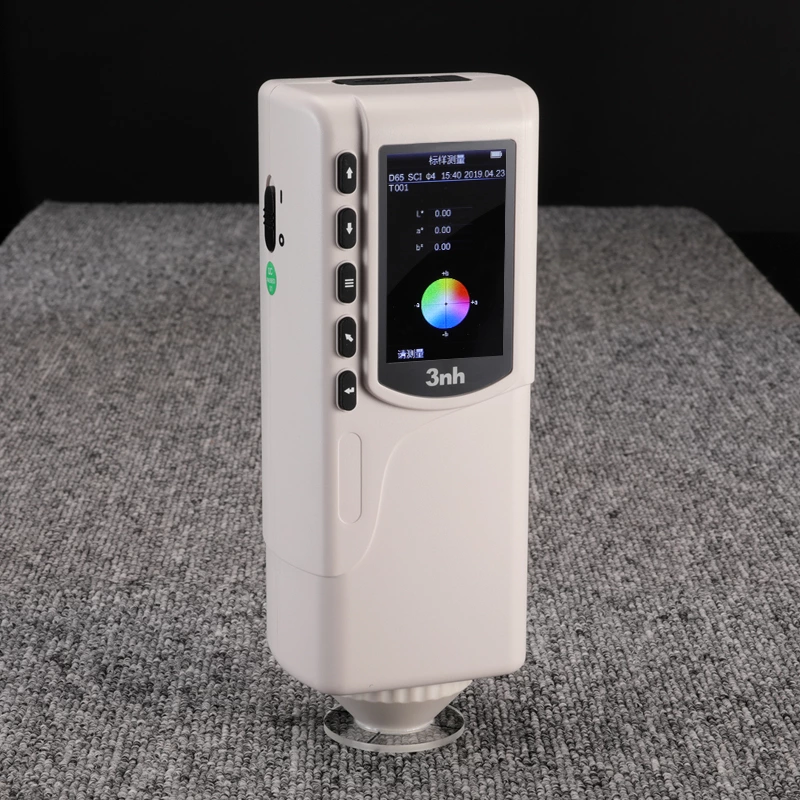

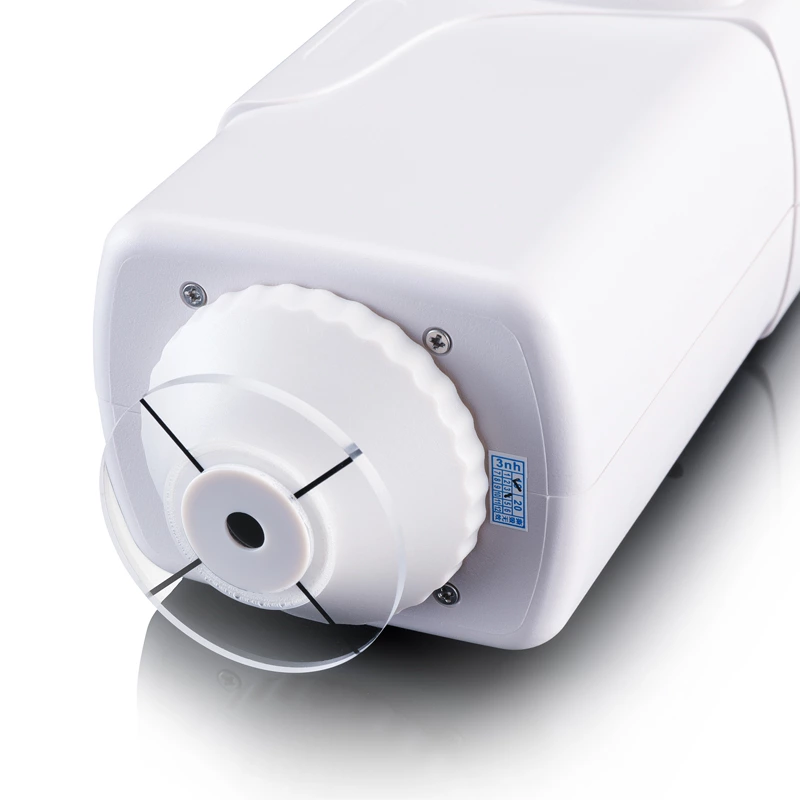

NR10QC Colorimeter

NR10QC

  • Standard:CIE No.15, GB/T 3978
  • Measuring Aperture:4mm
  • Color Space:CIE LAB, Lch
  • Observer:CIE 10°
  • Measuring Time:1.5s
  • Errors between each instrument:ΔE*ab 0.4
  • Dimension:205*67*80mm
  • Weight:400g
Enquiry

In response to the market demand for low price and high cost performance products, 3nh has developed the NR10QC economic colorimeter, which is a higher cost-effective model. With the advantages of high precision, high performance and low price, this model has been widely used in food, chemical industry, electronics, automobile, cosmetics, food and other fields.

Features

  • High performance and low price
  • Repeatability: ΔE ≤ 0.03
  • Double locating: Illuminating locating and precise cross locating
  • Equipped with rechargeable Li-ion battery, no need to purchase battery repeatedly
  • 4mm measuring aperture, portable structure, suitable for more measuring occasions
  • White appearance, color box packaging, easy to transport
  • Built-in white plate parameters, no need to do calibration
  • Directly use after power on, no need to connect with computer.

PARAMETERS

Model NR10QC
Illuminating/Viewing Geometry 8°/D
Standard CIE No.15, GB/T 3978
Sensor silicon photodiode
Measuring Aperture 4mm
Color Space CIE LAB, Lch
Observer CIE 10°
llluminant D65
Display Data Colorimetric Value, Color Difference Value Storage
Measuring Time 1.5s
Repeatability ΔE* ab ≤0. 08(Average of 30 measurements of standard white plate)
Errors between each instrument ΔE*ab 0.4
Dimension 205*67*80mm
Weight 400g
Battery rechargeable lithium-ion battery 3. 7V@ 3200mAh
Lamp Life 5 years, more than 1.6 million measurements
Screen TFT 2.8 inch(16: 9)
lnterface USB
Storage 100 Standards, 10000 Samples
Operating Temperature 0-40°C(32-104°F)
Storage temperature -20-50°C(-4-122°F)
Standard accessories power adapter,  instructions,Wristband
Optional accessory miniature thermal printer, powder test box
