Name: NDJ Digital Display Viscometer
SKU: NDJ
Rating: 4.8 (0 reviews)

NDJ Digital Display Viscometer

NDJ

Voltage:AC 220V±10，50Hz±10%
Power:12W
Display Mode:LCD
Operation Panel Selection:Chinese/English
Measurement Accuracy:±2%（Newtonian liquid）
Repeatability Error:±1%（Newtonian liquid）

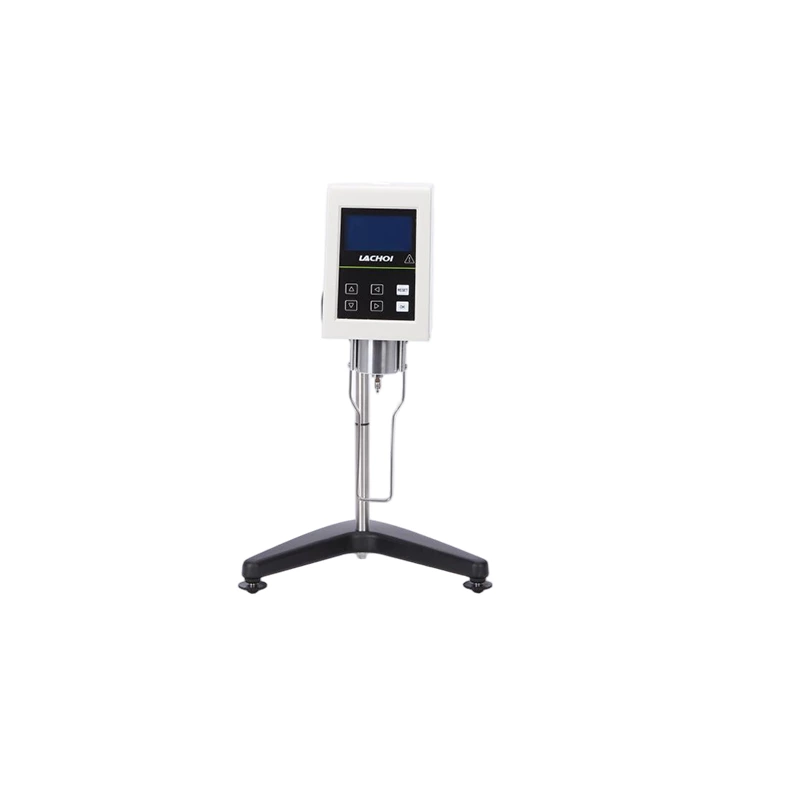

NDJ-5S/8S/9S digital display viscometer is an upgraded product of our company's rotary viscometer. This instrument adopts advanced mechanical design technology, manufacturing process and microcomputer control technology, data collection is correct, the display adopts blue backlight, high- brightness LCD display,and the data display is clear.

Features

The lifting system adopts helical rack/helical gear method
A universal joint is added at the interface connecting the rotor
The transmission gear is made of engineering plastics with high wear resistance and high performance
The rotor is made of imported high-quality 304 stainless steel
Adopt digital blue backlit LCD screen
Microcomputer control technology, data collection is correct
The measurement time can be set according to the needs of the user (when the speed is below 6 rpm, the
rotation speed is different, the timing duration is different)

Parameters

Model	NDJ-5S	NDJ-9S	NDJ-8S
Voltage	AC 220V±10，50Hz±10%
Power	12W
Display Mode	LCD
Measurement Range	1-1×10⁵mPa·s	1-2×10⁶mPa·s
Rotor Specificatio	No. 1-4 rotor, optional No. 0 rotor can measure low viscosity to 0.1 mPa·s
Rotor Speed	6, 12, 30, 60 rpm		0.3, 0.6, 1.5, 3、6, 12, 30, 60 rpm
Automatic gear	Can select the appropriate rotor and speed
Operation Panel Selection	Chinese/English
Reading-stabilized cursor	When the vertical bar and square cursor is full, the reading is basically stable
Measurement Accuracy	±2%（Newtonian liquid）
Repeatability Error	±1%（Newtonian liquid）
Timing Length	40s-99min59s/ continuous operation
Temperature Measuring Equipment	/		Yes	/
RS232 interface	Optional
Working Environment	Temperature 5℃-35℃，Relative humidity≤80%
Dimension	370325280mm
Net Weight	6.2Kg
Package Dimension	370320285mm
Gross Weight	7Kg
