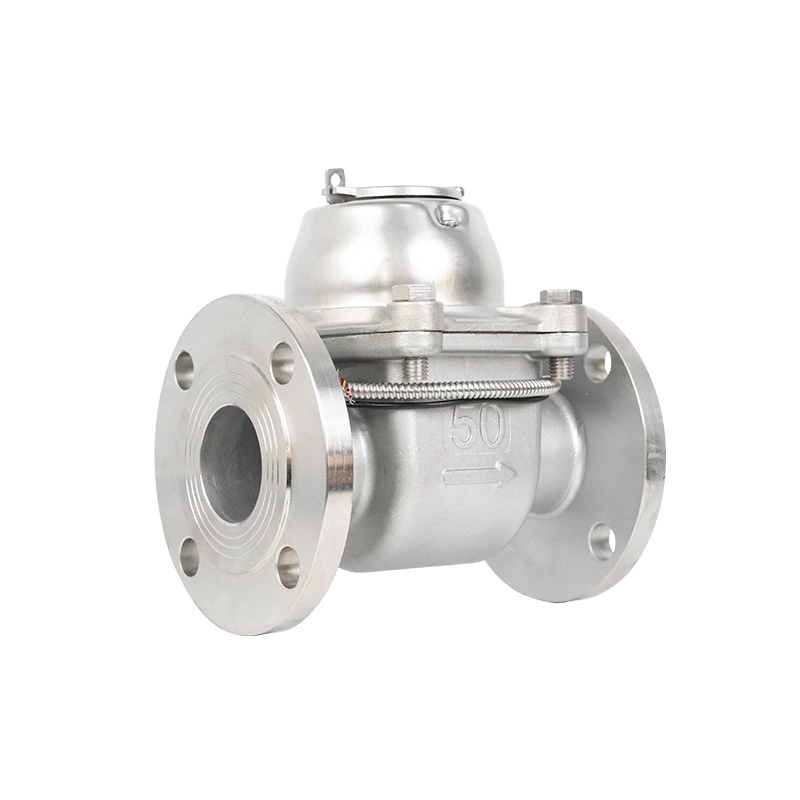

Horizontal woltman water meter is used to measure the total flow of large flow pipeline. It is especially suitable for water supply main pipeline and mining water demand of large plants. The main features are large circulation capacity, small volume, compact structure, easy to use and maintenance.
Characteristics
- Dry magnetic transmission structure ensures that the counter is clean and clear.
- Large flow capacity, small pressure loss and stable performance curve.
- The measuring movement is replaceable and easy to disassemble.
- Stainless steel fasteners and epoxy resin powder are sprayed inside and outside the shell to maximize rust prevention and prolong the service life of the product.
- The measuring mechanism has good universality, magnetic connection,small transmission resistance, sensitive and reliable operation.
- The counter is vacuum sealed, anti condensation and atomization, and can keep the reading clear and accurate all year round.
- Pulse output

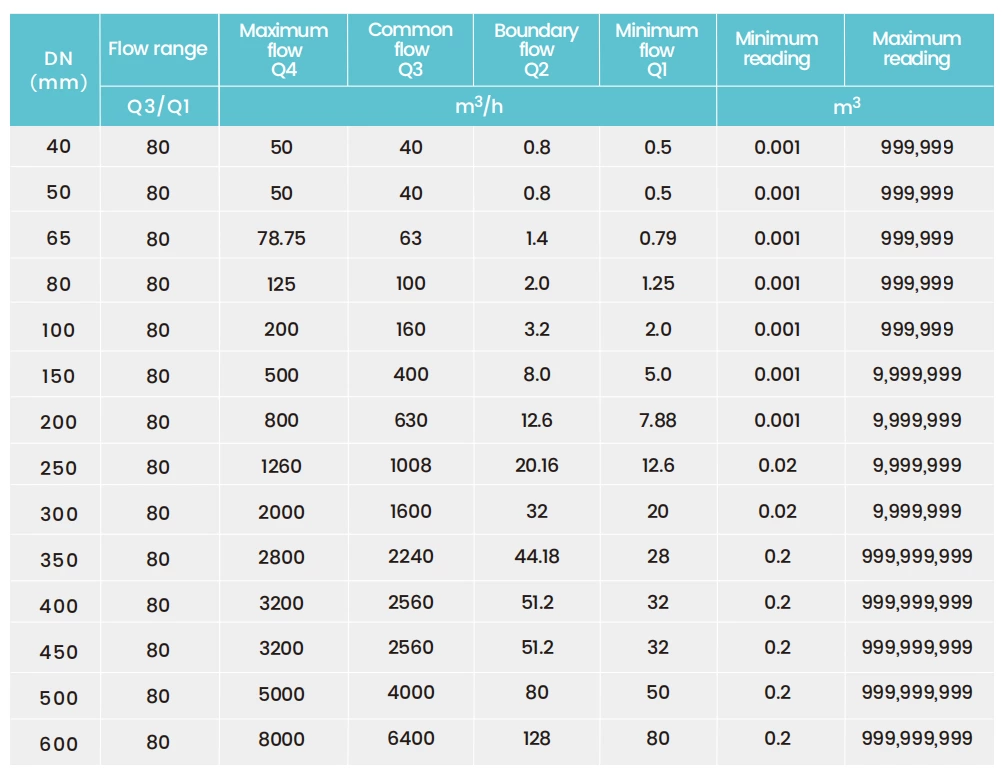

Parameters
- Cold water: T30/T50
- Hot water:T90
- Working pressure: PN10/PN16
