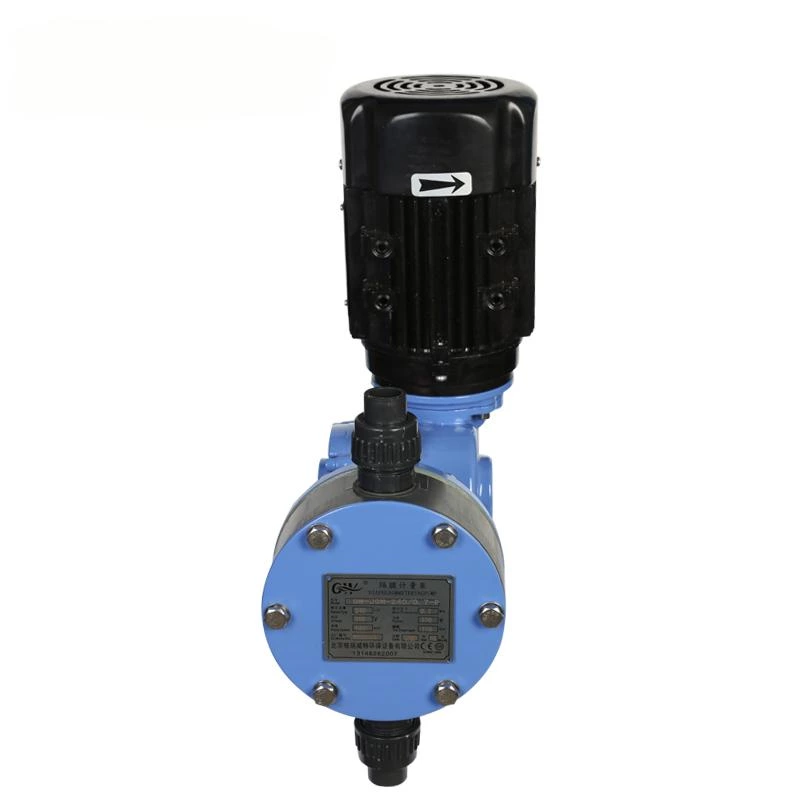

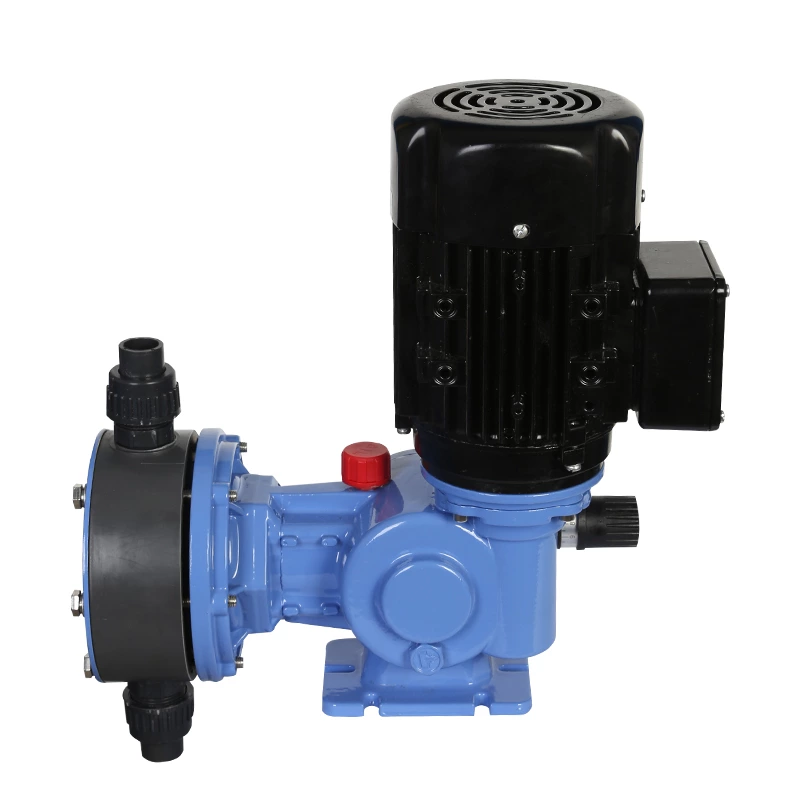

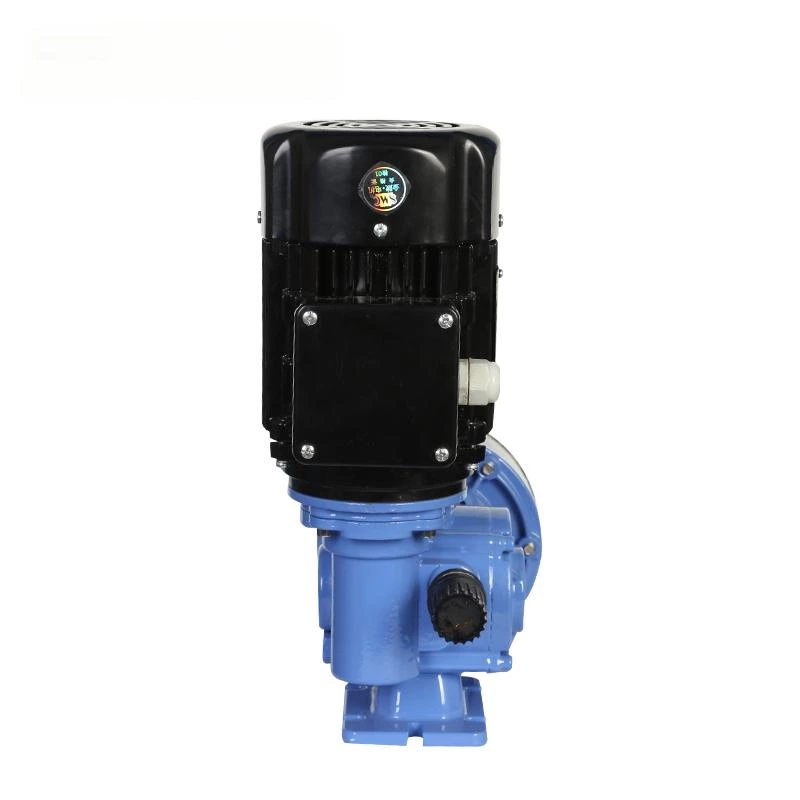

Metering pump is a process component capable to transfer defined volumes of liquid with high accuracy, moreover it is possible to vary the flow rate by acting on integral devices.To obtain the bestperformances, select the pump considering the duty required and the conpatibility of the construction materials of the contact parts.
Parameters
| Model | Flow Q(L/H) | Pressure(Mpa) | Power(KW) | Inlet and outlet diameter (mm) |
| MS1-GW25/1.2 | 25 | 1.2 | 0.37 | DN15 |
| MS1-GW60/1.0 | 60 | 1.0 | DN15 | |
| MS1-GW80/1.0 | 80 | 1.0 | DN15 | |
| MS1-GW120/1.0 | 120 | 1.0 | DN15 | |
| MS1-GW155/0.7 | 150 | 0.7 | DN15 | |
| MS1-GW220/0.7 | 220 | 0.7 | DN15 | |
| MS1-GW330/0.5 | 330 | 0.5 | 0.55 | DN15 |
| MS1-GW500/0.5 | 500 | 0.5 | DN25 |
