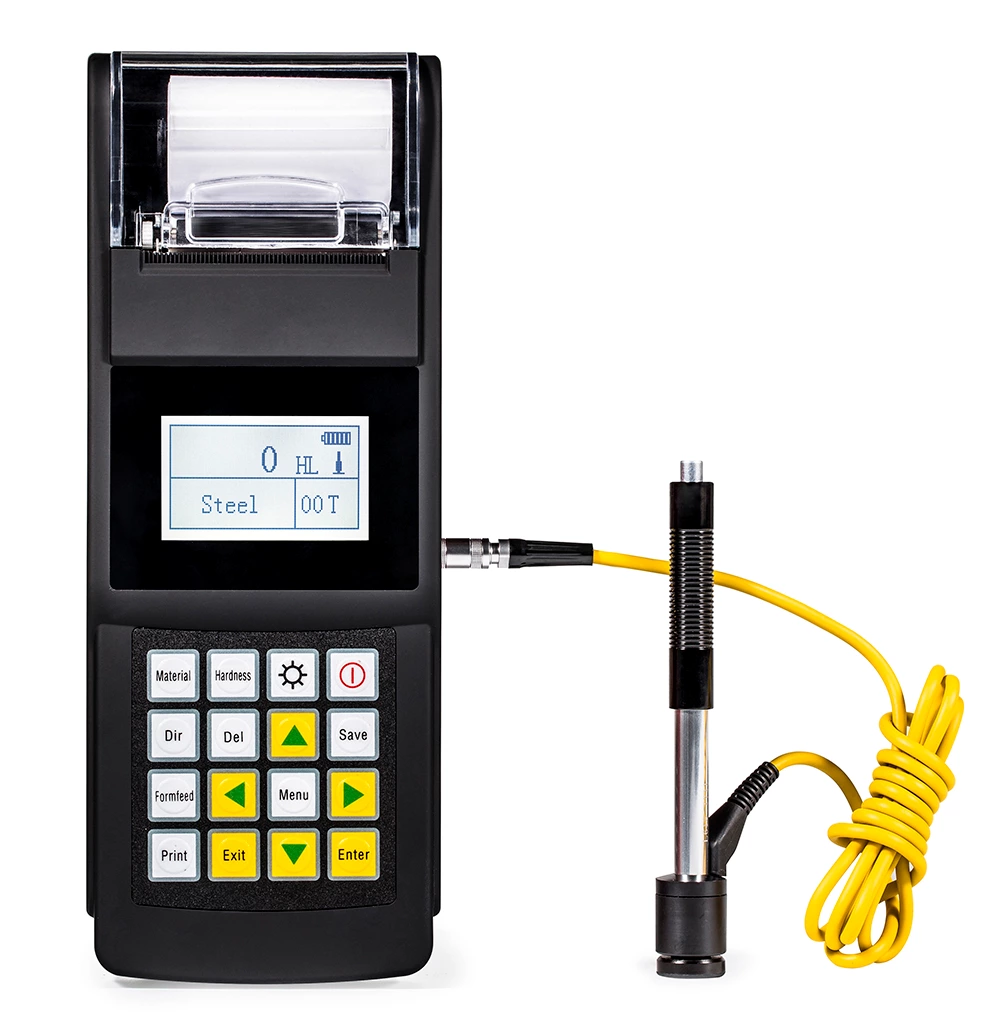

Leeb140 Hardness Tester

Leeb140

Hardness parameter: HL, HRC,HRB, HS,HB,HV

Accuracy: ±6HLD/ ±1.5HRC

Display: LCD with back-light

Memory: 600 groups

PC Connection: Available

Battery type: Rechargeable Li-ion battery

Operating temperature: -20℃~+60℃

Dimensions: 230×86×46mm

Enquiry

Features:

  • With built-in thermal printer
  • PC Software for data transmission, analysis and measurement reports printing(optional)
  • Direct calibrate on HL,HRC,HB, and freely switch to 6 different hardness scales
  • Test at any angle and direction, even upside down
  • Large LCD screen with back-light, showing all functions and parameters
  • Conversion to tensile strength (U.T.S)
  • Rechargeable Li-ion battery

Measuring Materials:

Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel.

Technical Specification

Model Leeb140
Measuring Range (170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV, (30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB
Hardness parameter HL, HRC,HRB, HS,HB,HV
Accuracy ±6HLD/ ±1.5HRC
Display LCD with back-light
Memory 600 groups
PC Connection Available
Printer Build-in High-speed Thermal Printer, Width for printer paper:44.5±0.5mm
Battery type Rechargeable Li-ion battery
Operating temperature -20℃~+60℃
Dimensions 230×86×46mm
Impact Device Type D,DC,DL,D+15,G,C,E
Weight 400g
Standard Delivery Main unit,Impact Device type D,Operation manual,Power adapter,Small supporting ring,Cleaning brush,Certificate,Calibration block,paper of Printer
Optional Accessories Optional Impact Devices,Shaped support ring,Paper for printer
