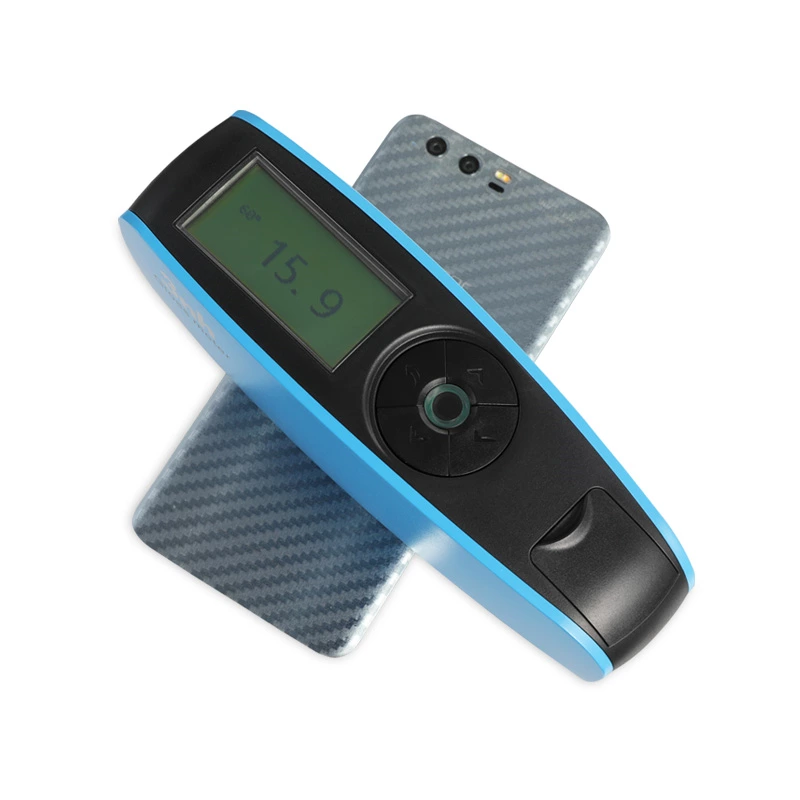

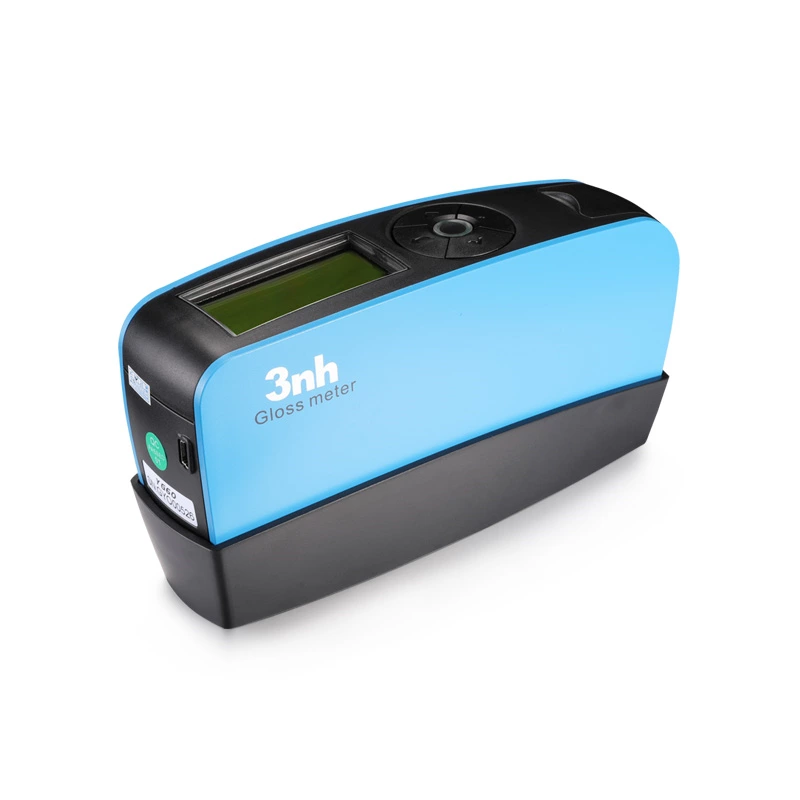

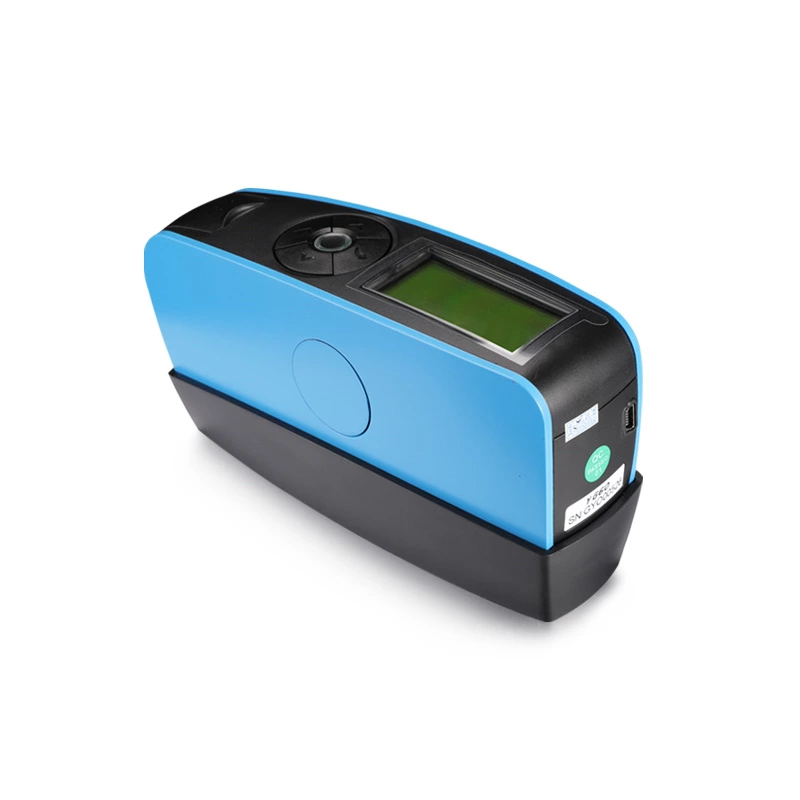

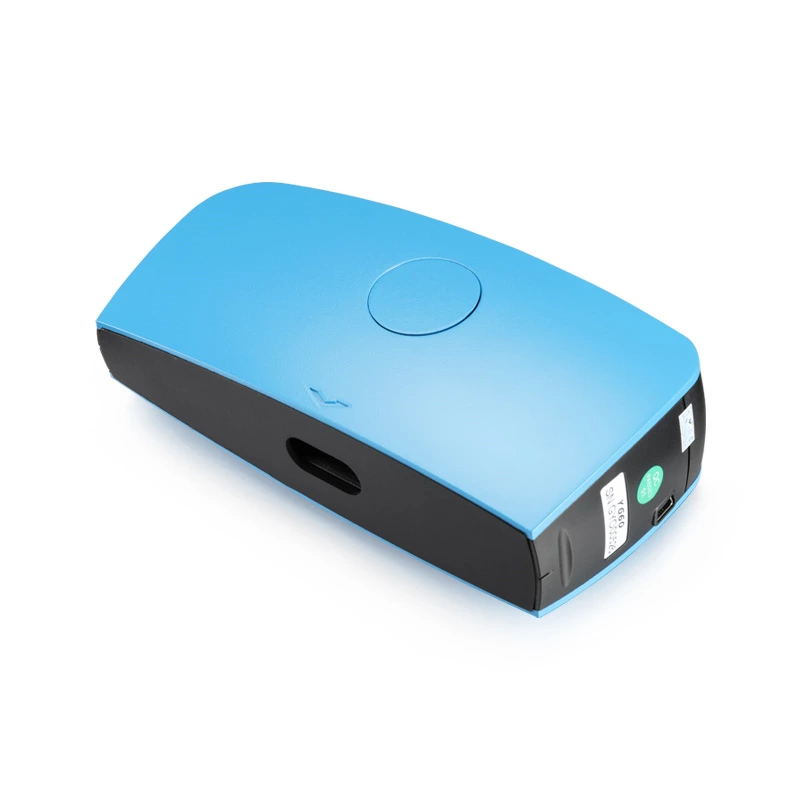

YG60 Gloss Meter

YG60

  • Measuring Angle:60°
  • Measuring Range:60°: 0-1000GU
  • Division Value:0.1GU
  • Measuring Modes:Basic mode; Statistic mode; Continuous mode; QC mode
  • Measuring Time:0.5S
  • Repeatability:0~100GU : ±0.2GU; 100~1000GU : ±0.2%GU
  • Accurate:Conform with JJG696 first grade requirements of gloss meter
Enquiry

YG60 60°Accurate Gloss Meter  is independently developed by Shenzhen 3nh Technology Co., Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the first  grade requirements of JJG696.YG series gloss meter also features with USB/RS-232 interface and Blutooth 2.1 dual mode.

Product Features

  • Elegant Design combined with aesthetics and ergonomics;
  • With auto-calibration function;
  • Meet the first grade requirements of JJG696;
  • Large storage to save over 35000 data;
  • Auto Power-off within optional 30-120 seconds;
  • Comply to ISO2813,ASTM523, GB/T9754;
  • With PC software for quality report, more extend functions;
  • With multi working modes and multi-functions for most customers’ requirements.

Application
Widely used in the filed of paints,coating,plastics,ink,rubber,printing,paper, glass, handware, ceramic, marble etc.

Parameters



Model YG60 60°Accurate Gloss Meter
Measuring Angle 60°
Measuring Range 60°: 0-1000GU
Division Value 0.1GU
Measuring Modes Basic mode; Statistic mode; Continuous mode; QC mode
Measuring Time 0.5S
Repeatability 0~100GU : ±0.2GU; 100~1000GU : ±0.2%GU
Accurate Conform with JJG696 first grade requirements of gloss meter
Auto Power-off Time Within 30s-120s
Long-time Calibration Automatically check and made the calibration
Language Chinese & English
Storage 35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000)
Display 2.3 inch white and black screen
Size 160*52*84mm
Weight About 300g
Power Supply 1pc dry-cell battery(can measure 10000 times) or use USB Charge
Interface USB & Bluetooth 2.1 version
PC Software GQC6 QC software can printing testing report and with more extended functions
Operation Temperature Range 0-40℃32-104° F
Storage Temperature Range -20-50℃-4-122° F
Humidity Range < 85% RH, without condensation
Standard Accessories USB cable, user manual, calibration plate, QC software
Optional Accessories Miniature printer,Bluetooth
Notification: the technical parameter is only for reference
