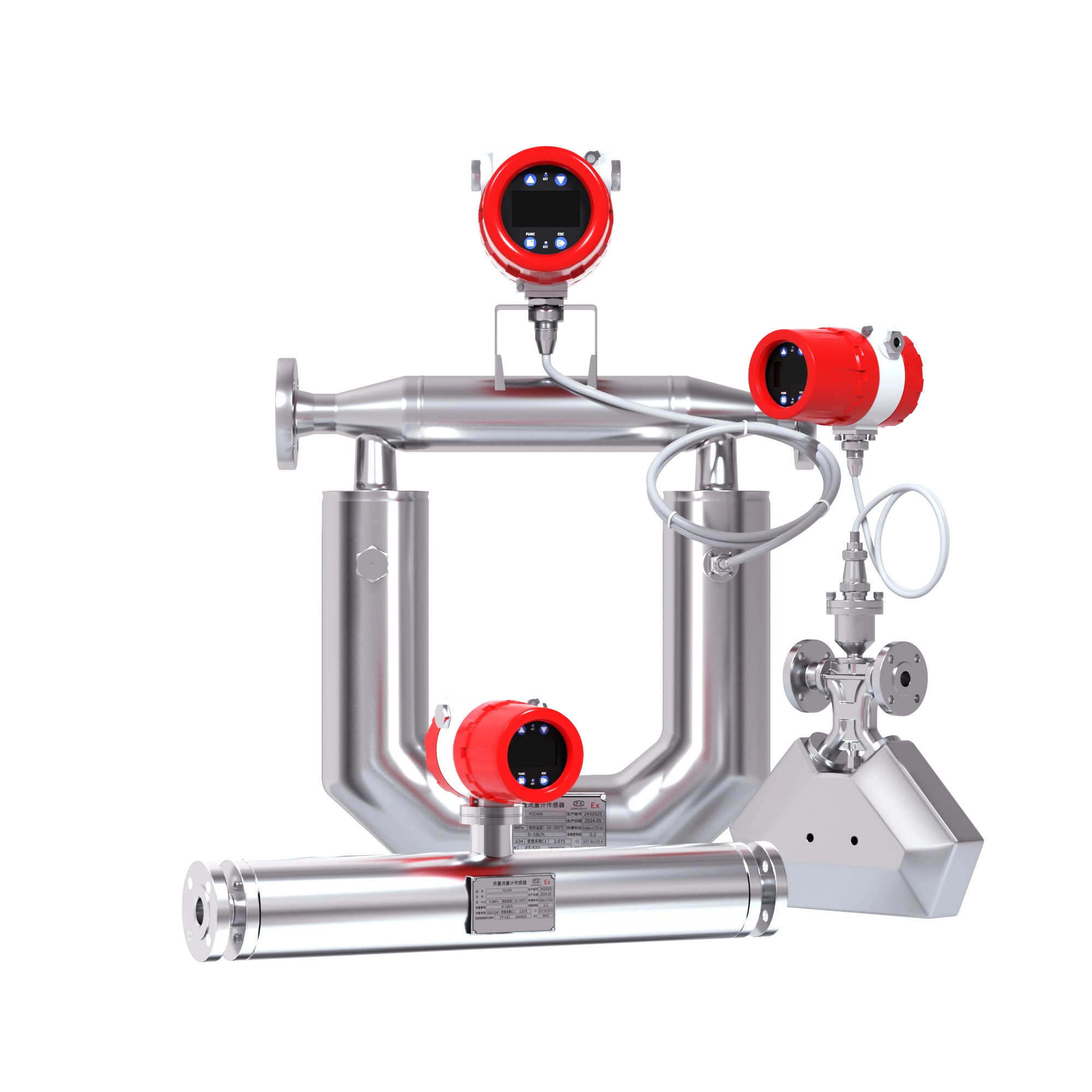

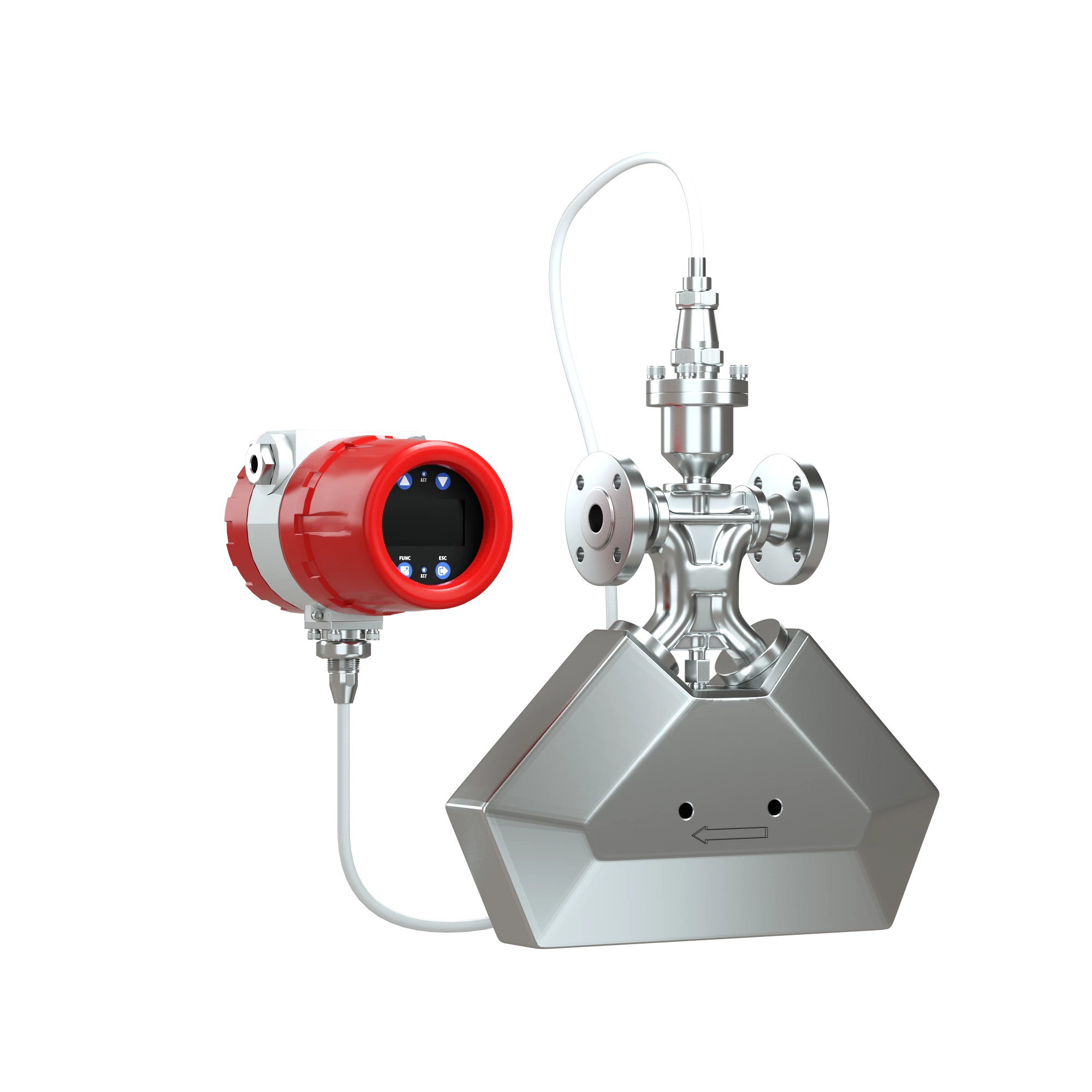

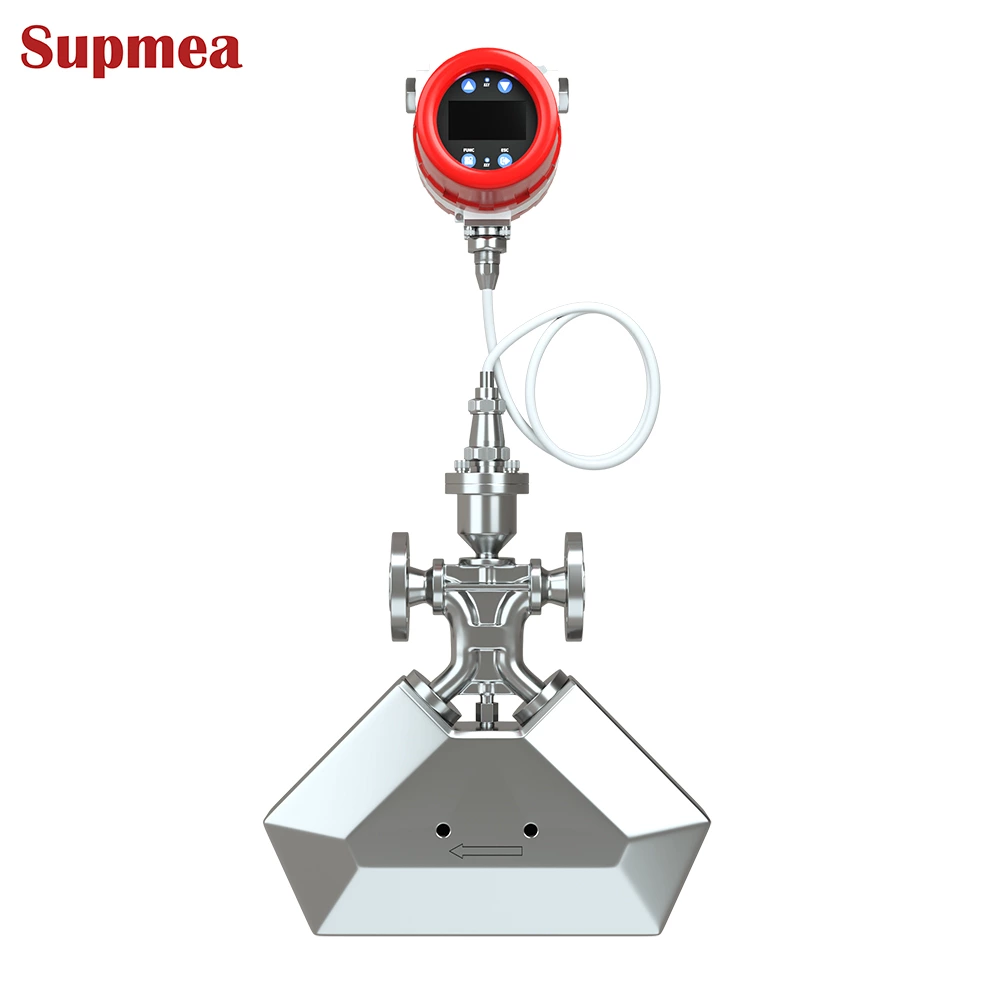

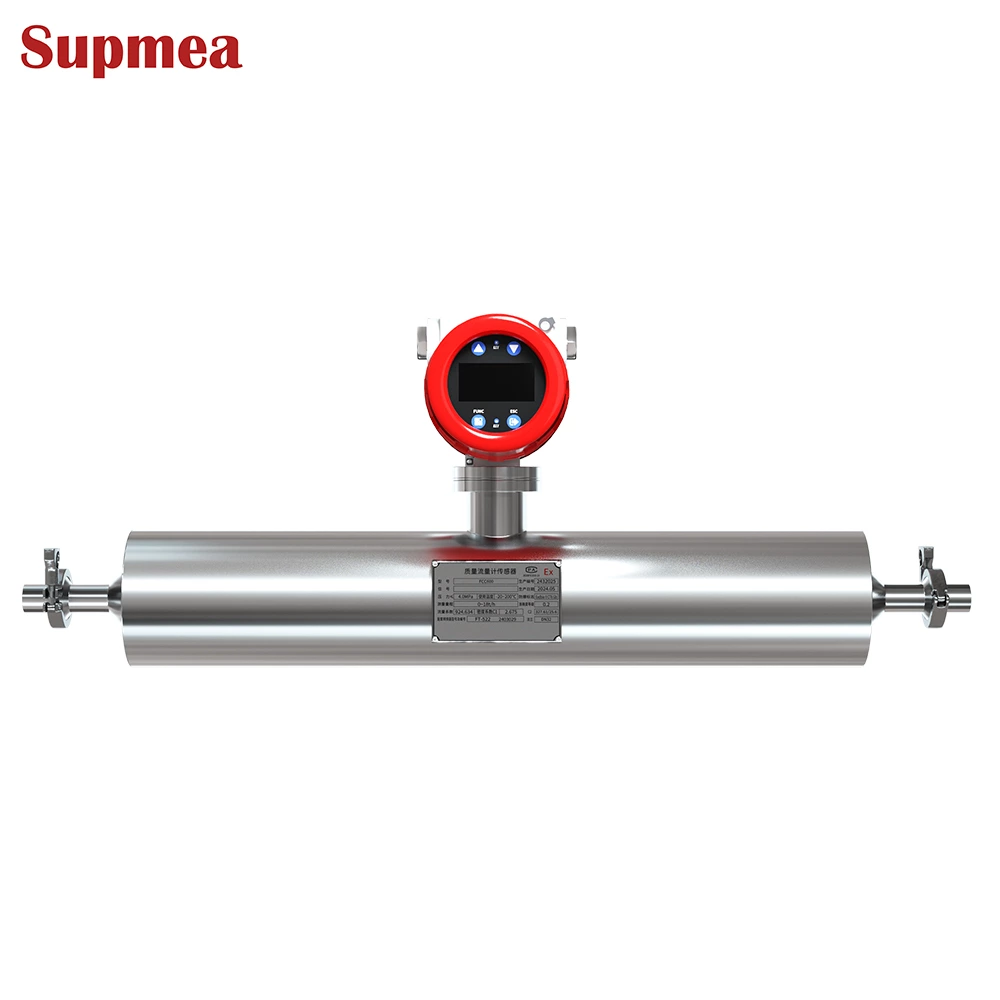

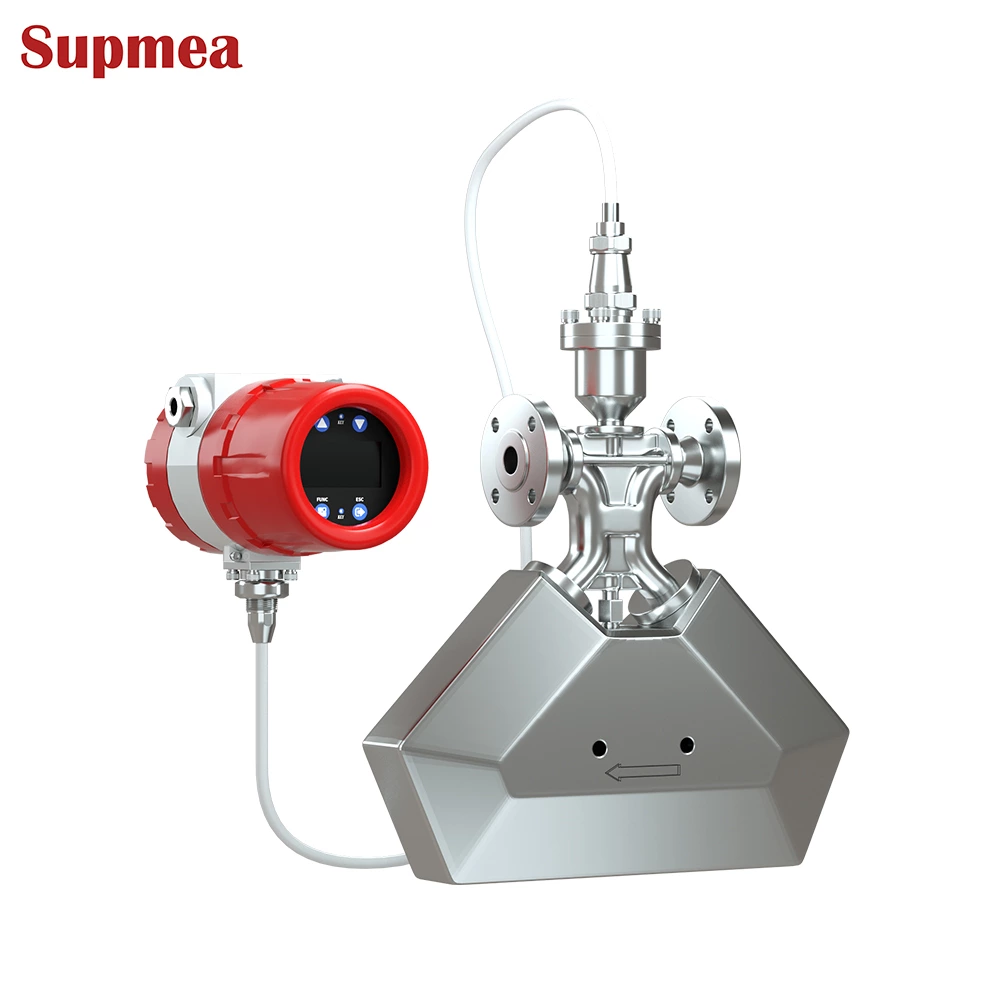

FCC-300 Coriolis Mass Flowmeter
FCC-300
- MODBUS RTU Communication Protocol
- Convenient Human-Machine Interface
- Temperature and Pressure Compensation
- Directly Measurable
- Small Amplitude of the Measuring Tube
FCC-300
Specification
| Diameter | U-type:DN20~DN150; Triangular:DN3~DN15; Straight Tube:DN8~DN80 |
| Measurand | Mass flow,density,temperature |
| Density accuracy | earth 0.002g/cm³ |
| Accuracy | 0.1%,0.15%,0.2% |
| Temperature | -40~+60℃ |
| Power consumption | <15W |
| Power supply | 220VAC ; 24VDC |
| Signal output | 4~20mA, RS485, HART |
| Ingress protection | IP67 |
| Density range | (0.3~3.000)g/cm³ |
| Repeatability | 1/2 of the measurement error |
| Medium temperature | Standard type: (-50～200)℃, (-20～200)℃; High temperature type: (-50～350)°C; Low-temperature type: (-200～200)°C |
| Process pressure | (0~4.0)MPa |
| Humidity | 35%~95% |
| Transmission output | (4～20) mA, output load (250～600) Ω |
