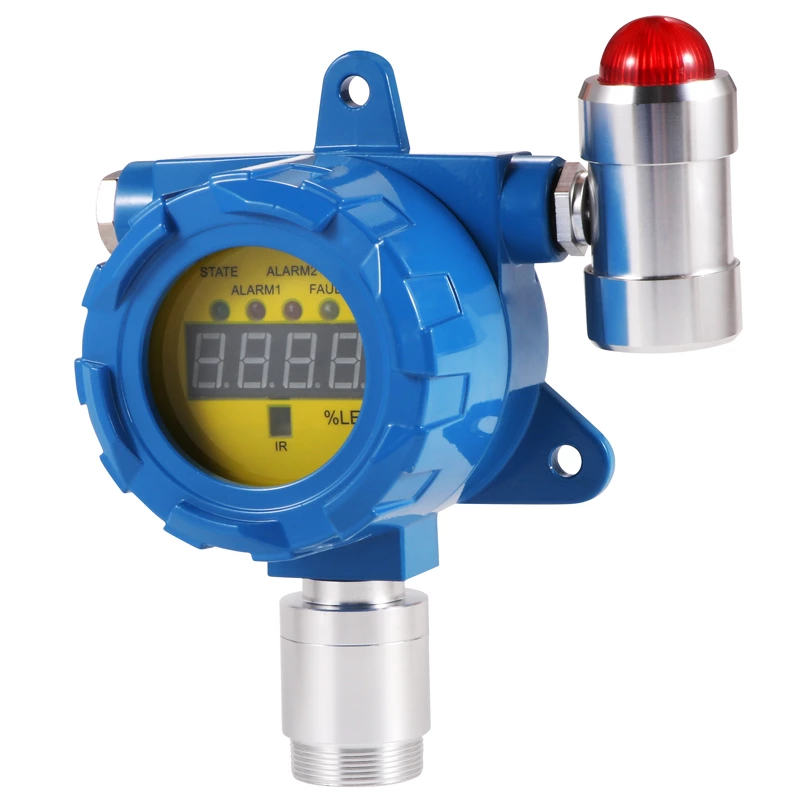

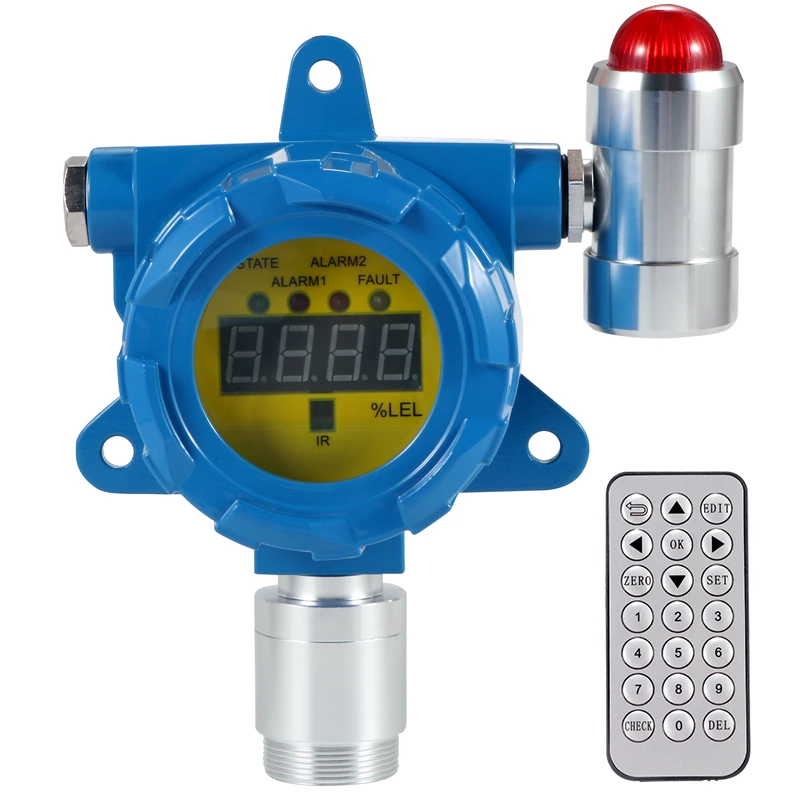

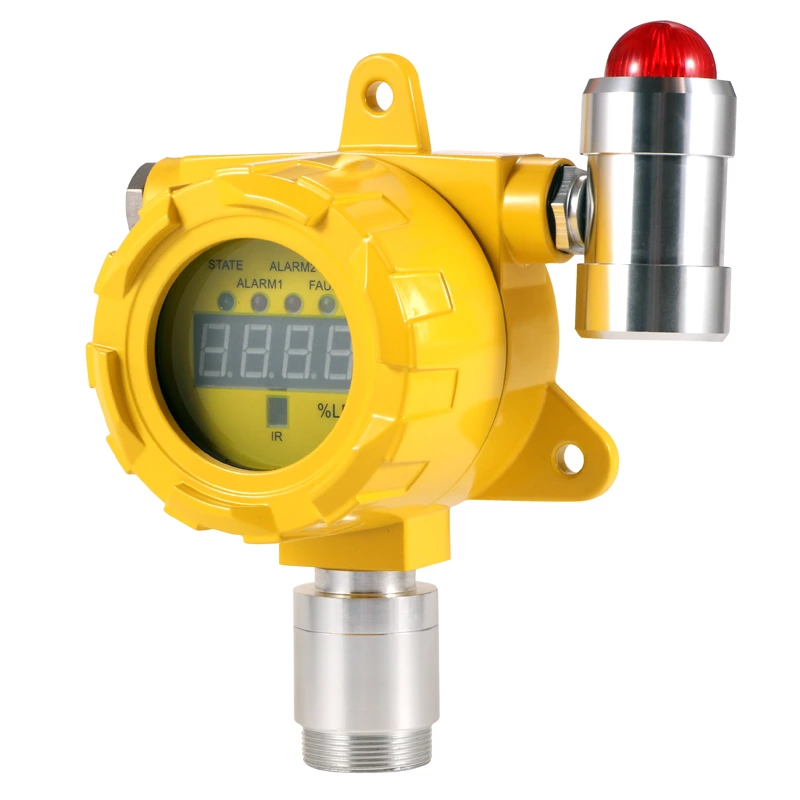

BH-60 Fixed Gas s Detector

Name: BH-60 Fixed Gas s Detector
SKU: BH-60
Rating: 4.8 (10 reviews)

BH-60

Power:DC24V±3.6V
Output:4-20mA,RS485
Consumption:≤2.5W
Wire:RVVP,3*1.5mm²
Temperature:10~55℃
Humidity:≤93% no dew
Gas:Combustible gas
Resolution:1%LEL
Range:0~100%LEL
Response Time:≤30s(T90)
Precision:±3%LEL

Enquiry

BH-60 fixed gas detector adopts advanced gas sensor, which can translate the gas concentration in the air to the digital signal output.
The detector working with gas controller can be used to detect gas in refinery, chemical plant, LPG station, boiler room, painting plant and
lother places with gas exists.

Parameters

Power	DC24V±3.6V	Output	4-20mA,RS485
Consumption	≤2.5W	Wire	RVVP,3*1.5mm²
Environment
Temperature	10~55℃	Humidity	≤93% no dew
Pressure	86~106kPa	Storage tem.	-20~55℃
Ex
Principle	Catalytic	Gas	Combustible gas
Method	Natural diffusion	Resolution	1%LEL
Range	0~100%LEL	Precision	±3%LEL
Response Time	≤30s(T90)	Working	Continuous
Sensor life	More than 1 year
Electrochemica
Principle	Electrochemical	Gas	Toxic gas
Method	Natural diffusion	Resolution	See attachment
Range	See attachment	Precision	±5%FS
Response Time	≤30s(T90)	Working	Continuous
Sensor life	More than 1 year
Alarm
Method	Sound(>70dB),light,relay output
Main load	AC:3A 250V AC; DC:3A 30V DC
Backup load	AC:0.3A 125VAC;DC:1A30VDC(Backup relay optional)
Low alarm	Ex 20%LEL See attached table for other gases
Dimensions
Size	200x178x98mm(L×WxH)
Material	Cast aluminum	Weight	About 2030g
Ex	Ex d lIC T6 Gb	Protection	IP65
Connection	M20*1.5(Internal thread) G1/2(Internal pipe thread)
Optional
Temperature	Range:-40~80°℃,Precision:±0.5°C(25°C)
Humidity	Range:0~100%RH, Precision:±3%RH(5~95%RH,25℃)
