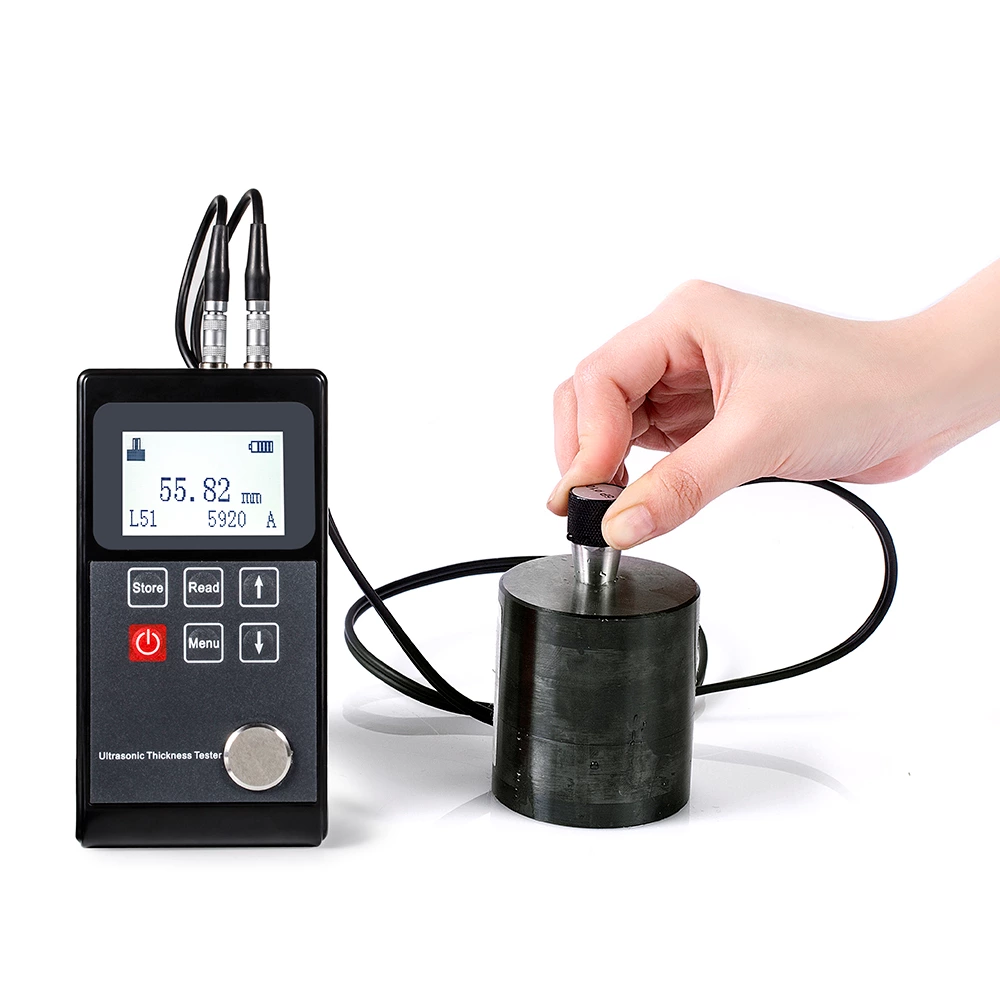

Leeb322 Ultrasonic Thickness Gauge
Leeb322
- Measuring range(mm)：0.7~300
- Shell：Plastic
- Operating Temperature：-10°C~60°C
- Dampness：20%~90%
- Dimensions(mm)：130×70×250
- Power supply：AAA alkaline batteries
- Weight (g)：200g
Leeb322
Function & Feature:
Measuring Materials
Adapted to all kinds of materials which are good conductor of ultrasonic wave, such as metals(steel, cast iron, aluminum, copper and etc), plastic, ceramics, composites, epoxies, glass and etc.
| Model | Leeb320 | Leeb321 | Leeb322 |
| Measuring range(mm) | 0.7~300 | ||
| Resolution(mm) | 0.1 | 0.01 | |
| Accuracy(mm) | ±(1%H+0.1) H refers to the thickness of testing piece | ±(0.5%H+0.01) H refers to the thickness of testing piece | |
| Velocity range(m/s) | 5920 | 1000~9999 | |
| Storage | No | 500 Groups | |
| Shell | Plastic | ||
| Operating Temperature | -10°C~60°C | ||
| Dampness | 20%~90% | ||
| Dimensions(mm) | 130×70×250 | ||
| Power supply | AAA alkaline batteries | ||
| Weight (g) | 200g | ||
