The LoRaWAN water meter integrates measurement,bidirectional communication and valve control etc, and it conforms to the LORaWAN standard protocol which is formulated by LoRa Alliance. The system contains LoRaWAN water meter, LoRaWAN gateway, LoRaWAN water meter reading charging system (management software system)

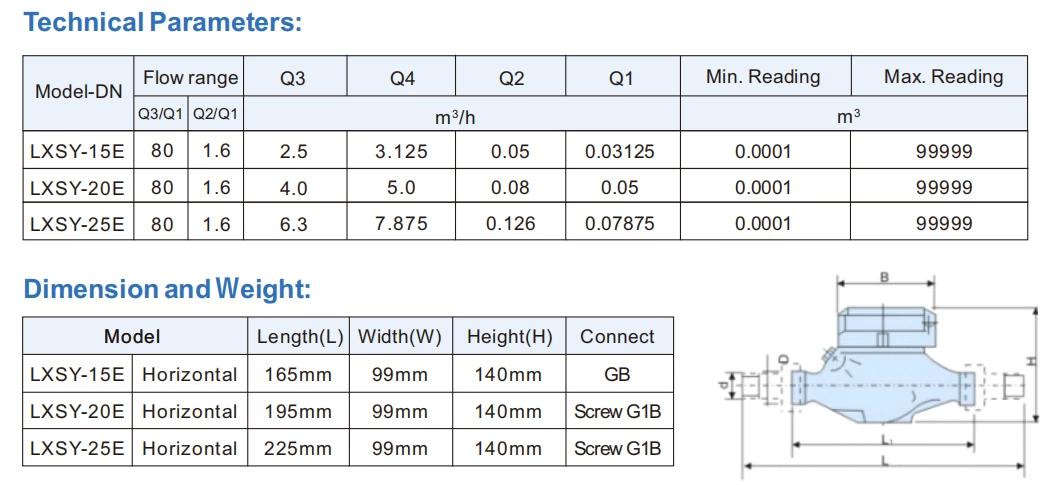

Parameters
- Size:DN15-DN300
- Software:free for clients
- Body:Brass(with valve),iron(without valve) or plastic with valve
- Max work pressure:PN16.
- Protection class:IP68
- Protocol: LoRAWAN
- Frequency: 433 to 923 MHz
- Battery: ER18505M @ 3600mAh can last up to 8-10 years.
- Pressure loss:≤0.063Mpa
- Water temperature:T30,T90
- Standards:ISO4064.
- Certificate:MID
- Working mode: Class A
- Composition:LoRaWAN water meter,Gateway,Network servrt.
