Name: NS810 Portable Spectrophotomer
SKU: NS810
Rating: 4.8 (10 reviews)

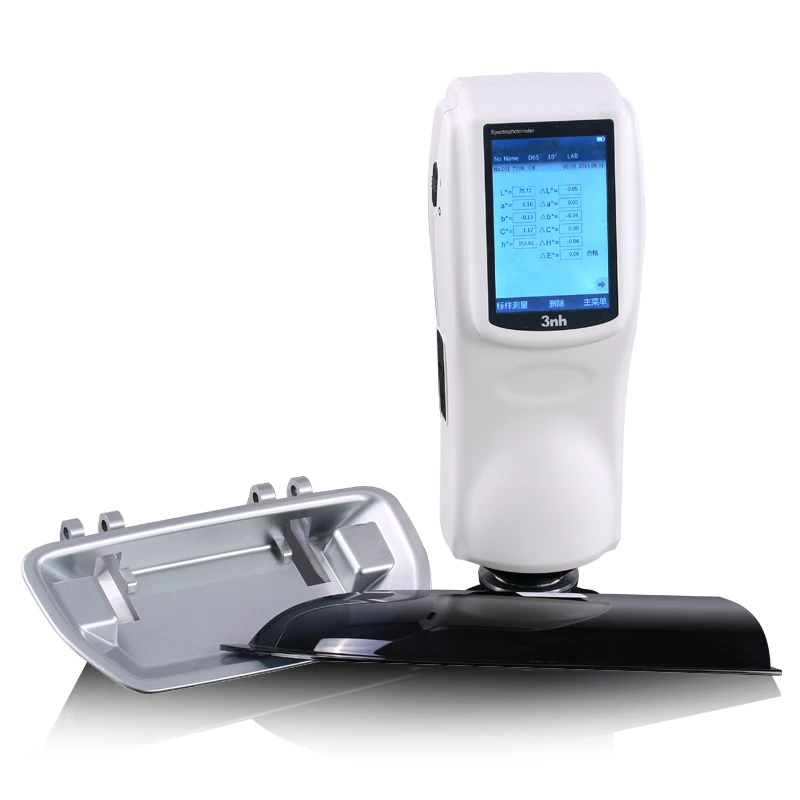

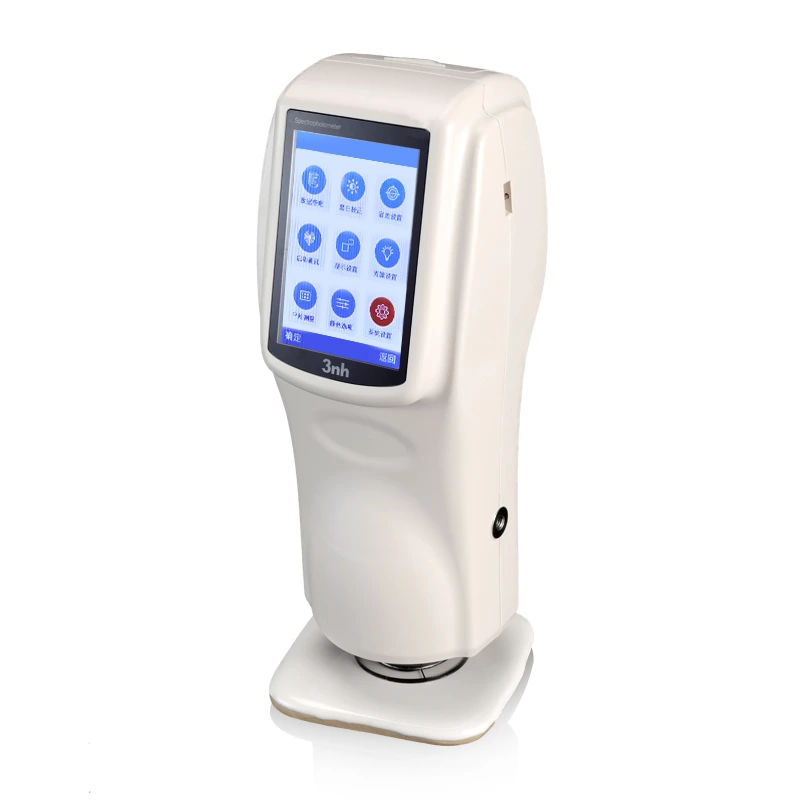

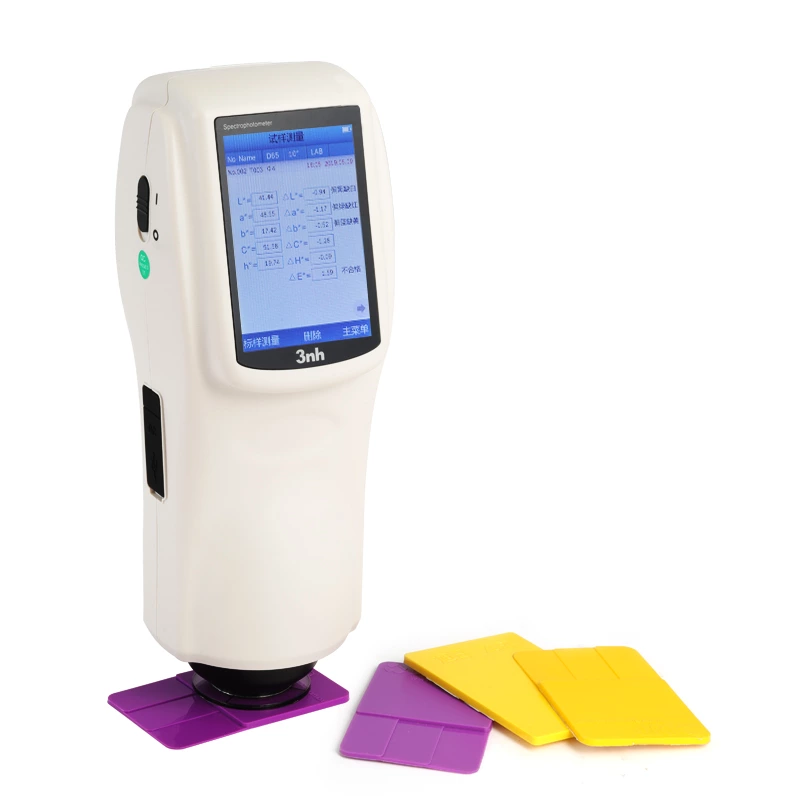

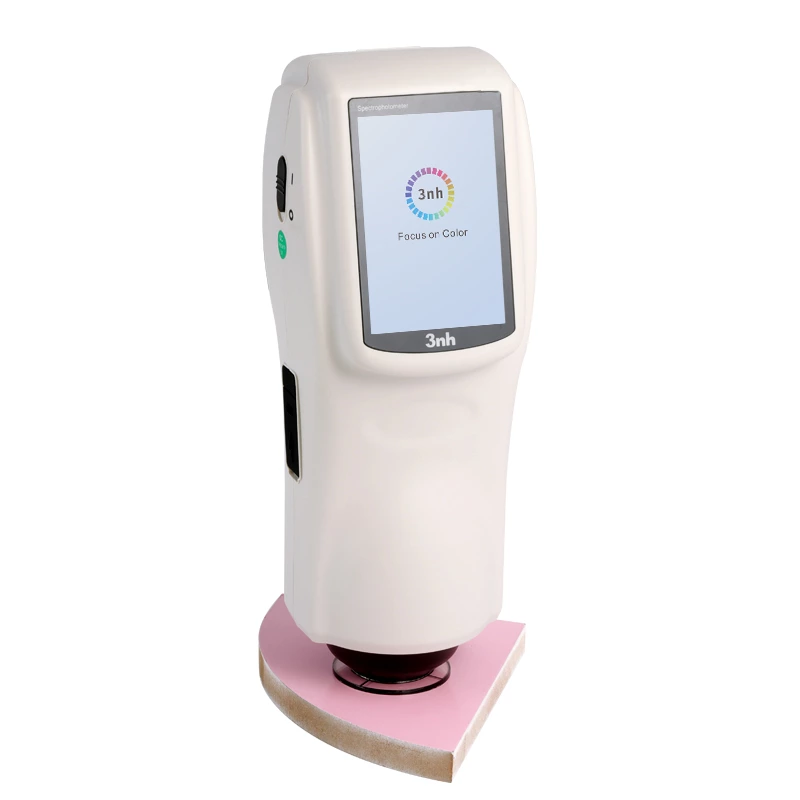

NS810 Portable Spectrophotomer

NS810

Light Source:Combined LED sources
Sensor:Silicon photodiode array
Wavelength range:400~700nm
Wavelength pitch:10nm
Reflectance range:0~100%
Measuring Aperture:Φ8mm
Observer:2°/10°

NS810 spectrophotometer is developed by 3nh with independent intellectual property rights. It features with stable performance, precise measurement and powerful functions in the leading position of the same industry.

NS810 spectrophotometer is widely used in plastic, electronic, painting, coating, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It can measure reflectance spectrum and other color index precisely. NS810 spectrophotometer not only can help to perform color matching and color management studies, but also can control product quality management accurately. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions

Parameters

Model	NS810
Illumination/observation system	d/8 (diffused illumination, 8-degree viewing angle) Conforms to CIE No.15, GB/T 3978.
Integrating sphere Size	Φ58mm
Light Source	Combined LED sources
Sensor	Silicon photodiode array
Wavelength range	400~700nm
Wavelength pitch	10nm
Reflectance range	0~100%
Measuring Aperture	Φ8mm
Color Space	CIE LAB, XYZ, Yxy, LCh, CIE LUV，LAB&WI&YI
Color difference Formula	ΔEab,ΔEuv,ΔE94,ΔEcmc(2:1),ΔEcmc(1:1),ΔE00
Other Chromaticity Data	WI(ASTM E313，CIE/ISO,AATCC, Hunter)， YI(ASTM D1925，ASTM 313), TI(ASTM E313，CIE/ISO), Metamerism Index (Mt), Strength Color Stain, Color Fastness
Observer	2°/10°
Illuminant	D65，A,C,D50，D55，D75，F2，F6，F7，F8，F10，F11,F12
Display Data	Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation, color index setting(ΔE94, ΔEcmc, ΔE2000), tolerance prompt, reverse prompt, time setting, language setting, restore factory setting
Measurement Time	1.2s
Repeatability	Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%) Colorimetric Value: Standard deviation within DeltaE*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)
Inter Instrument Agreement	Within DeltaE*ab 0.2 (Average for 12 BCRA Series II color tiles)
Dimension	LWH=9077230mm
Weight	600g
Battery	Li-ion battery. 5000 times within 8 hours.
Lamp Life	5 years, more than 1.6 million measurements
Display Screen	TFT 3.5inch, Capacitive Touch Screen
Interface	USB/RS-232
Data Memory	1000 Standards, 15000 Samples
Operating Temperature	0~40℃（32~104°F）
Storage temperature	-20~50℃（-4~122°F）
Standard Accessory	Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap
Optional Accessory	Micro Printer, Powder Test Box
