Name: DV Color Screen Viscometer
SKU: DV
Rating: 4.8 (0 reviews)

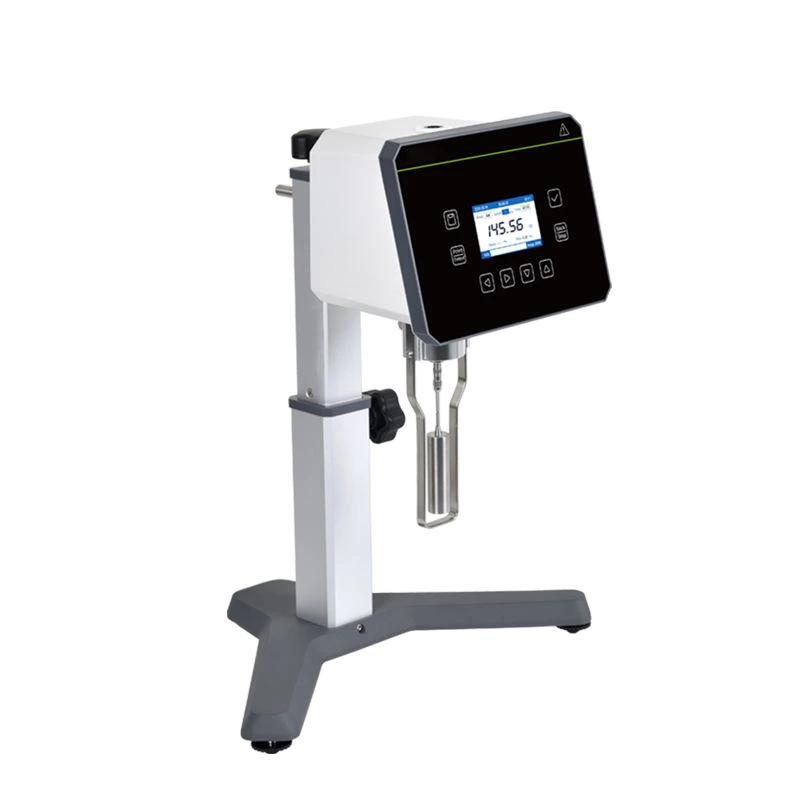

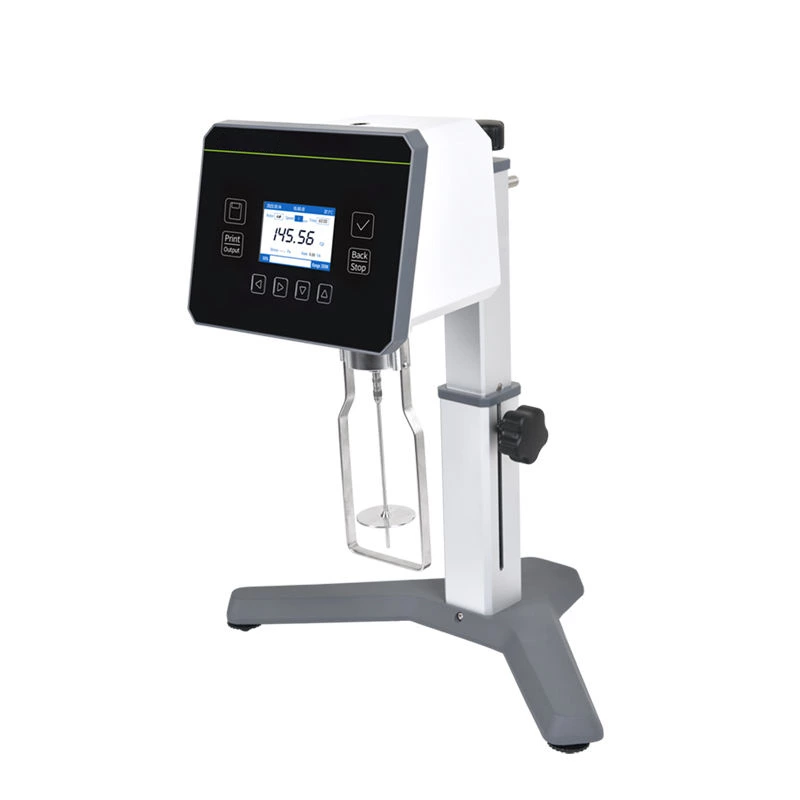

DV Color Screen Viscometer

Voltage:AC110-240V
Frequency:50-60
Display Mode:TFT color LCD display
Measurement Accuracy:±1%(Newtonian liquid)
Repeatability Error:±0.5%(Newtonian liquid)
Temperature Measurement Range:0-60℃
Temperature Measurement Accuracy:±0.1

DV series viscometer adopts more advanced mechanical design technology, manufacturing process and microcomputer control technology, and the data collection is accurate. The display adopts a high-resolution TFT display screen, with clear data display and more comprehensive functions. This instrument has the characteristics of high measurement sensitivity, reliable test results, easy use and operation, and beautiful appearance.

Features

3.0-inch TFT color LCD screen, display parameters more intuitively, easy to use and operate, and beautiful in appearance
High-precision stepper motor, precise speed control, internal synchronous damping system,low noise, maintenance-free, and smooth operation;
The measurable viscosity measurement range is from 6 to 3.2×10^8 mPa·s, covering the viscosity of most samples
It has data storage function and can store 10240 measurement results

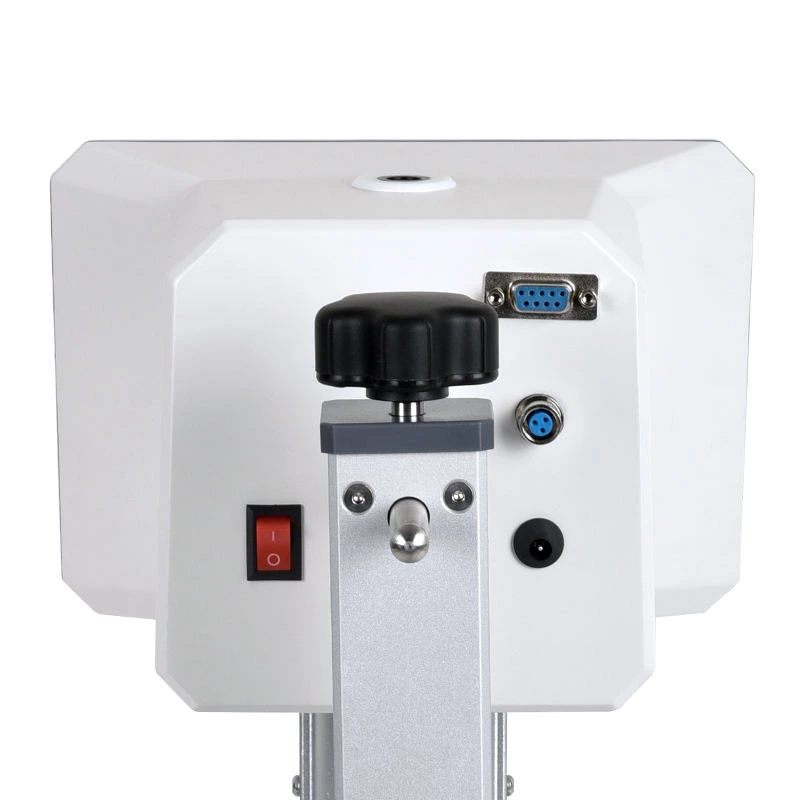

Equipped with RS232 interface and printing function, which can be connected to printers and computer output, diversifying to meet the needs of the public
It has a curve function that can display and view the viscosity-temperature time measurement curve
Equipped with a temperature sensor interface that can monitor sample temperature in real time
It has timing measurement function and can be turned on or off according to needs;
Continuously variable speed change/fixed speed change mode is optional;
Chinese and English operating systems, which can be switched randomly. The theme color adjustment function allows you to choose the interface style according to user needs;

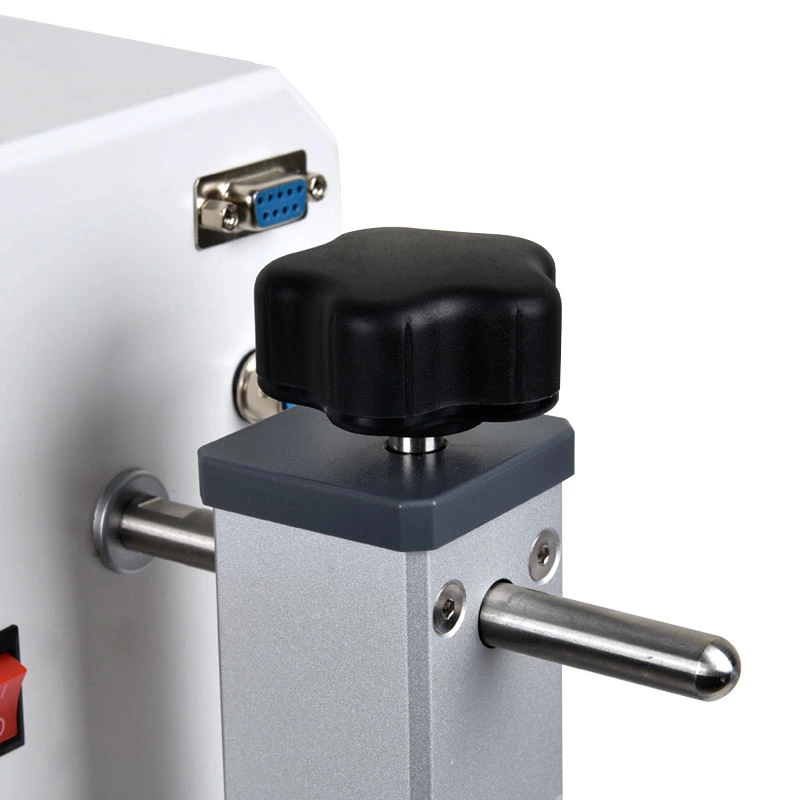

The lifting column structure of the aluminum shell supports the machine head with higher stability. The machine head and spindle of the viscometer move up and down in the sample more smoothly, and the maximum lifting stroke is locked.

Parameters

Model	LCH-DV-LV	LCH-DV-RV	LCH-DV-HA	LCH-DV-HB
Voltage/V	AC110-240
Frequency/Hz	50-60
Display Mode	TFT color LCD display
Measuring Range/cp(mPa.s)	6-6×10^6	40-4×10^7	80-8×10^7	320-3.2×10^8
Measurement Accuracy/%	±1(Newtonian liquid)
Repeatability Error/%	±0.5(Newtonian liquid)
Spindle Specification	pindle No. 1-4 (Optional No.0 spindle and small sample spindle)		Spindle No. R2-R7 (Optional No.0 spindle and small sample spindle )
Spindle Speed/rpm	0.1-200 Stepless/fixed speed change
Temperature Measurement Range/℃	0-60
Temperature Measurement Accuracy/ ℃	±0.1
Net Weight/Kg	6.6
Product Dimensions/mm	370325500
