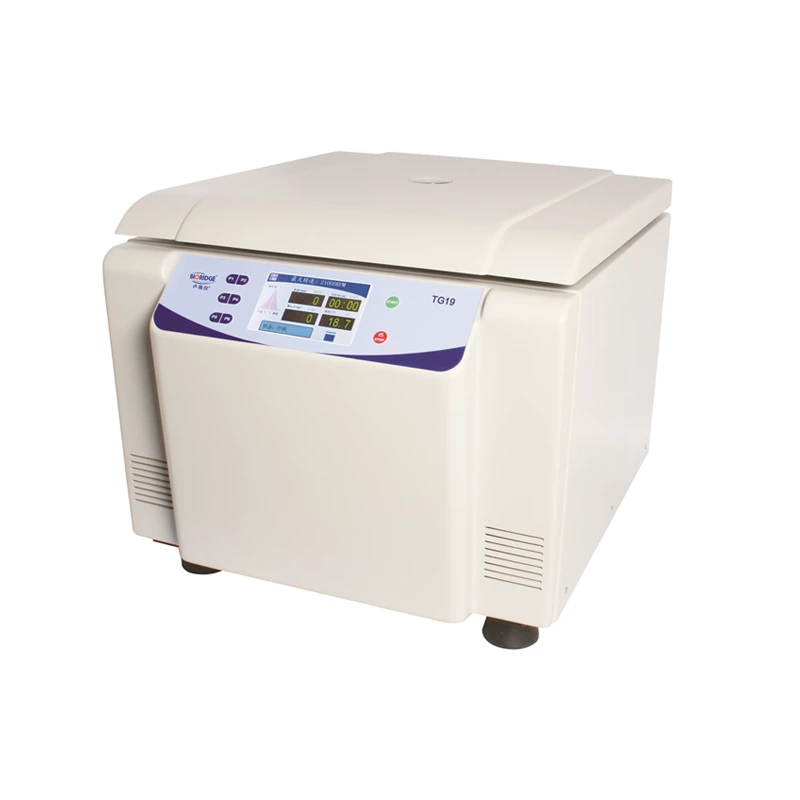

TG19/TD6

Speed accuracy ：± 10r/min
Time setting ：1s~99h 59min59s
Power supply ：AC110V/AC220V, 50Hz-60Hz
Consumption ：1.2kw

Enquiry

Technical performance

• The max speed is 19000rpm, and the largest capacity of swing rotor is 4X750ml.

• It has micro-computer control, electronic lock and AC variable-conversion motor which delivers high torque.

• LCD touch screen make visualized operation conveniently.

• Automatic rotor recognition make safety for multiple rotors choice. (Option)

• Up to 6 user programs storage in the surface is selected directly.

• It has self-locking, over-speed detection, over-temperature detection, imbalance detection that is automatic alarm device.

• It has 9 levels acceleration and 10 levels deceleration to be setting according to the diﬀerent requirement. Slow down freely is available.

• Silastic sealed ring comfort to GMP, US FDA certiﬁcated.

Specification

Model	TG19	TD6
Max speed	19000r/min	6000r/min
Max RCF	26307xg	5420xg
Max capacity	4x750ml
Speed accuracy	±10r/min
Time setting	1s~99h 59min59s
Noise	<65db(A)
Power supply	AC110V/AC220V, 50Hz-60Hz
Consumption	1.2kw
Dimension(L×W×H)	495mm×620mm×445mm
Packing size(L×W×H)	730mm×670mm×570mm
Net weight (No rotor)	70kg
