K-600M pumping compound multi-parameter detector is an intelligent multi-parameter detector designed with advanced integrated circuit technology, standard intelligent technical level design technology and proprietary digital-analog hybrid communication technology.
The detector adopts a built-in pump-suction sampling method for gas sampling,and the sensitive element adopts a high-quality gas sensor for gas detection. It has good sensitivity and excellent repeatability, easy to use and maintain, and greatly meets the safety of the industrial site. For high reliability requirements,the shell is made of high-strength engineering plastics and composite non-slip rubber, which has high strength, good hand feling, and is waterproof, dustproof and explosion-proof. It can be widely used in petroleum, chemical, environmental protection, smelting, refining, biochemical medicine, agriculture,scientific research, universities and other industries and fields.
Features
★ Using a new GUI design scheme, the interface display is more comprehensive and the operation is more user-friendly.
★ The integrated built-in pumping gas detection method can detect one or six gas types at the same time.
★ Imported miniature vacuum suction pump is adopted, with stable flow, long life and low noise.

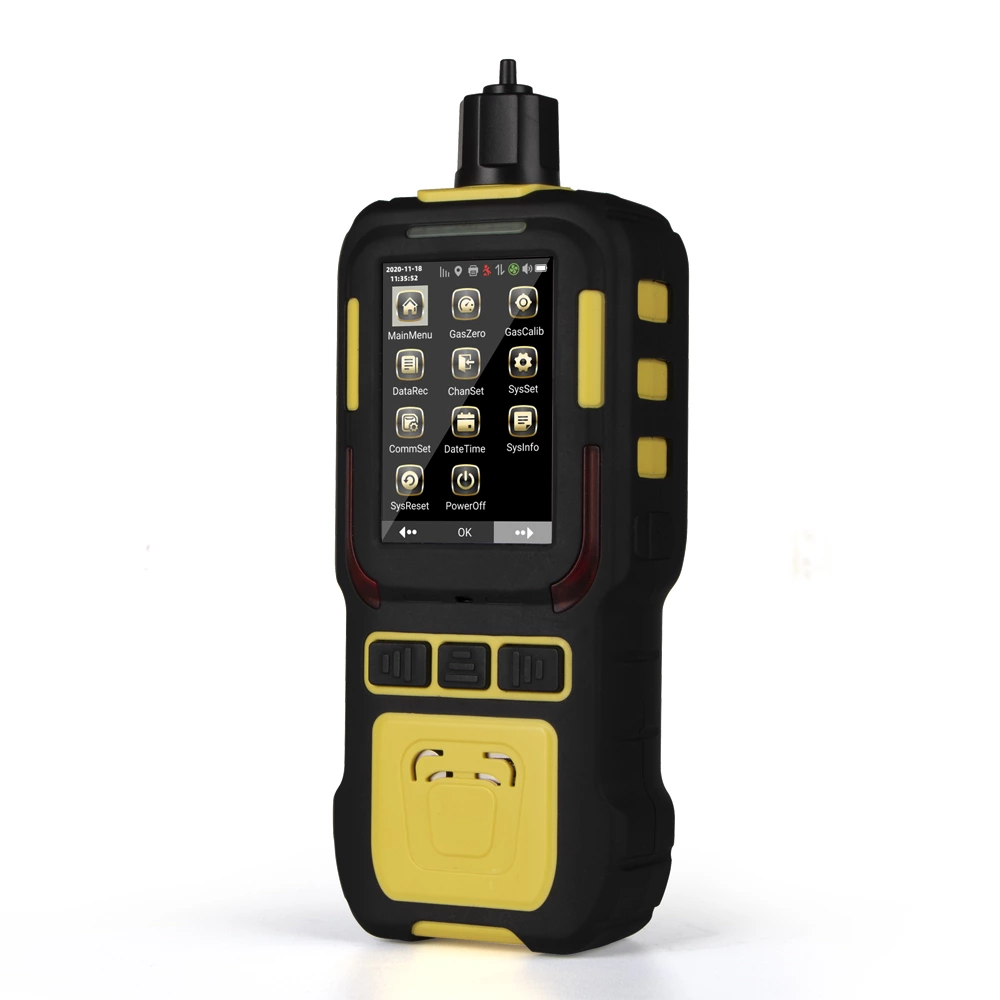

★ It adopts a 3.5-inch high-definition color screen with a wide viewing angle of 120 degrees.
★ The three-button operation is simple and intuitive.
★ Support a variety of extended functions to meet users' different product applications.
Parameters
| Target Gas |
Range |
Low alarm |
High alarm |
Resolution |
| EX |
(0-100)%LEL |
20%LEL |
50%LEL |
1%LEL |
| H2S |
(0-100)ppm |
10ppm |
35ppm |
1ppm |
| CO |
(0-1000)ppm |
50ppm |
150ppm |
1ppm |
| O2 |
(0-30)%vol |
19.5%vol |
23.5%vol |
0.1%vol |
| CO2 |
(0~5)%vol |
1.00%vol |
2.00%vol |
0.01%vol |
| NO2 |
(0~20)ppm |
5.0ppm |
10.0ppm |
0.1ppm |
Please contact the company for other gas combinations
| Response Time |
T90<30s |
| Working Environment |
Temp:-10C~50°C; Humidity <95%RH |
| Voltage |
DC3.7V (Lithium battery capacity 40o0mAh) |
| Display Mode |
3.5 Inch color LCD Screen, Resolution 320*480 |
| Alarm Type |
T sound W, A light/S, T vibrating EL, alarm display four alarms, support for fall alarm, pump failure alarm |
| Pumping Type |
Pump-suction type,6-speed adjustable pump flow,range 300-800mL/min |
| Gas Detection |
Support 1~6 types gas detection |
| Data Communication |
Support USB connection to the host computer to view data |
| Tf Memory Card |
Support extended external TF memory card, storage file format .csv; support USB data import (optional) |
| Blue Tooth |
Support Bluetooth communication, view data and parameter settings through the mobile APP |
