Aerosols are collections of liquid or solid particles that remain suspended in a gas environment for extended periods and can be observed or measured.
In the fields of air detection and monitoring, such as the calibration of aerosol measurement instruments, the study of indoor particulate movement characteristics, the investigation of respiratory particle movement patterns, and the testing of air filter efficiency, stable and reproducible monodisperse or polydisperse aerosol generators are essential.
The SX-Q5 is a cold generation type of multi-dispersed aerosol generator.Based on the LasKin principle nozzle technology, under the action of compressed air, the aerosol raw solution is atomized and foamed by the nozzle. Large droplets are blocked back to the liquid surface by the baffle, while smaller droplets escape with the airflow, forming an aerosol with particle sizes below 1um.
SX-Q6 is a cold generation type multi-dispersed aerosol generator.Based on the LasKin principle nozzle technology, it features a small built-in compressed air pump to generate compressed air. The aerosol solution isatomized and foamed through the nozzle. Large droplets are directed back to the liquid surface by baffles, while smaller droplets escape with the airflow,forming an aerosol with particle sizes below 1um.
All the above products can produce cold occurrence aerosol, which can make the aerosol generator small and light in size, suitable for medical device inspection institutes, centers for disease control and prevention, hospitals, pharma ceutical enterprises, high-efficiency filter manufacturers and other leakage detection of clean rooms and high-efficiency filters.
Function
- Air filtration equipment testing
- Calibration and detection of aerosol measuring device
- Basic research on aerosols
- Study of inhalation toxicity
- Flow field tracing
- Large wind tunnel studies

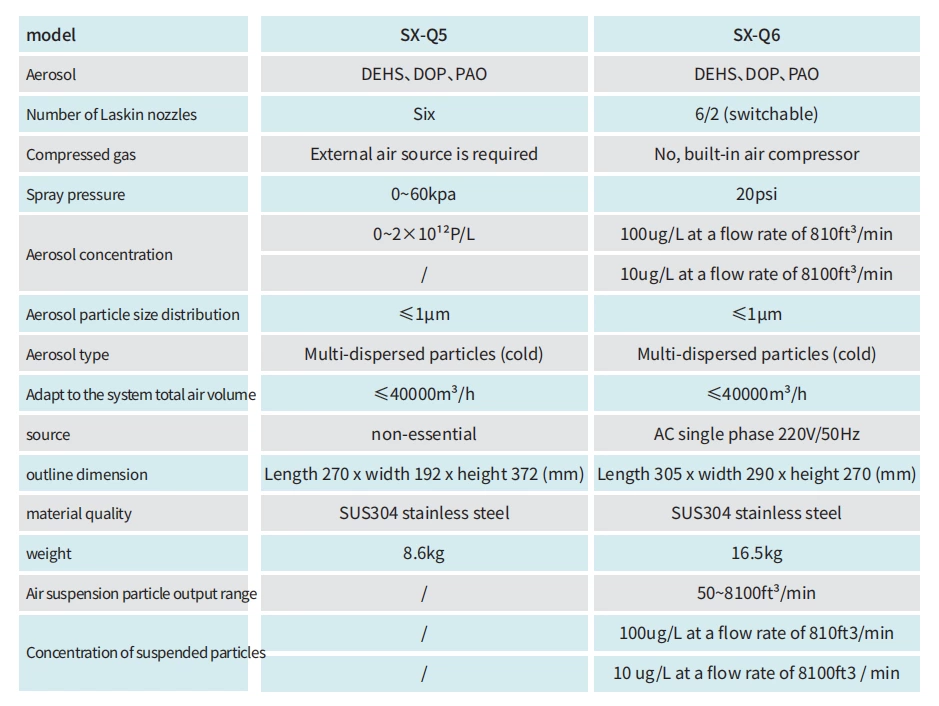

Parameters
