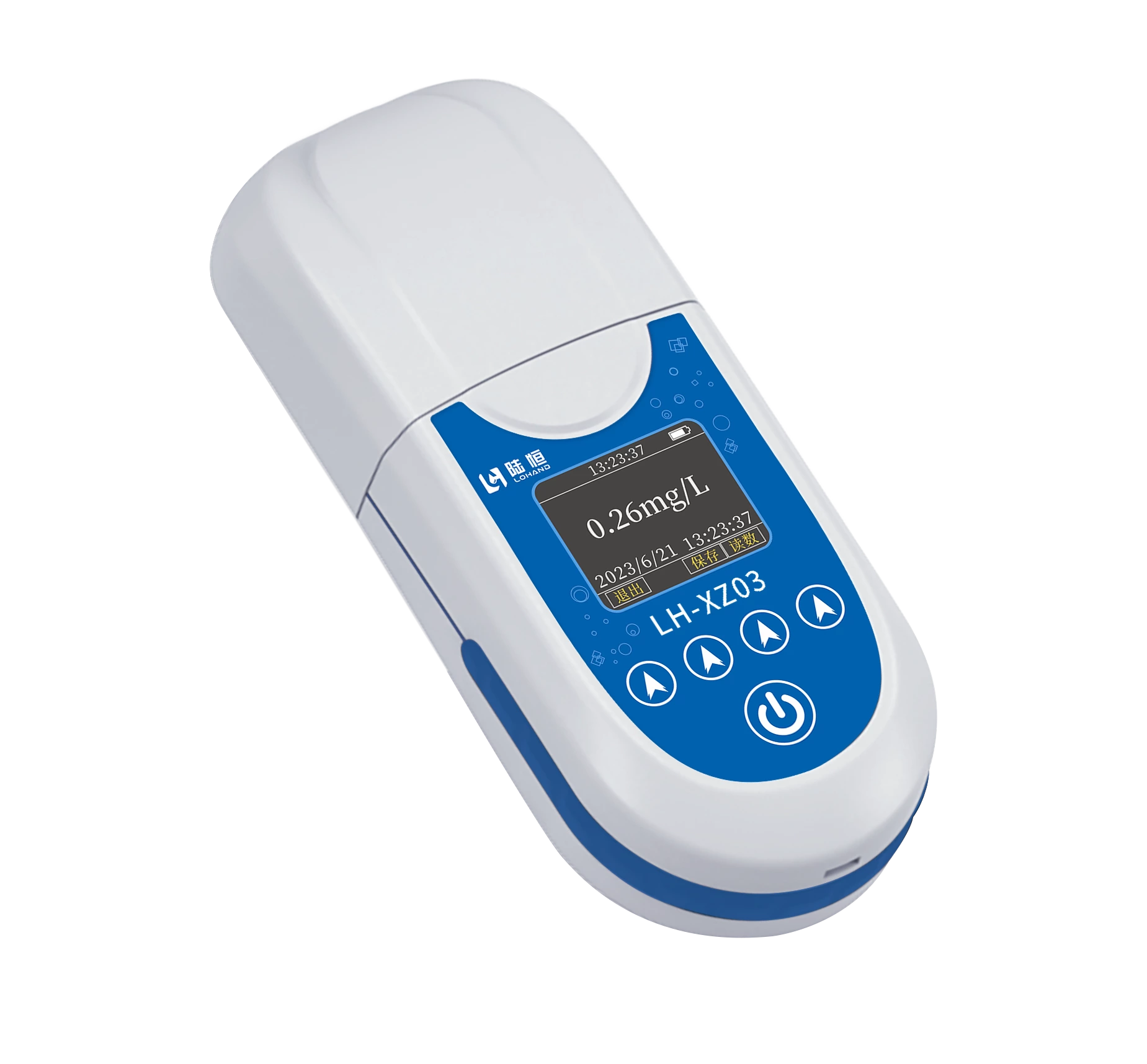

LH-XZ03
This instrument combines scattered light and transmitted light methods, employing a near-infrared light source to eliminate chromatic interference. Test results are comparable to ISO 7027 and GB 11901-89 standards. The instrument features two detectors: a 90° detector (receives transmitted light) and a 180° detector (receives scattered light). The ratio of scattered to transmitted light intensity is proportional to the sample's turbidity. This ratio can be used to calculate the sample's turbidity and suspended solids concentration. A built-in filter eliminates background light interference. A high-precision optical path ensures accurate and stable measurements. A high-performance microprocessor provides powerful data processing capabilities. Easy to use, with on-screen text prompts for operation guidance. IP65 protection rating ensures compact size, lightweight, dustproof, and shockproof.
Applications
The LH-XZ03 suspended solids turbidity meter is primarily used in environmental protection, tap water, health and disease control, government and university programs, municipal water supply, industrial water, pharmaceuticals, and wastewater treatment.
Parameters
| Parameters | Details |
| Range | 0-1000mg/L |
| Indication Error | ±0.3mg/L or ±8% NTU |
| Repeatability | <10mg/L: ≤±0.1mg/L,>10mg/L: <±1% NTU |
| Calibration Method | 1-Point Calibration |
| Zero Drift | ≤±0.3%FS/30 minutes |
| Operating Temperature | 5-40°C |
| Storage Temperature | -10-55°C |
| Humidity | 0-80%RH |
| Power Supply | Lithium Battery |
| IP Rating | IP65 |
| Dimensions | 170x72x44mm |
| Weight | 290g |
