TE20/TE50

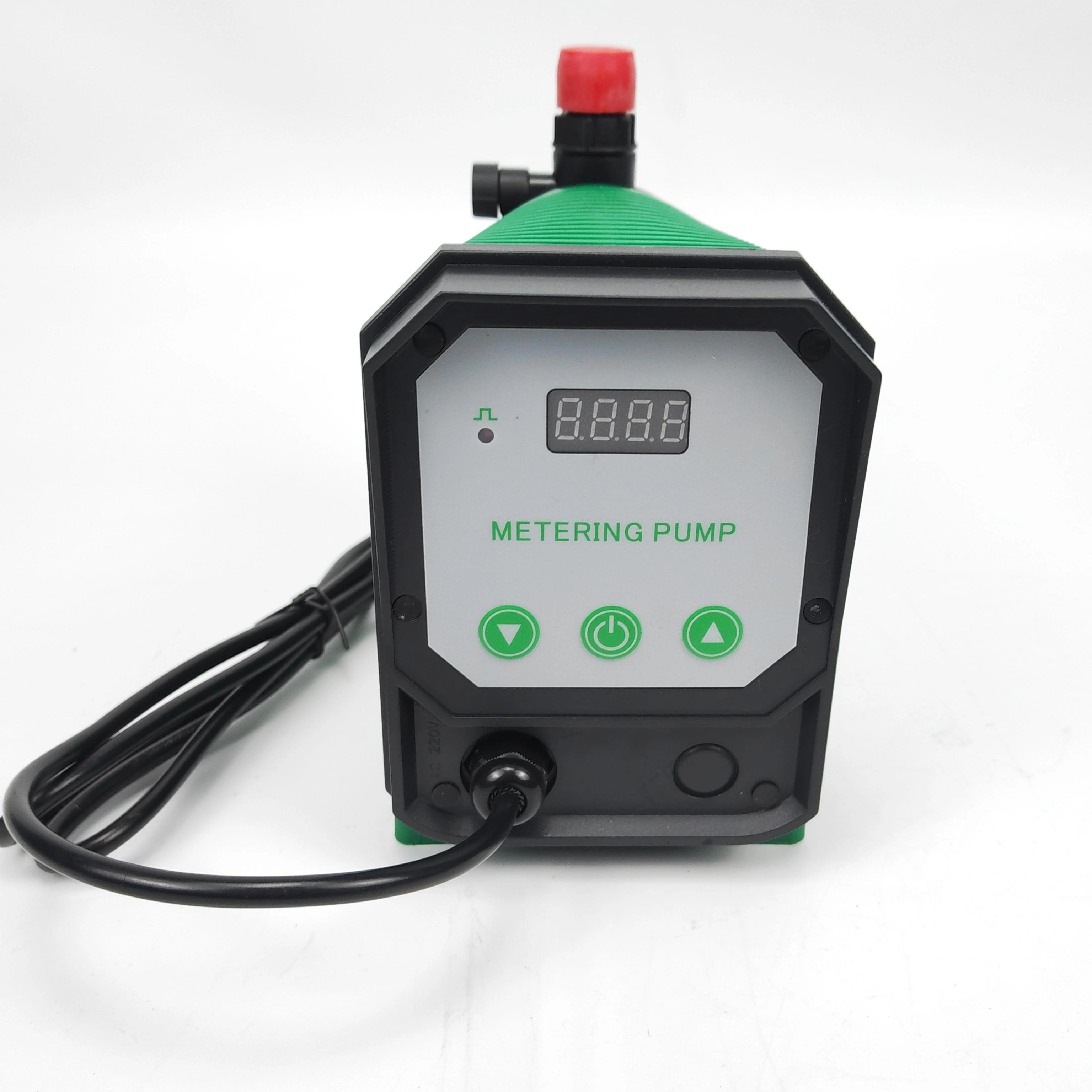

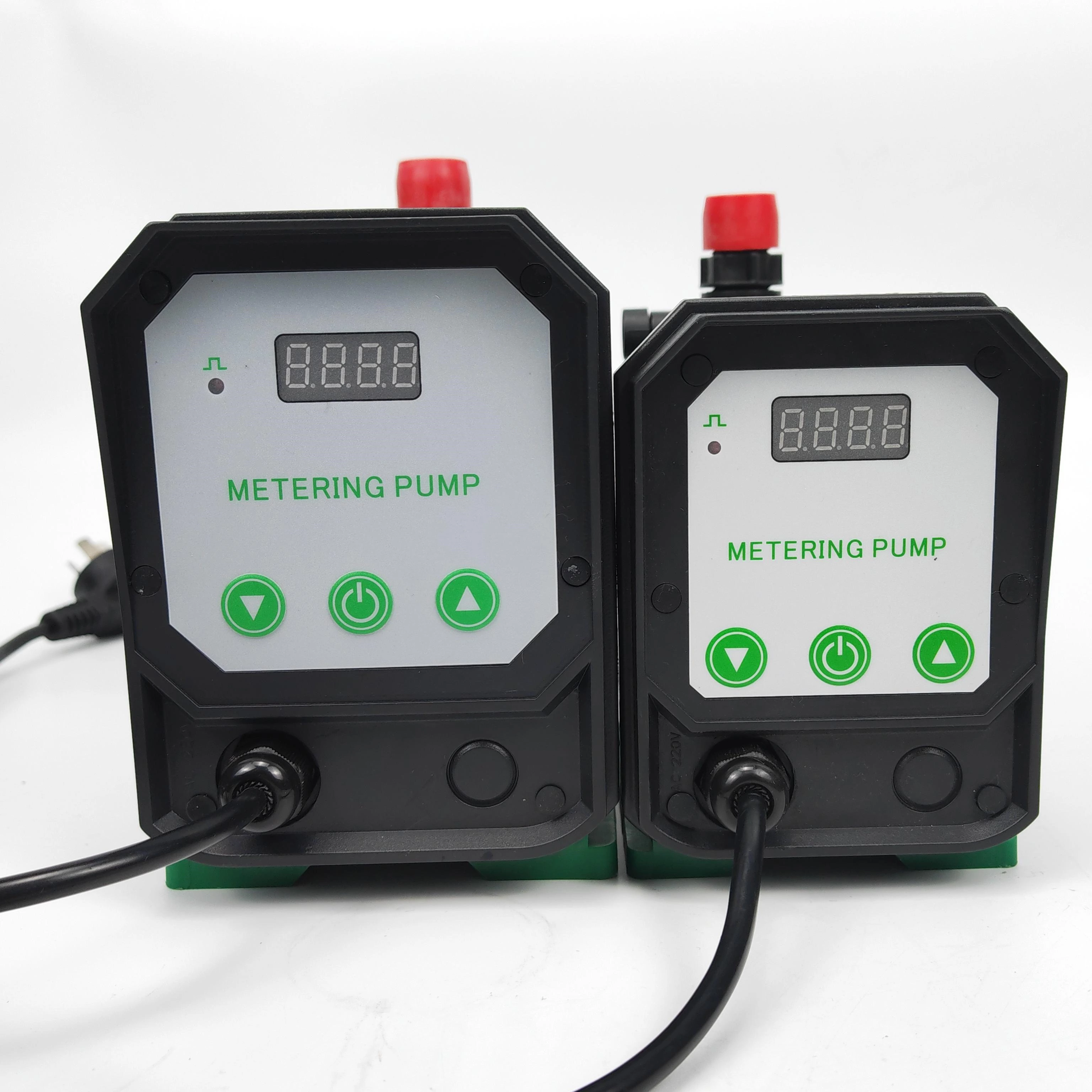

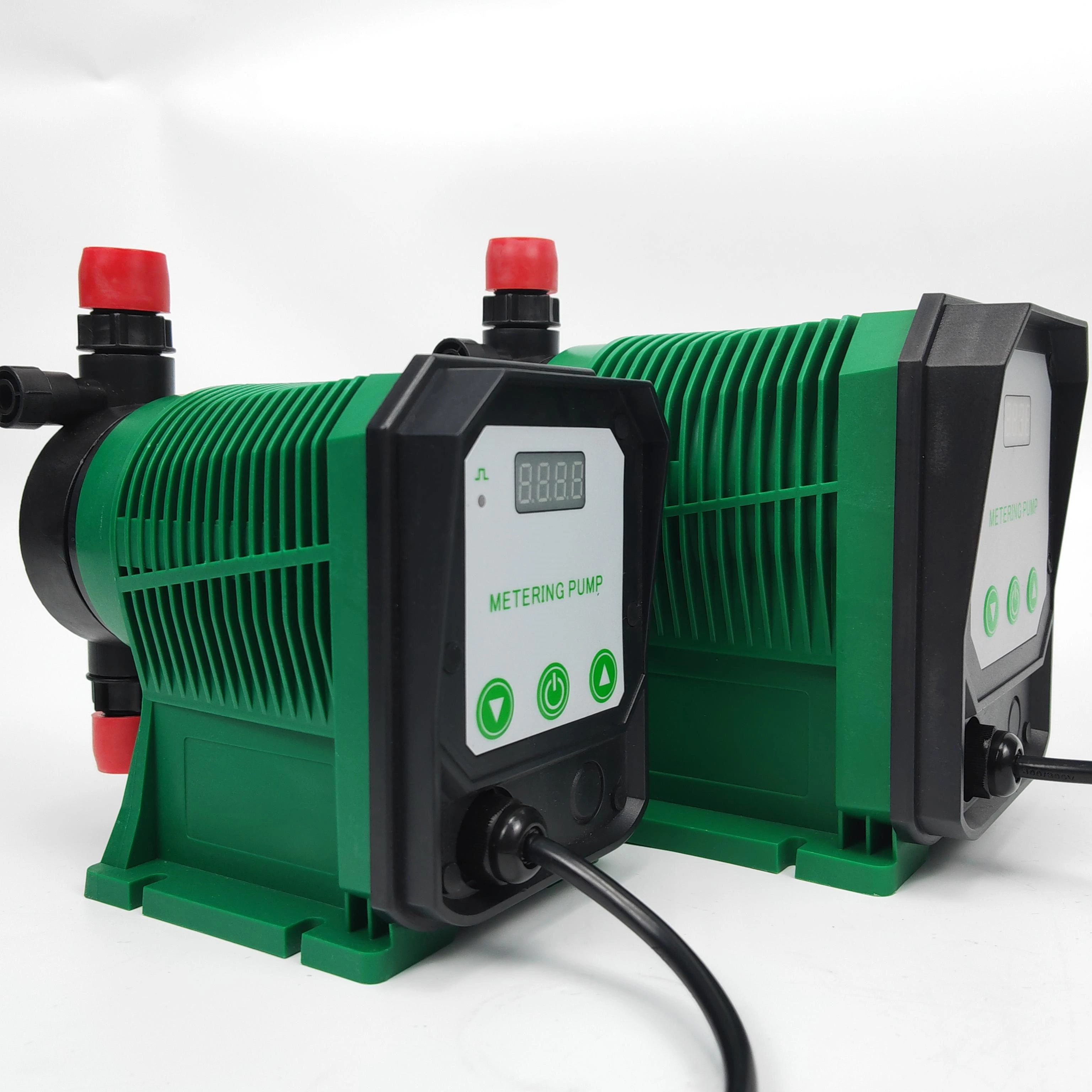

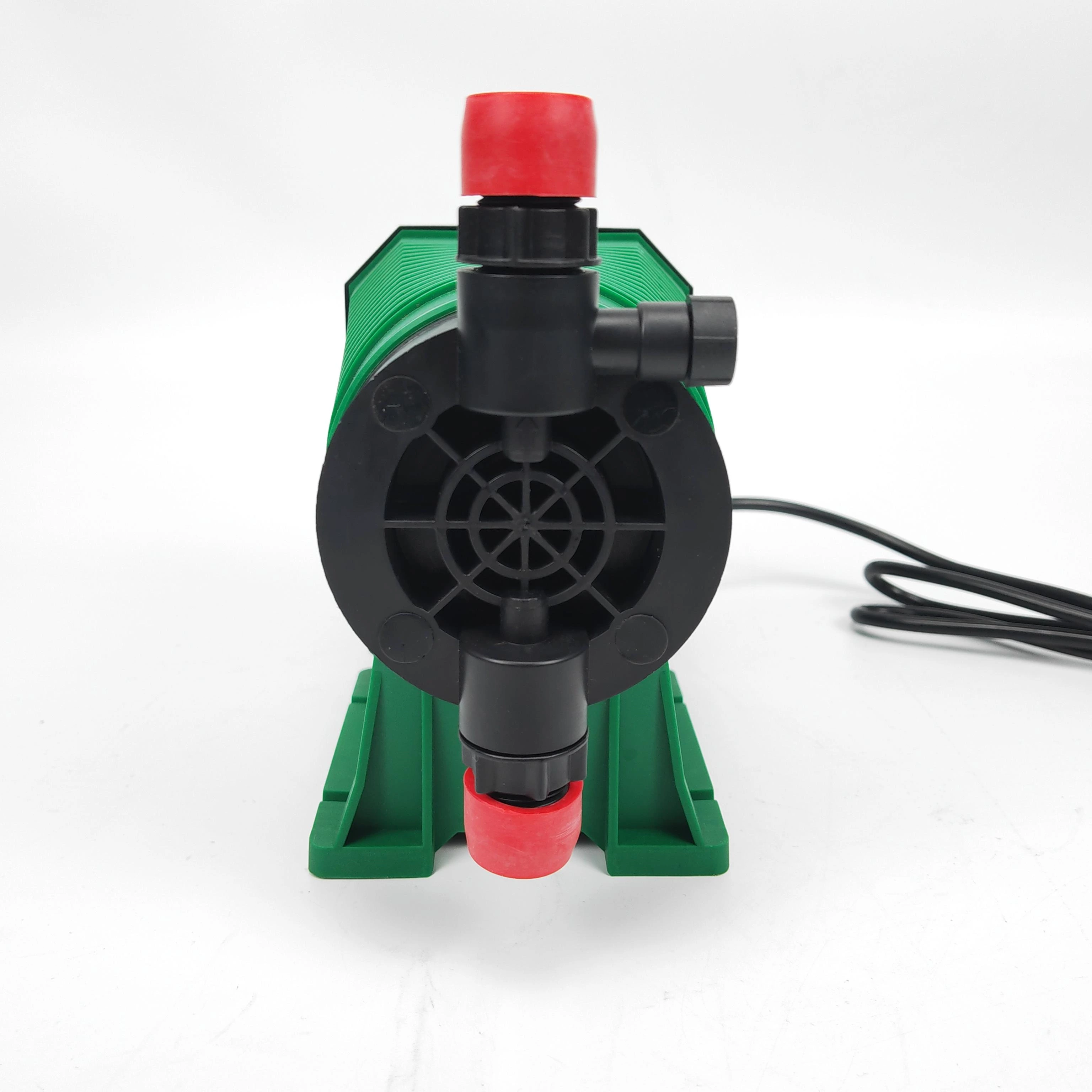

This metering pump is a general-purpose, intelligent electromagnetic driven diaphragm metering pump, controlled by a microprocessor, with variable stroke length and frequency double adjustment function, high strength plastic anti-corrosion housing, LED display frequency, can be controlled by remote signal. It has complete functions, stable performance and superior cost performance. It can accurately add and transport chemical liquids in various processes, and is widely used in petroleum, chemical industry, food, pharmaceutical, papermaking, light industry, agriculture, aquaculture, environmental protection water treatment industry and science and technology sectors.
Parameters

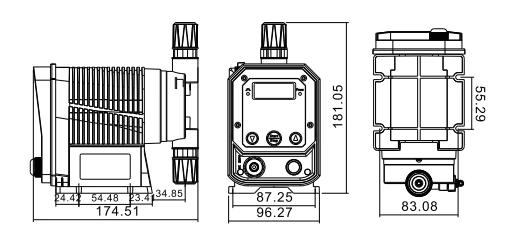

TE20 Installation dimensions and selection Unit:mm
| Model number | Flow L/H | Pressure BAR | Stroke frequencyN/M | Import and export pipe diameter | Pump head material | Power supply V | Power W | Frequency HZ |
| 0110 | 1 | 9.6 | 140 | 4*6 | PP/PVDF | 220 | 25 | 50/60 |
| 0308 | 3 | 8 | 140 | 4*6 | PP/PVDF | 220 | 25 | 50/60 |
| 0605 | 6 | 5 | 140 | 4*6 | PP/PVDF | 220 | 25 | 50/60 |
| 0904 | 9 | 4 | 140 | 4*6 | PP/PVDF | 220 | 25 | 50/60 |
| 1202 | 12 | 2 | 140 | 4*6 | PP/PVDF | 220 | 25 | 50/60 |
| 1502 | 15 | 1.5 | 200 | 4*6 | PP/PVDF | 220 | 25 | 50/60 |
| 2001 | 20 | 1 | 200 | 5*8 | PP/PVDF | 220 | 25 | 50/60 |
| 3001 | 30 | 0.1 | 200 | 5*8 | PP/PVDF | 220 | 25 | 50/60 |

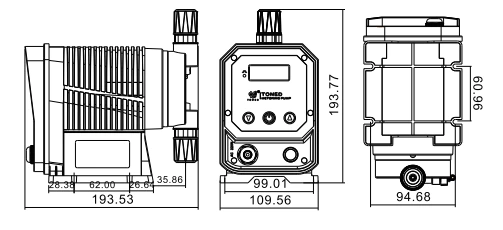

TE50
| Model number | Flow L/H | Pressure BAR | Stroke frequencyN/M | Import and export pipe diameter | Pump head material | Power supply V | Power W | Frequency HZ |
| 0312 | 3 | 12 | 140 | 5*8 | PP/PVDF | 220 | 35 | 50/60 |
| 0609 | 6 | 9 | 140 | 5*8 | PP/PVDF | 220 | 35 | 50/60 |
| 0908 | 9 | 8 | 140 | 5*8 | PP/PVDF | 220 | 35 | 50/60 |
| 1207 | 12 | 7 | 140 | 5*8 | PP/PVDF | 220 | 35 | 50/60 |
| 2604 | 26 | 4 | 200 | 5*8 | PP/PVDF | 220 | 35 | 50/60 |
| 4002 | 40 | 2 | 200 | 5*8 | PP/PVDF | 220 | 35 | 50/60 |
| 5001 | 50 | 1 | 200 | 5*8 | PP/PVDF | 220 | 35 | 50/60 |
| 6501 | 65 | 0.1 | 200 | 5*8 | PP/PVDF | 220 | 35 | 50/60 |
