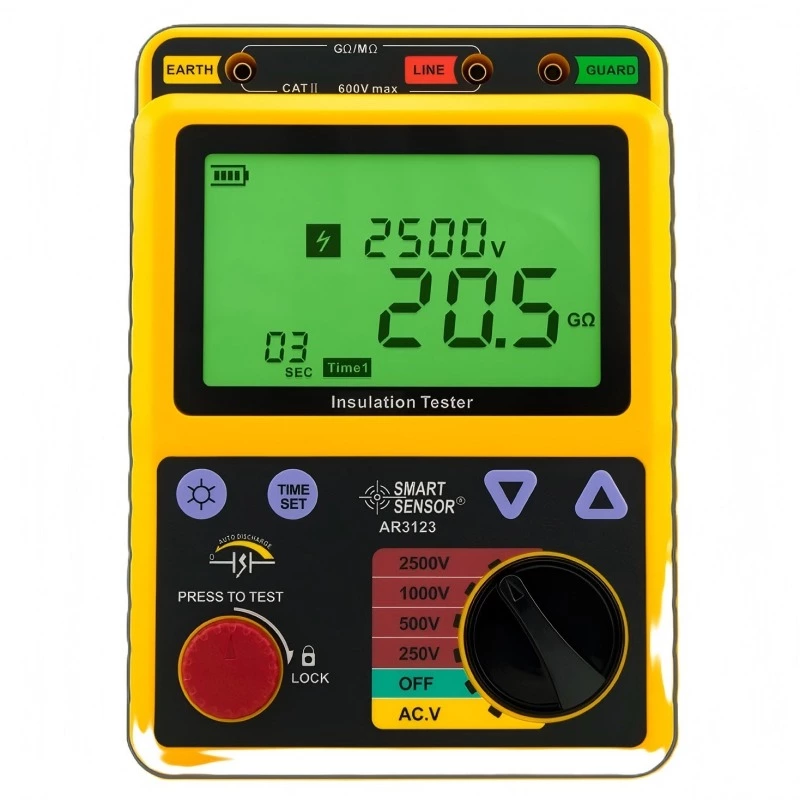

AR3123 High Voltage Insulation Tester

Name: AR3123 High Voltage Insulation Tester
SKU: AR3123
Rating: 4.8 (60 reviews)

AR3123

Rated voltage：250V / 500V / 1000V / 2500V

Open Circuit Voltage：DC 250V +30%, -0% ~ DC 2500V +20%, -0%

Insulation Resistance Testing Range：0.0MΩ~99.9GΩ

Short Circuit Current：1.3 mA Approx

Insulation Resistance Accuracy：±5% rdg ±3% rdg

Voltage Testing Range：DC : ±30 ~ ±600V ; AC : 30 ~ 600V (50/60Hz)

Voltage Resolution：1V

Accuracy：±2%rdg ±3rdg

Sampling Rate：0.5 ~ 10 times / sec

Operation Condition：0°C ~ 40°C, ≤ 85% RH

Storage Condition：-20°C ~ 60°C, ≤90% RH

Enquiry

FEATURES

High voltage insulation testers are suitable for non-destructive measurement of insulation resistance in electrical systems, machines, transformers and cables. These testers are useful for preventive maintenance in the generation, transmission and distribution of electrical energy.

SPECIFICATIONS

Rated voltage	250V / 500V / 1000V / 2500V
Open Circuit Voltage	DC 250V +30%, -0% ~ DC 2500V +20%, -0%
Insulation Resistance Testing Range	0.0MΩ~99.9GΩ
Short Circuit Current	1.3 mA Approx
Insulation Resistance Accuracy	±5% rdg ±3% rdg
Voltage Testing Range	DC : ±30 ~ ±600V ; AC : 30 ~ 600V (50/60Hz)
Voltage Resolution	1V
Accuracy	±2%rdg ±3rdg
Sampling Rate	0.5 ~ 10 times / sec
Operation Condition	0°C ~ 40°C, ≤ 85% RH
Storage Condition	-20°C ~ 60°C, ≤90% RH
Over Load Protection	√
Auto Discharge	√
Battery Indication	√
Alarm	High Voltage Warning Symbol & Buzzer Alarm
External power supply	DC adapter 12V / 1A

PACKING INFORMATION

Power	8*1.5V LR14 Battery
Product Net Weight	1027g
Product Size	15321395mm
Packing	Gift box
Standard Quantity Per Carton	6
Standard Carton Size	453255cm
Standard Carton Gross Weight	16.23kg
