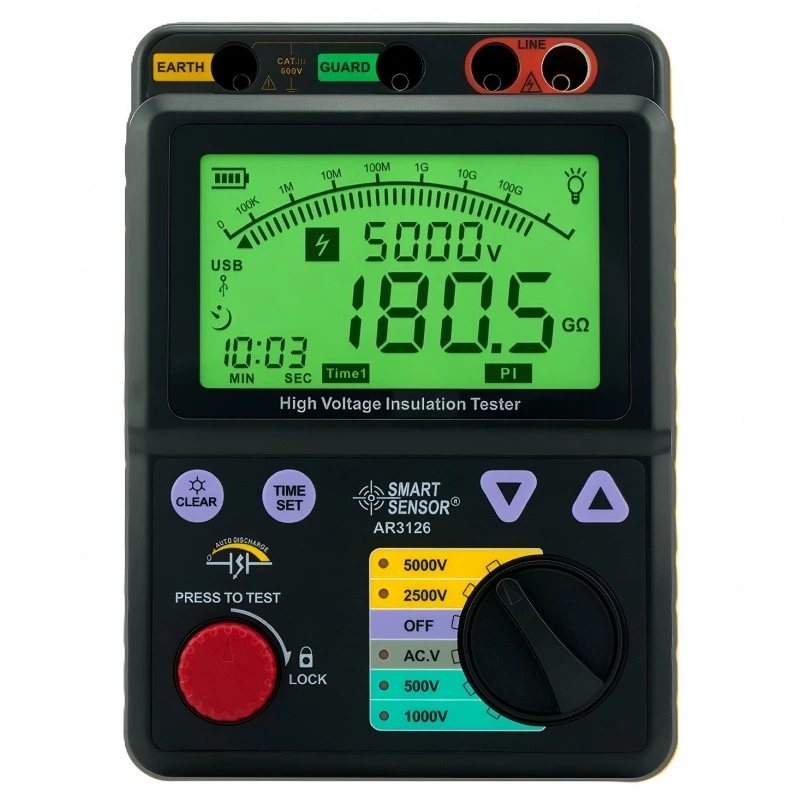

AR3126 High Voltage Insulation Tester

Name: AR3126 High Voltage Insulation Tester
SKU: AR3126
Rating: 4.8 (17 reviews)

AR3126

Rated voltage：500V / 1000V / 2500V / 5000V

Open Circuit Voltage：DC 500V +30%, -0% ~DC 5000V +20%, -0%

Insulation Resistance Testing Range：0.0MΩ~1000GΩ

Short Circuit Current：1.3 mA Approx

Insulation Resistance Accuracy：0~99.9GΩ : ±5% rdg ±3% rdg；above 100GΩ : ±20%

Voltage Testing Range：DC : ±30 ~ ±600V ; AC : 30 ~ 600V (50/60Hz)

Voltage Resolution：1V

Accuracy：±2%rdg ±3rdg

Sampling Rate：0.5 ~ 10 times / sec

Operation Condition：0°C ~ 40°C, ≤ 85% RH

Storage Condition：-20°C ~ 60°C, ≤90% RH

Enquiry

FEATURES

High voltage insulation testers are suitable for non-destructive measurement of insulation resistance in electrical systems, machines, transformers and cables. These testers are useful for preventive maintenance in the generation, transmission and distribution of electrical energy.

SPECIFICATIONS

Rated voltage	500V / 1000V / 2500V / 5000V
Open Circuit Voltage	DC 500V +30%, -0% ~ DC 5000V +20%, -0%
Insulation Resistance Testing Range	0.0MΩ~1000GΩ
Short Circuit Current	1.3 mA Approx
Insulation Resistance Accuracy	0~99.9GΩ : ±5% rdg ±3% rdg above 100GΩ : ±20%
Voltage Testing Range	DC : ±30 ~ ±600V ; AC : 30 ~ 600V (50/60Hz)
Voltage Resolution	1V
Accuracy	±2%rdg ±3rdg
Sampling Rate	0.5 ~ 10 times / sec
Operation Condition	0°C ~ 40°C, ≤ 85% RH
Storage Condition	-20°C ~ 60°C, ≤90% RH
Over Load Protection	√
Auto Discharge	√
Battery Indication	√
Alarm	High Voltage Warning Symbol & Buzzer Alarm

PACKING INFORMATION

Power	8*1.5V LR14 Battery
Product Net Weight	1027g
Product Size	15321395mm
Packing	Gift box
Standard Quantity Per Carton	6
Standard Carton Size	453255cm
Standard Carton Gross Weight	14.78kg
