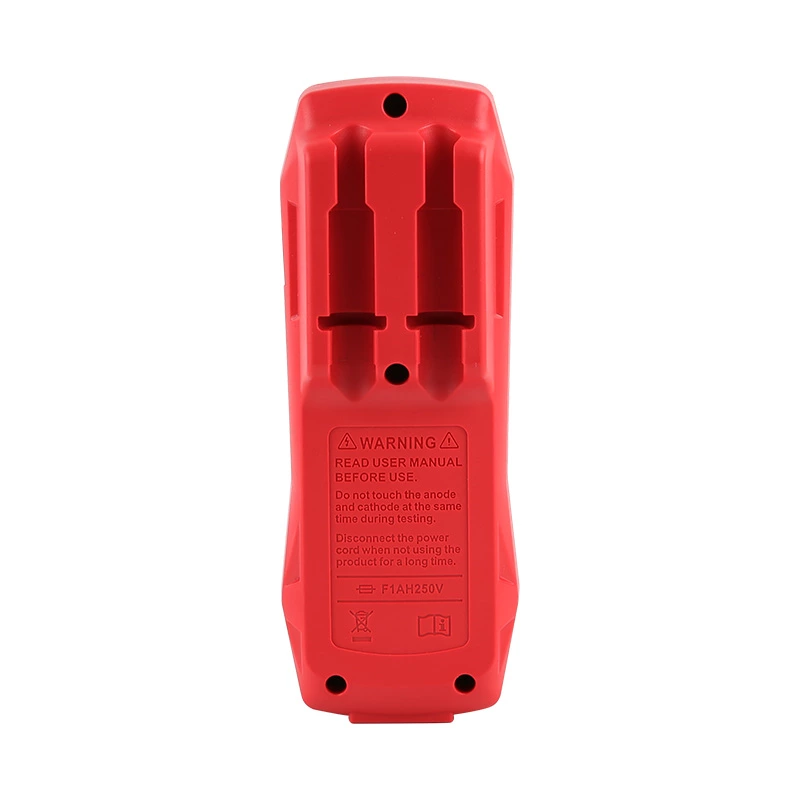

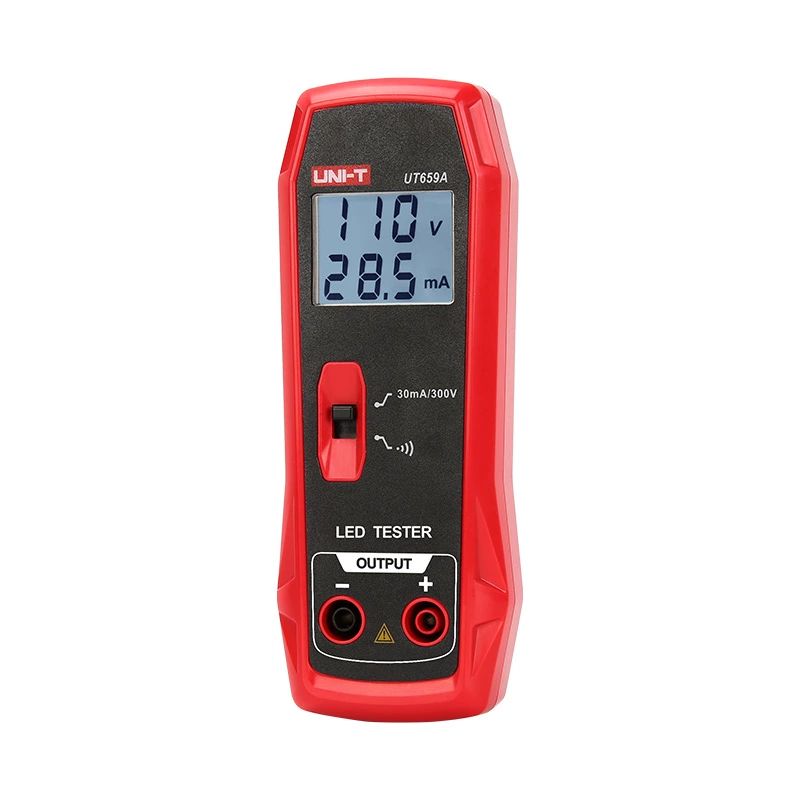

UT659A LED tester
UT659A
Features of UT659 Series LED testers
● Detect backlight without disassembly
● Intelligent adjustment of voltage and current
● Test value shown on LCD
UT659A
Features of UT659 Series LED testers
● Detect backlight without disassembly
● Intelligent adjustment of voltage and current
● Test value shown on LCD
UT659 series products are widely used in LED single lamp bead test (UT659D), inspection and repair of LCD TV backlight, strip light and modulator tube, etc. UT659A/UT659D LED tester supports full voltage (85V~265V, 50Hz/60Hz) input, which can be used after 1 minute of power-up to ensure stable voltage output. When performing a LED test at 30mA/300V, the LED polarity can be automatically identified, and the output voltage is adaptively adjusted according to the forward voltage drop of the tested LED.
| Specifications | Range | UT659A | UT659D |
| Certifications | CE/RoHS | ||
| Output voltage | 24V | √ | |
| 300V | √ | √ | |
| Output current | 2mA | √ | |
| 30mA | √ | √ | |
| Continuity | Output voltage: 5V (DC) | ||
| Measuring resistance: 0~99.9Ω | |||
| Input range | 85V to 265V @ 50/60Hz | ||
| Backlight function | constant on | ||
| Safety protection | High-impedance open circuit | ||
| Operating temperature | 0°C~40°C | ||
| Storage temperature | -10°C~50°C | ||
| Relative humidity | <80% RH | ||
| Operating altitude | ≤2000m | ||
| Drop protection | 1m | ||
| Category ratings | CAT II 300V | ||
| General Characteristics | |||
| Power | AC 85V~260V， 50Hz/60Hz | ||
| Display | 60mm x 35mm | ||
| Product net weight | 175g | ||
| Product size | 150mm x 56mm x 42mm | ||
| Standard accessories | Power cable, test leads, English manual | ||
| Standard individual packing | Gift box, blister | ||
| Standard quantity per carton | 20pcs | ||
| Standard carton measurement | 345mm x 335mm x 245mm | ||
| Standard carton gross weight | 7.7kg | ||
