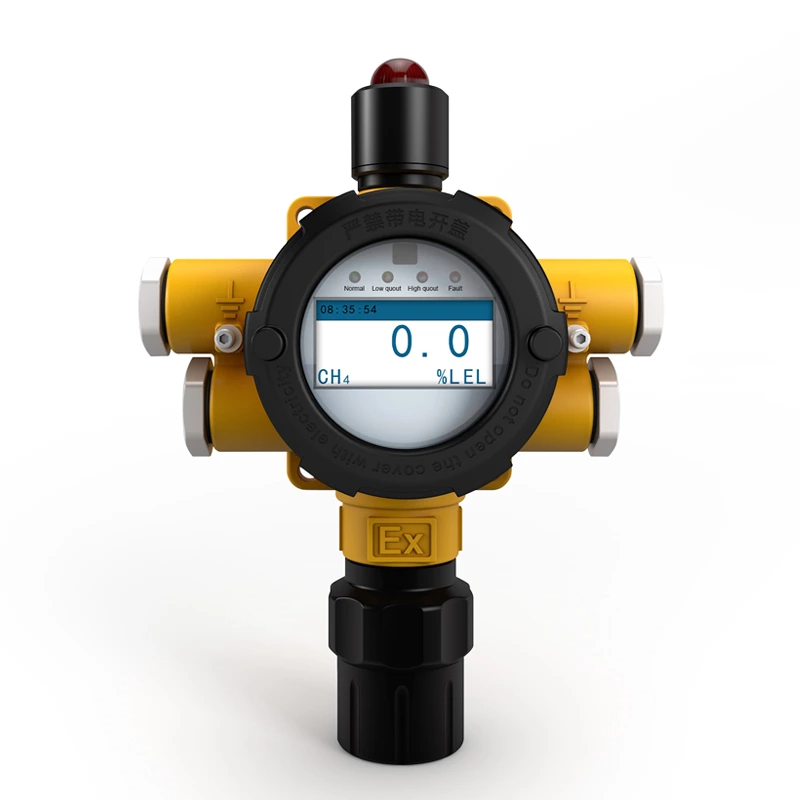

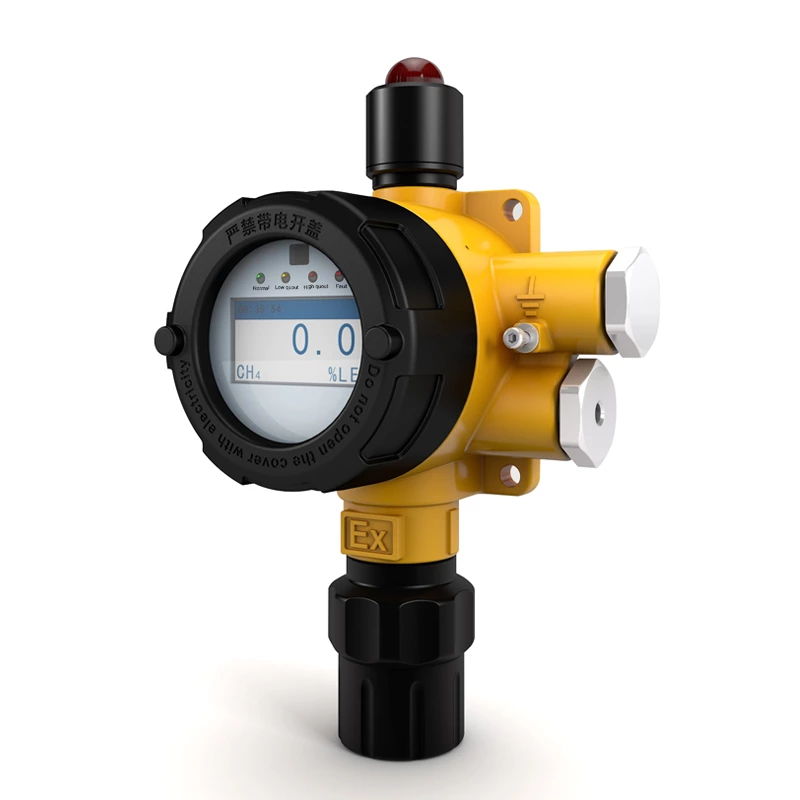

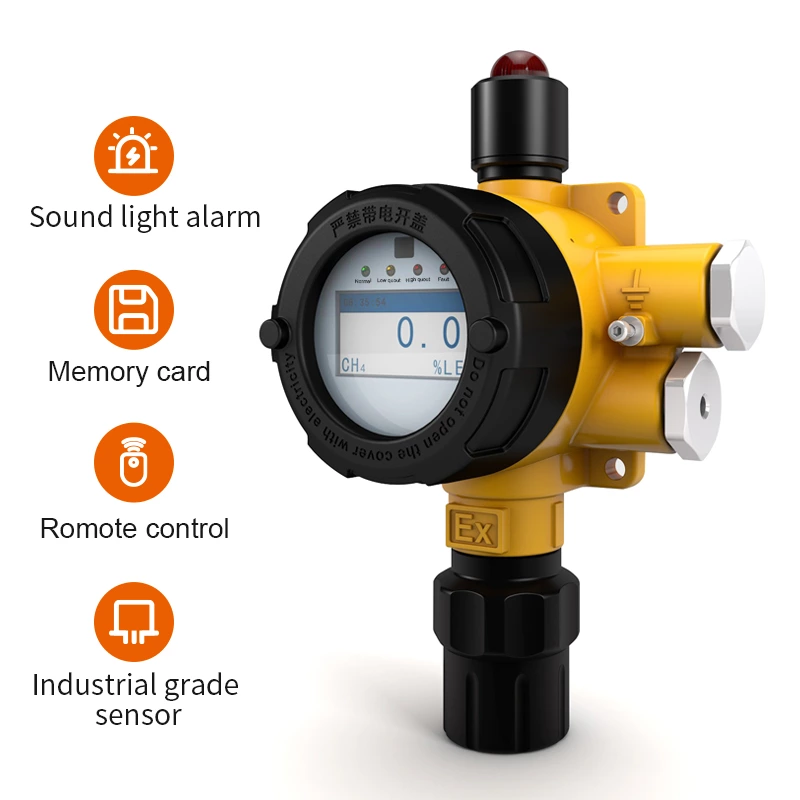

GT-K90 Fixed Gas Detector
GT-K90
- Product:fixed gas detector
- Dethod:diffusion
- Detecting range:3.0%LEL~100.0%LEL
- Resolution:0.1%LEL
- Operating Voltage:24v士15%
- Indication error:±3%LEL
- Response time:≤30s
- Zero drift:≤±2%FS/years

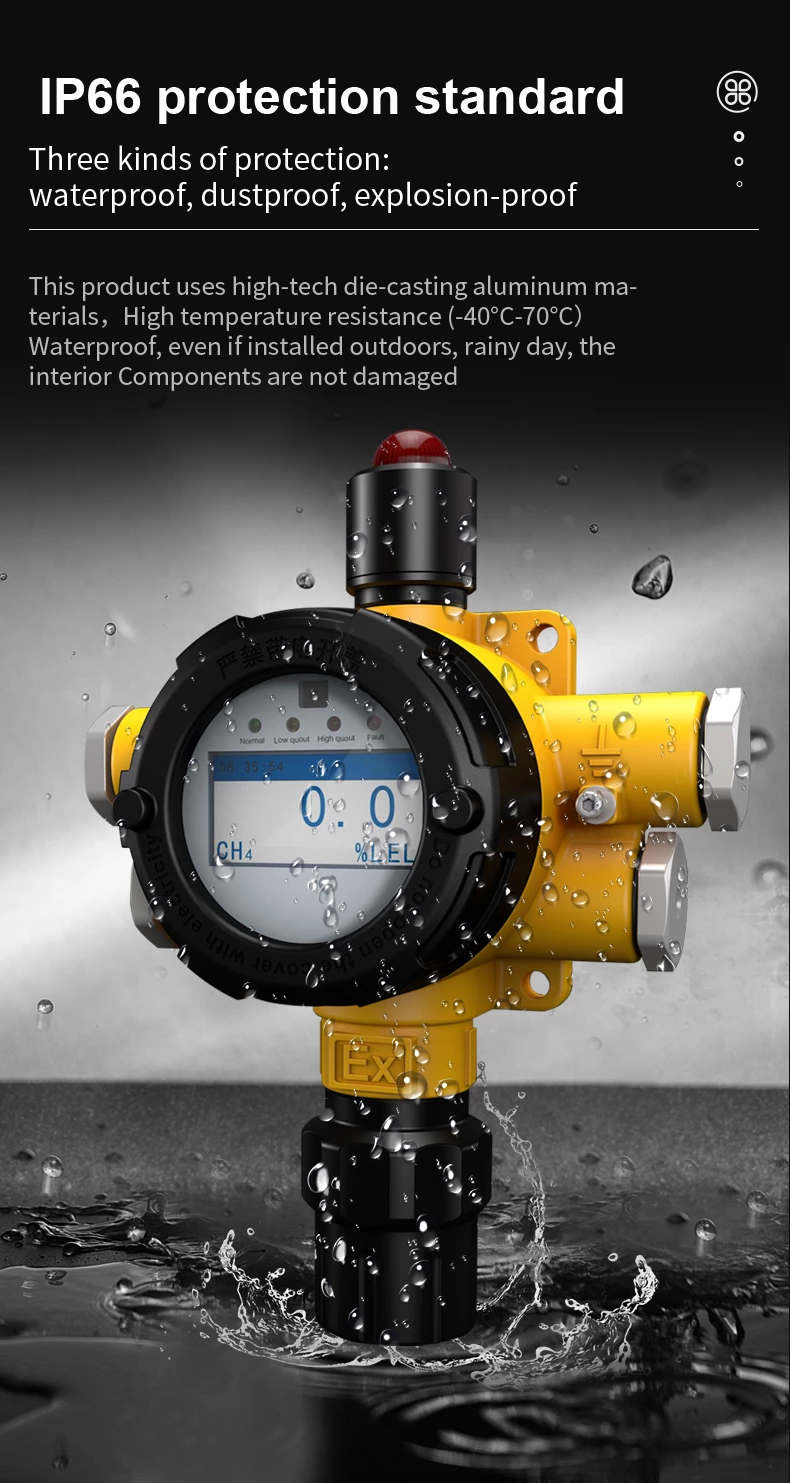

- Housing material: Die-cast aluminum
- Connection port: M27*1.5mm
- Operating temperature:-40~70°C
- Working humidity:≤90%RH
- Working pressure:86~106kpa
- Weight:2.1kg
- Relay:Three groups of relay outputs,contact capacity: 30VCD 2C
- Dimension:260*191.5*113.5mm
