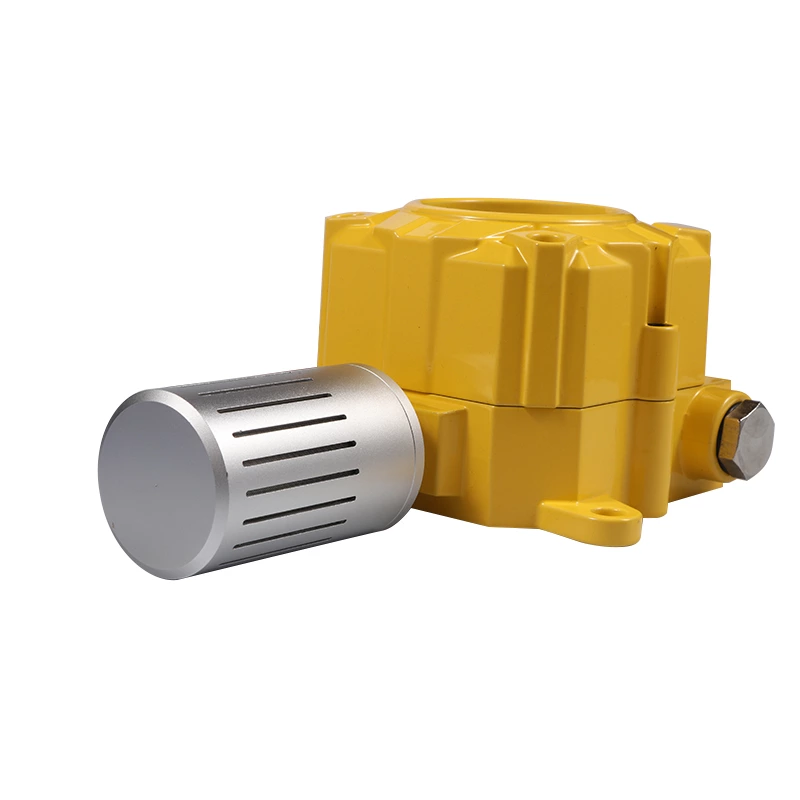

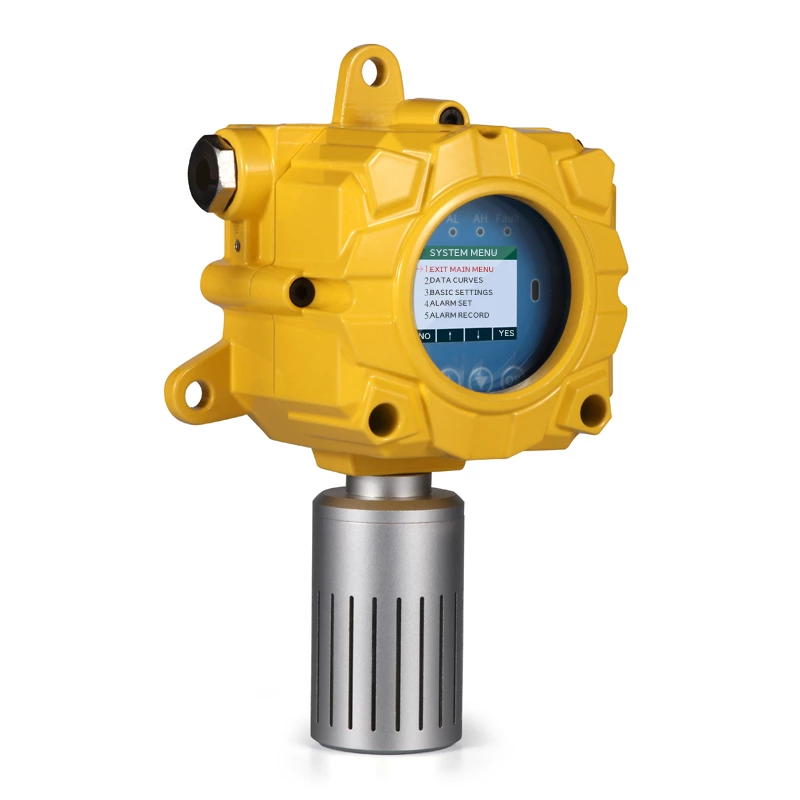

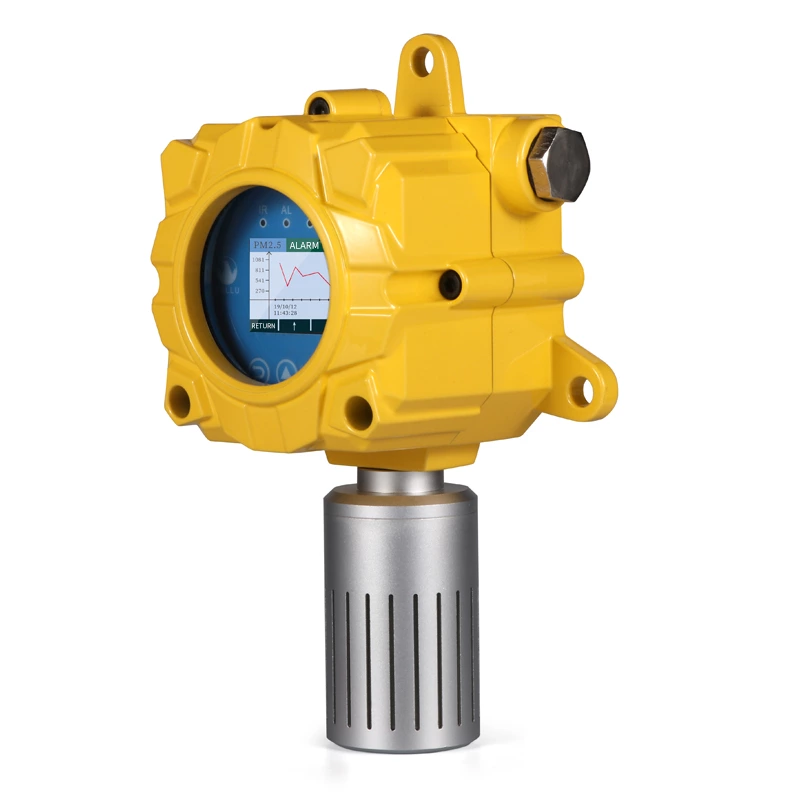

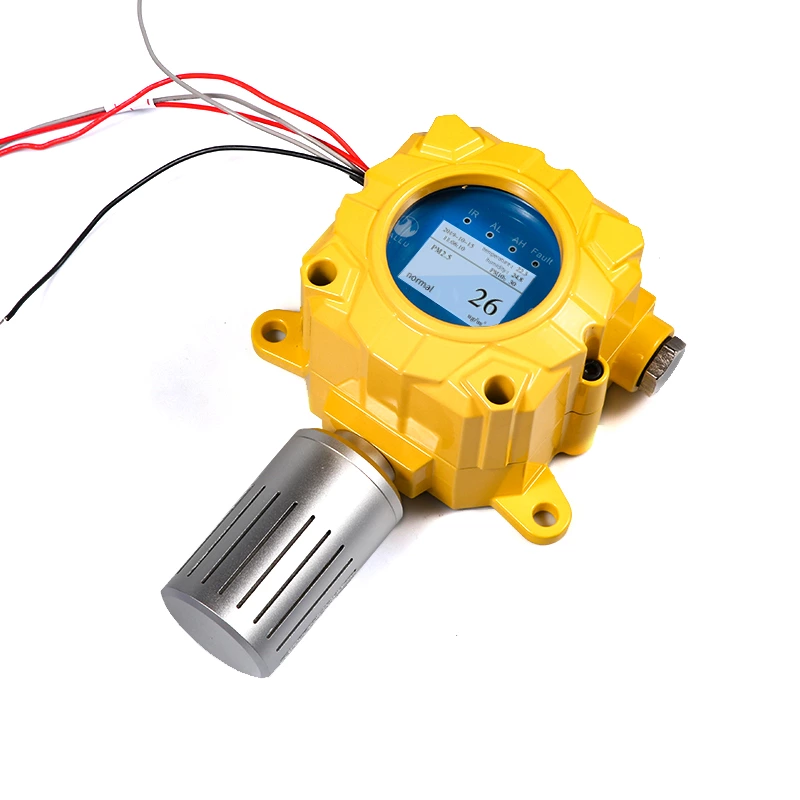

K-G60-TSP Fixed Gas Detector

Name: K-G60-TSP Fixed Gas Detector
SKU: K-G60-TSP
Rating: 4.8 (3 reviews)

K-G60-TSP

Precision:<5%FS
Output Signal:4-20mA,0-5V,RS485, relays, wireless digital (optional)
Response Time:T₉₀< 30s
Recovery Time:≤10s
Repeatability:≤±1%
Linearity Error: ≤±1%
Zero Shift:≤ ± 1% (FS/ year)

Enquiry

K-G60 fixed gas detector adopts advanced gas sensor, which can translate the gas concentration in the air to the digital signal output.
The detector working with gas controller can be used to detect gas in refinery, chemical plant, LPG station, boiler room, painting plant and
lother places with gas exists

Parameters

Gas Detected	Ex, O2, CO, H2S,CH4, NH3, CL2, HCL, H2, NO, NO2,NOX,CH2O,O3,CO2,SO2,ETO, PH3,HCN, N2, HF
Detection Principle	Catalytic or electrochemical or PID's or infrared principles
Sampling Method	Wall, pipeline, flow-through (with the monitoring of the environment-related)
Resolution	1%LEL,0.1ppm,1ppm,0.01%vol
Precision	<5%FS
Output Signal	4-20mA,0-5V,RS485, relays, wireless digital (optional)
Response Time	T₉₀< 30s
Recovery Time	≤10s
Repeatability	≤±1%
Linearity Error	≤±1%
Zero Shift	≤ ±1% (FS/year)
Display Technology	Display high brightness LED display
Connection Mode	G1/2 male proof hose pipe
Thread Size	M45 *2mm
Working Temperature	-20~55°C
Explosion-proof	Ex db IIC T6 Gb/Ex tb IlIC T80 Db
Degree of Protection	IP66
Working Voltage	DC 24V
Dimensions	203x178x92 mm
Cable Requirement	4-20mA, RVVP,3-line, ≥1.5 mm² Modbus, RVVP, 4-line, ≥1.5 mm²
