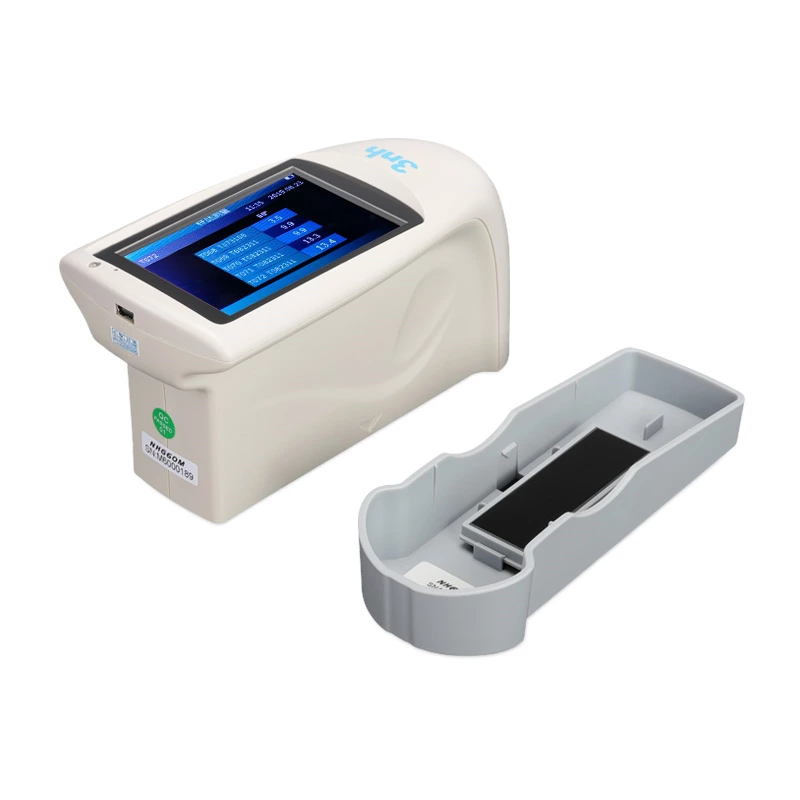

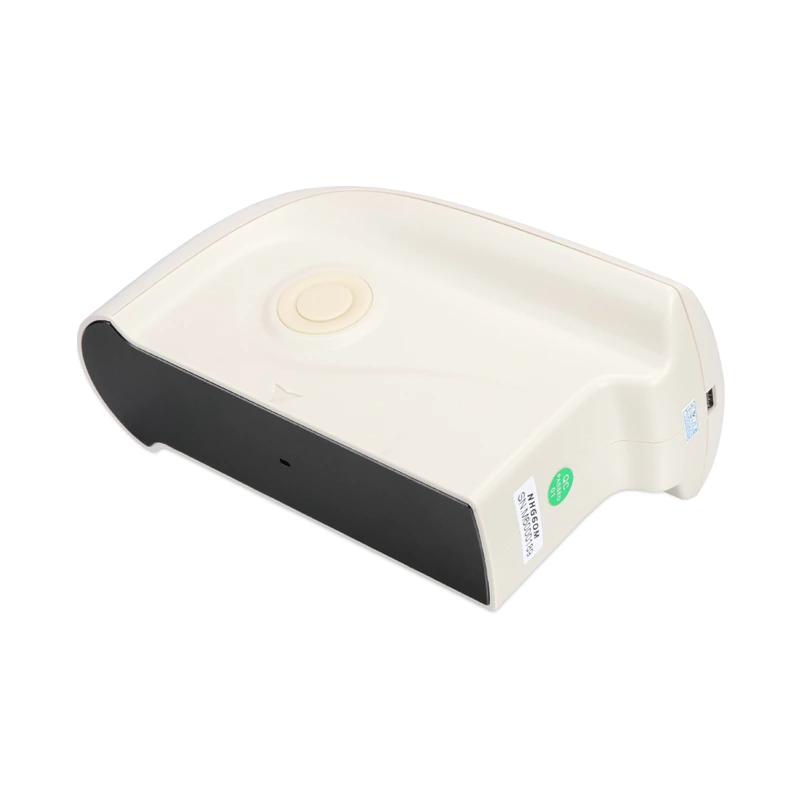

NHG60M Gloss Meter

NHG60M micro aperture gloss meter adopts small aperture 2*4mm, with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG60 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.

NHG60M gloss meter can test material with gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.

Features:

• Small aperture: 2*4mm
• 60° angle for semi gloss
• Display 5 sets of measurement data, good for comparison
• Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).
• Continuous mode to check uniformity over large areas
• Connect to PC, more extend functions
• Input gloss value manually
• Large touch screen operation, easy to use
• Beauty appearance, good man-machine communication interface
• Powerful functions to meet many different requirements
• Large storage to save over 5000 data
• Built-in lithium ion rechargeable battery

Parameters
