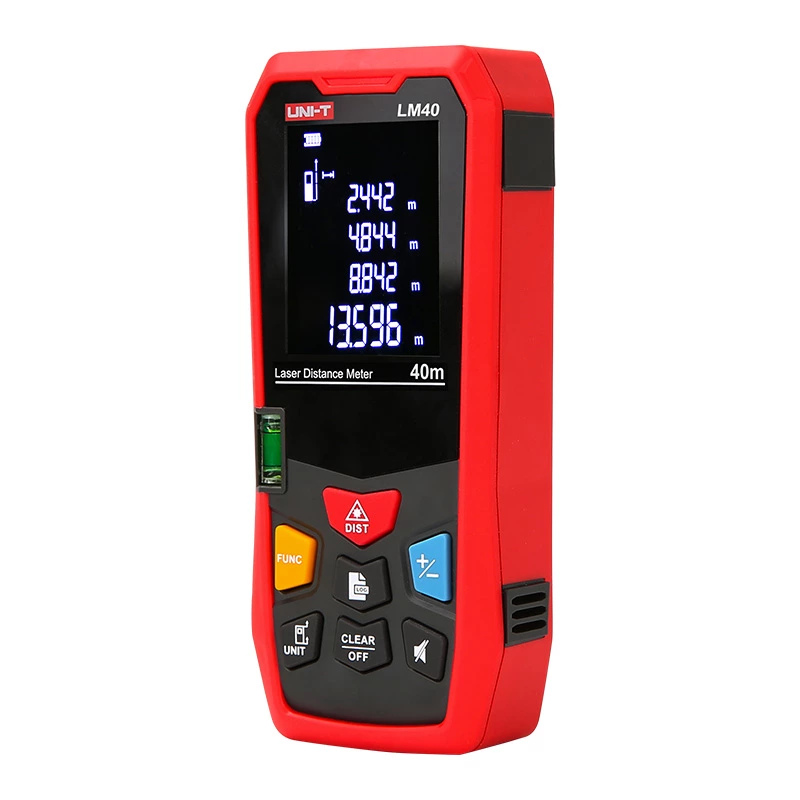

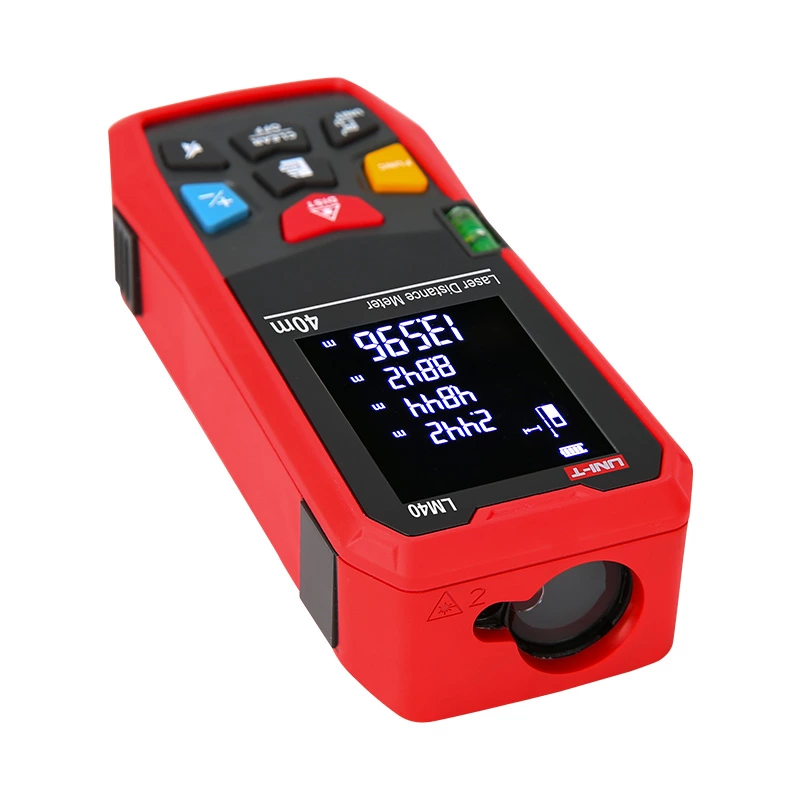

LM40
Features of LM Series Laser Distance Meters
Certifications: RoHS
●Ergonomic exterior, comfortable handling
●Millimeter accuracy
● Large, multiple angle HD display
●Quick, auto calculation with real-time readout
●Physical leveler
●Multiple functions: Max/Min/continuous measurement, displacement calculation, data storage, and more
●Auto power off after 3 minutes without operation
The LM series laser distance meters are portable devices that can easily and accurately measure length, area, and volume by pressing one button. These tools can be used in interior/exterior design, construction, factory supervision, engineering inspection, traffic accident evidence gathering, real estate development, fire assessment, and more.
| Specifications | LM40 | LM50 | LM60 | LM80 | LM100 | LM120 | LM150 |
| Display type | EBTN | LCD | |||||
| Display size | 2.0-inches | ||||||
| Range | 40m | 50m | 60m | 80m | 100m | 120m | 150m |
| Min. display unit | 0.001m | ||||||
| Measurement units | m/ft/in | ||||||
| Measurement basis | Front/rear | ||||||
| Accuracy | ±(2mm+5 x 10-5 D) | ||||||
| Laser class | 2 | ||||||
| Laser type | 630~670nm, ﹤1mW | ||||||
| Features | |||||||
| Single measurement | √ | ||||||
| Continuous measurement | √ | ||||||
| Max/Min/Area | √ | ||||||
| Volume | √ | ||||||
| Pythagoras | √ | ||||||
| Add/Subtract | √ | ||||||
| Data storage | 20 groups | ||||||
| Auto power off | 3 minutes without operation | ||||||
| Auto laser off | 30s without operation | ||||||
| Auto backlight off | 10s without operation | ||||||
| Audio indication | √ | ||||||
| Battery status display | √ | ||||||
| Storage temperature | -20℃~70℃ | ||||||
| Operating temperature | 0℃~40℃ | ||||||
