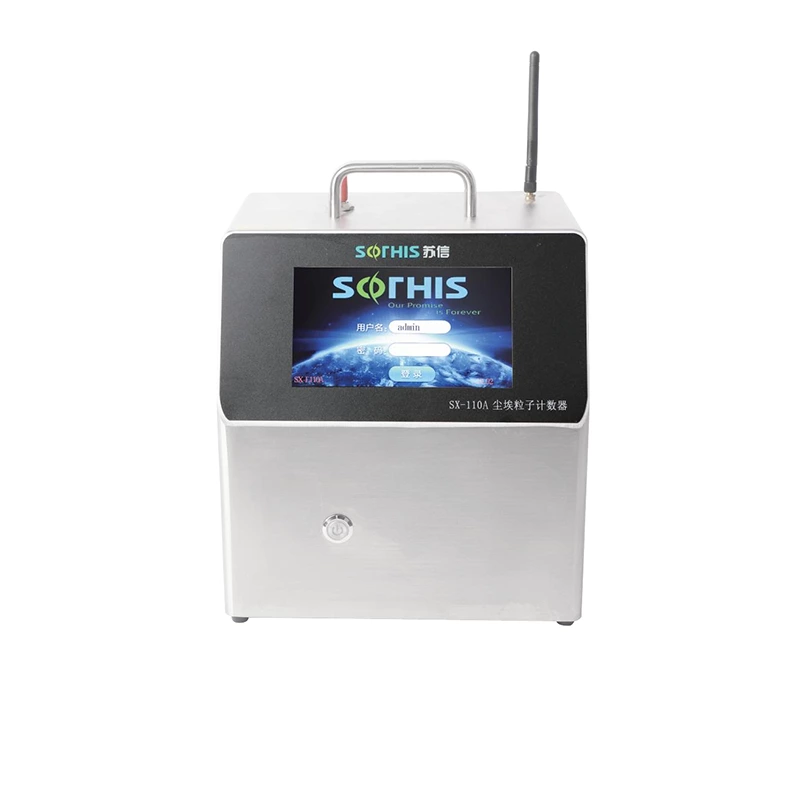

The SX-110A type dust particle counter is a new generation of touch-screen portable dust particle counters developed by our company. It features a sampling flow rate of 28.3L/min±5% (i.e., 1 cubic foot CFM) and supports particle size channels up to 0.1μm.
The instrument features a 7-inch color touch screen, which is both attractive and elegant. The body is made of SUS316L stainless steel. It uses a brushless DC fan as the vacuum power source, ensuring continuous, stable operation with ultra-low noise, making it energy-efficient and environmen
tally friendly. It is equipped with a digital flow sensor for dynamic and precise control of the sampling flow rate. The instrument can be powered by AC or a large-capacity lithium battery pack, making it suitable for mobile detection in areas without AC power.
Function
- Sampling flow rate: 28.3L/min ±5% (1 CFM)
- Particle size channel: supports 0.1μm
- Particle size distribution error: ≤±30%
- Error of indicated concentration: less than ±30%FS
- Relative error of repeatability: less than or equal to 10%FS
- Self-cleaning time: less than 10min
- Complies with GMP static, GMP dynamic and ISO 14644-1 standards
- Sampling concentration: 35,000 particles/liter
Parameters
