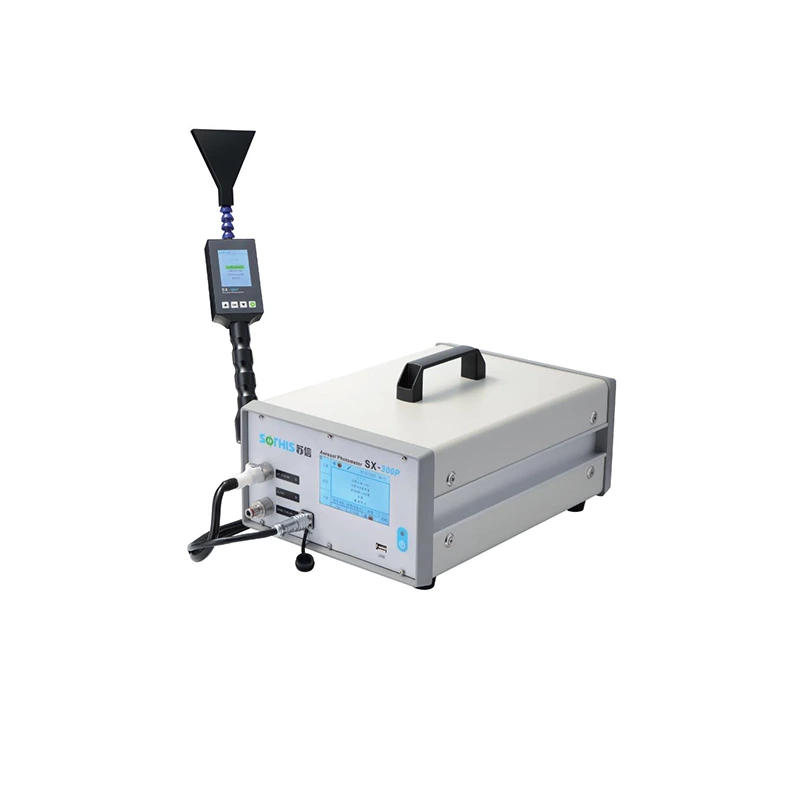

The SX-300P is a linear spectrophotometer with a light-scat tering design. It primarily functions to sample air and other gases, displaying the particle concentration.Compact and lightweight, the SX-300P features a robust die-cast aluminum casing.The main unit is an LCD touch screen, and the scanning handle is equipped with finger pressure buttons, making it easy for operators to operate and read data.
The most common application of the SX-300P is to test the integrity and leak of HEPA/ULPA filtration systems. An aerosol generator produces aerosol particles, which are introduced upstream of the filter to achieve a concentration that meets regulatory standards, ensuring effectiveness
during downstream scanning tests. The integrity of the filter is determined by scanning its surface and edges with a scanning handle.
Function
- Sampling flow rate: 28.3L/min
- Concentration flow rate:0.0001-600μg/L（mg/m³）
- Resolution:0.0001μg/L
- Accuracy:1% of the reading value (0.01% to 100%)
- Repeatability: 0.5% of the reading value (0.01% to 100%)
- Compatible with conventional clean room environment and other clean environment monitoring
- Complies with GMP, ISO 14644.3 and other standards
- 4.3-inch touch screen, wear gloves to use, simplify the operation

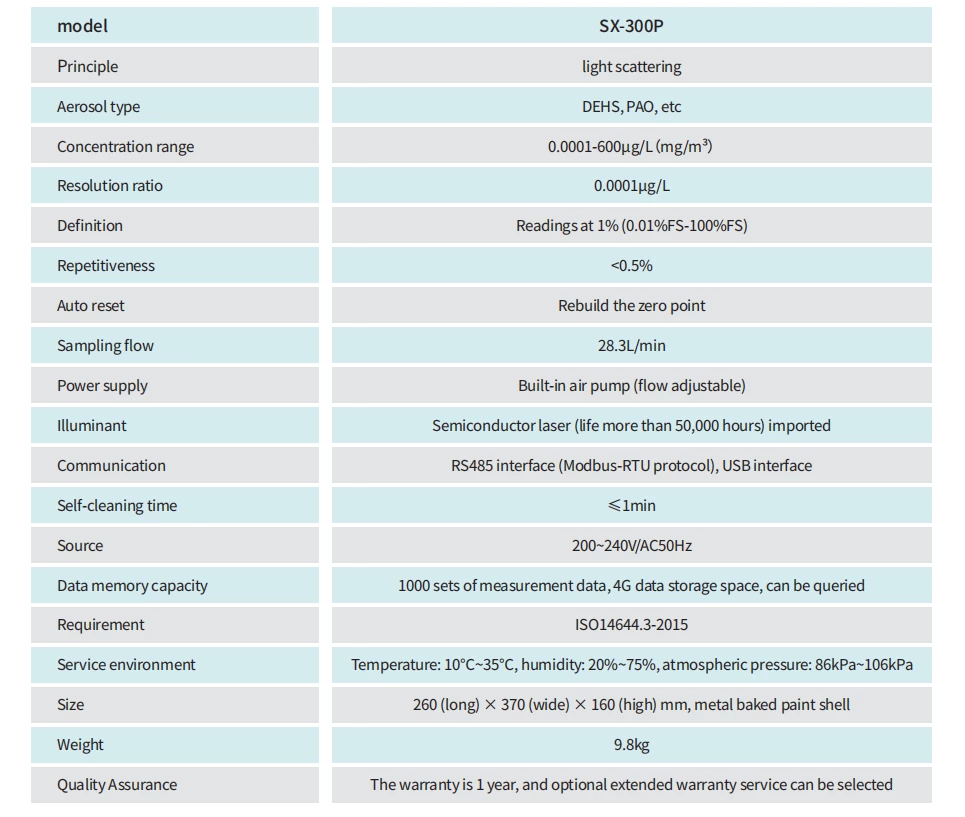

Parameters
