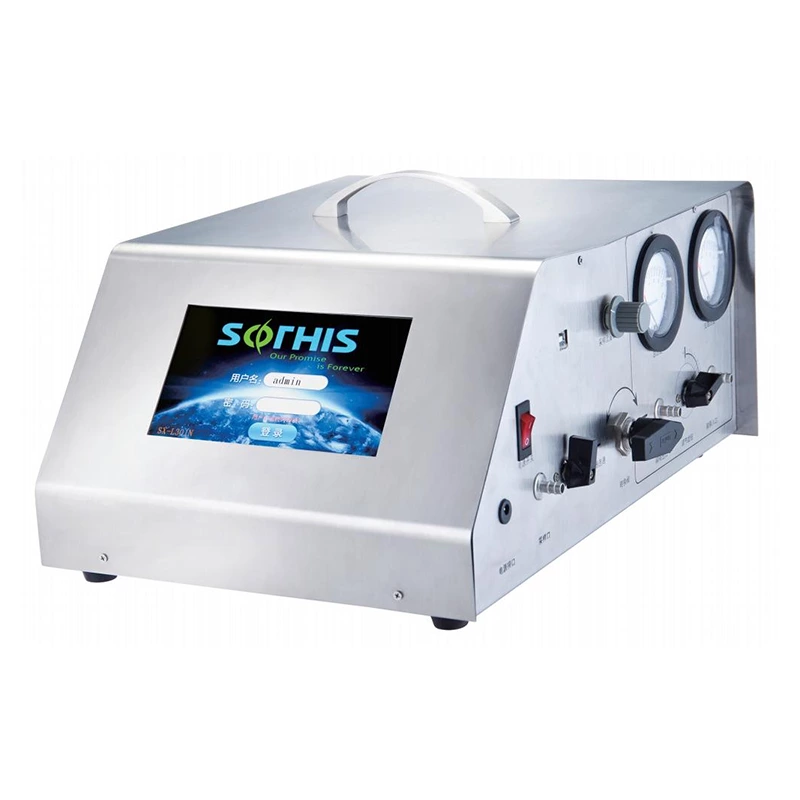

SX-L301N high concentration particle counter is a multi-func tional all-in-one machine formed by combining our 2.83L/min touch screen particle counter with diluter, which facilitates users to detect particles of different concentrations in different occasions.
Utilize the SX-L301N high concentration particle counter is a multi-func tional all-in-one machine formed by combining our 2.83L/min touch screen particle counter with diluter, which facilitates users to detect particles of different concentrations in different occasions.
Utilize the principle of bypassing high-concentration airflow to achieve particle dilution.
The dilution ratio can be divided into different levels within a specified range. The calibration measurement of the dilution ratio is conducted using the actual measurement method according to relevant standards, which involves measuring the ratio of particle concentrations at the inlet and outlet of the diluter within the normal range of particle concentration.
The all-in-one machine can be used for particle detection in clean areas to determine the cleanliness level, and can also be used for special detection in high concentration particle areas (for example: self-purification time detection in clean areas, CADR value calculation of air purifier, etc).principle of bypassing high-concentration airflow to achieve particle dilution.
The dilution ratio can be divided into different levels within a specified range. The calibration measurement of the dilution ratio is conducted using the actual measurement method according to relevant standards, which involves measuring the ratio of particle concentrations at the inlet and outlet of the diluter within the normal range of particle concentration.
The all-in-one machine can be used for particle detection in clean areas to determine the cleanliness level, and can also be used for special detection in high concentration particle areas (for example: self-purification time detection in clean areas, CADR value calculation of air purifier, etc).

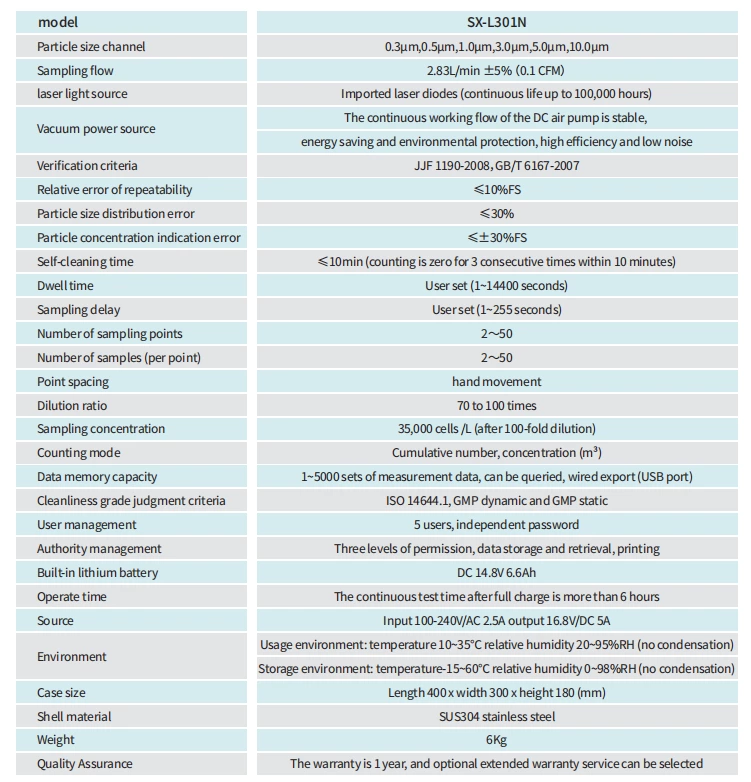

Function
- Self-cleaning time: less than 10min
- Complies with GMP static, GMP dynamic and ISO 14644-1 standards
- Sampling concentration: 35,000 particles/liter (100 times diluted)
- 5000 stored data
- Dilution factor: 70~100
