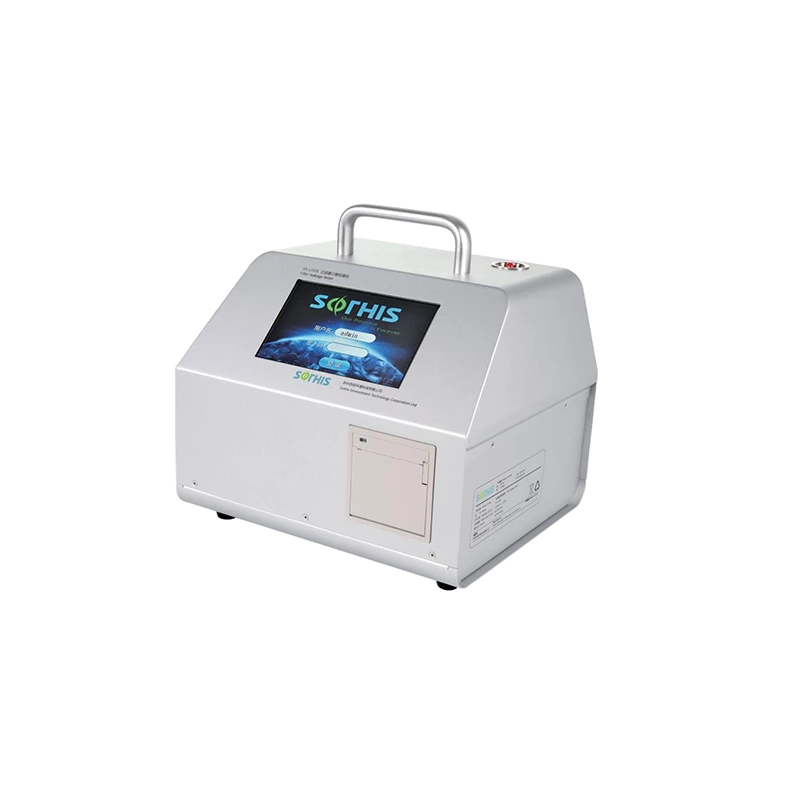

SX-L310S is our own 28.3L portable filter counting leak detec tor with a sampling flow rate of 28.3L/min±%5 (i.e., 1 cubic foot CFM).
This instrument is designed for both cleanroom cleanliness testing and high-efficiency air outlet leak detection. It comes with optional audit tracking and features a 7-inch touch screen display, offering an elegant and modern appearance.
The body is made of full SUS304 material and has a sand blasted finish. The user-friendly interface is designed to enhance customer experience, making it easy to operate.It uses a DC brushless fan for continuous, stable, energy-effi cient, and environmentally friendly operation. It can be powered by AC or its built-in high-capacity lithium battery, ensuring mobile testing in areas without AC power.For GMP verification, this instrument is the preferred choice for rapid testing of cleanroom cleanliness and filter integrity in industries such as biopharmaceuticals, electronics, semi conductors, and new energy.
Function
- Sampling flow rate: 28.3L/min ±5% (1.0 CFM)
- Particle size distribution error: ±30%
- Error of indicated concentration: ±30%FS
- Self-cleaning time: less than 10min
- Relative error of repeatability: less than or equal to 10%FS
- Complies with GMP static, GMP dynamic and ISO 14644.1 standards
Parameters
