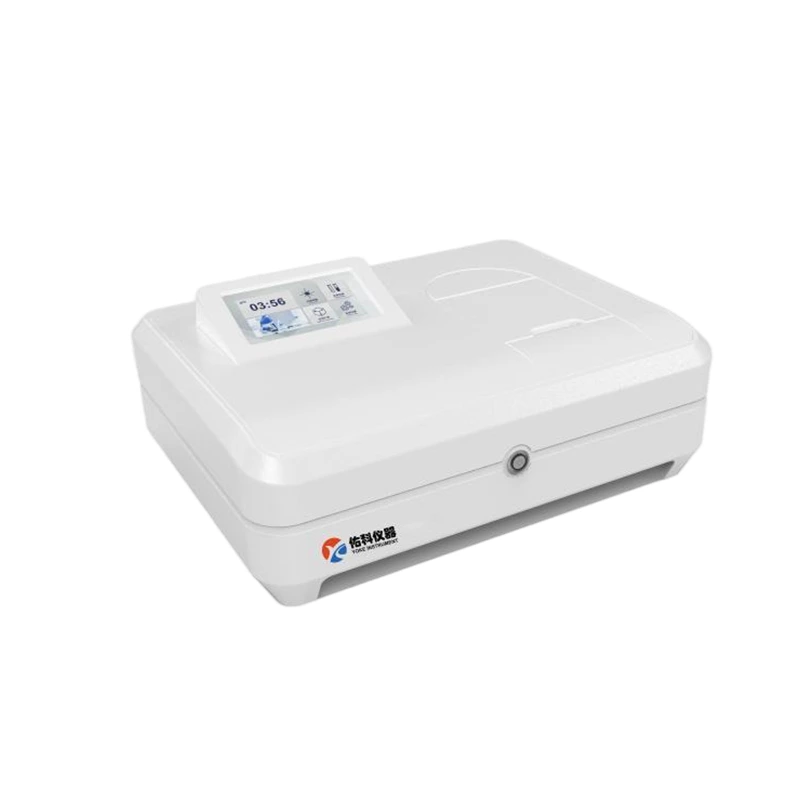

L6 IoT UV-Vis Spectrophotometer

Features

• A high-resolution (1024*768) dot-matrix 7-inch color touchscreen LCD display offers a user-friendly and simple interface.
• The instrument supports cloud storage, allowing users to easily add YOKE@Cloud data via WeChat by scanning a QR code, greatly facilitating user applications.
• The instrument utilizes a high-resolution C-T monochromator with a "blazed holographic grating" and a 24-bit high-precision AD chip from Analog Devices, giving this economical instrument the low stray light (less than 0.1T%), high accuracy, and high stability (0.002A) typically found in high-end instruments.
• The instrument boasts extensive storage capacity, capable of storing 500 data points and 30 working curves, greatly facilitating user experience.
• The instrument comes standard with a USB port, Wi-Fi, and Bluetooth module, enabling wireless Bluetooth printing. Optional connectivity to Yokelab computer software allows for rapid management of spectral data and facilitates data processing. Data can be exported directly via USB flash drive and opened and edited directly in Excel, greatly facilitating user experience.
• The world's first economical instrument capable of basic measurements, quantitative measurements, and data storage.
• Automatic wavelength setting and automatic lamp switching. When connected to PC software, it enables advanced functions such as wavelength scanning, kinetic measurements, quantitative measurements, nucleic acid measurements, wavelength superposition, and integral derivatives.

Optional

• Automatic eight-cell holder or automatic five-cell long-path (5cm) cuvette holder
• YOKEDATA dedicated spectrum analyzer software
• 5cm or 10cm manual cuvette holder, thin film sample holder, and test tube cuvette holder
• Wireless Bluetooth printer

Technical Parameters

• Instrument Model: L6
• Display: 7-inch high-resolution 1024*768 touchscreen
• Monochromator: Holographic blazed grating C-T monochromator, proportional dual-beam
• Grating: 1200 lines/mm
• Photocell: Imported silicon photodiode
• Interfaces: USB & Bluetooth
• Wi-Fi: Supported, standard
• Wireless printing: Supported, wireless Bluetooth printer optional
• PC software: Supported, optional
• IoT module software: Standard, supported
• Cuvette holder: Standard, manual 1cm
• Photometric range: 0-200%T, -0.3-3A
• Wavelength mode: Automatic
• Wavelength accuracy: ±0.3nm
• Wavelength repeatability: ±0.1nm
• Spectral bandwidth: 2nm
• Wavelength range: 190-1100°C
• Stray light: 0.05T%
• Photometric accuracy: ±0.5%T, ±0.004Abs (0-0.5A); ±0.008Abs (0-0.5A) 1A)
• Photometric Repeatability: ±0.5%T, ±0.004Abs (0 to 0.5A); ±0.008Abs (0.5 to 1A)
• Photometric Stability: ±0.15%T, ±0.002Abs (0 to 0.5A); ±0.004Abs (0.5 to 1A)
• Lamp Switching Mode: Automatic, 340nm (adjustable)
• Stability: 0.001A (500nm, 3 minutes)
• Noise: 0.15T%
