With a brand-new optical path design and internationally sourced accessories, the instrument offers superior performance and fully meets the analytical needs of even the most professional users. It can be widely used in research and production across a wide range of fields, including organic chemistry, biochemistry, pharmaceutical analysis, food inspection, healthcare, environmental protection, and life sciences.
Features
- Large 7-inch TFT true-color LCD display with Omron touch-sensitive buttons for enhanced comfort and durability. The large screen directly displays various scan curves and graphs.
- USB flash drive storage support allows for data opening and editing without requiring specialized software. Data formats include Excel, txt, and images, and can be exported in four formats: *.csv, *.quad, *.tet, and *.bmp.
- Data Output: Supports RS-232C serial port (printing), USB drive (online connection), and USB host (USB flash drive connection). 16GB of memory is standard.
- The industry's first to utilize the advanced ARM11 processor, capable of storing 2,000 test data records or 500 working curves.
- The suspended optical system design and reinforced, thickened aluminum base plate eliminate the effects of vibration and deformation on the optical system. The double-layer design completely separates the optical path and circuit components, improving the instrument's resolution and stability.
- The instrument utilizes a photoelectric signal detection device, lowering the signal-to-noise ratio and enhancing instrument stability.
- An optional built-in fully automated sample flow system greatly facilitates user experience.
- An optional rotating 8-position automatic cuvette holder ensures that light is perfectly centered as it passes through the cuvette, improving instrument performance.
Parameters

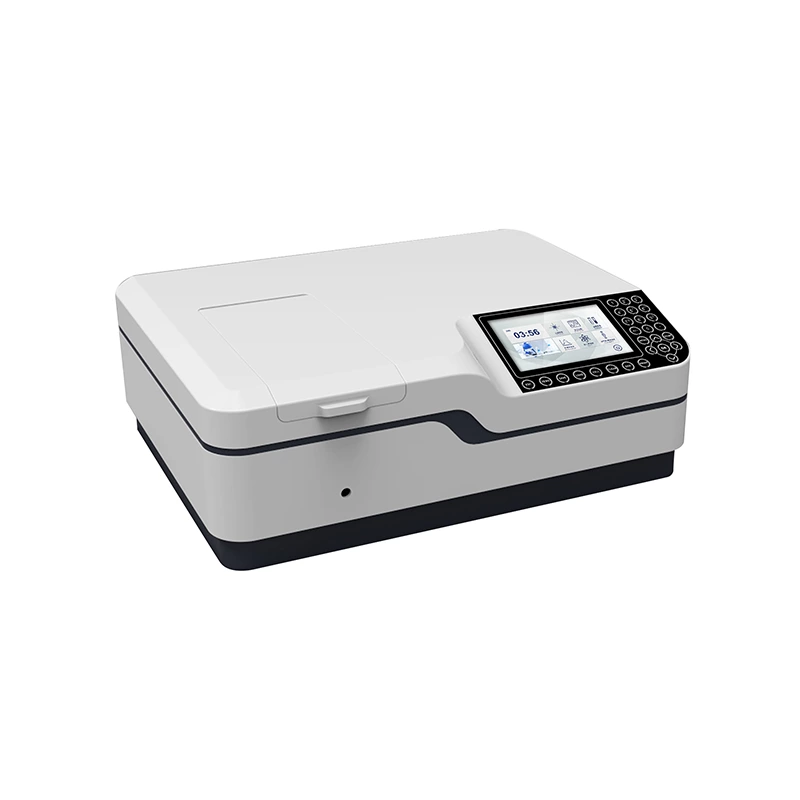

- Instrument Model: T2600
- Optical System: Proportional Dual-Beam, 1200 Lines/mm Holographic Grating
- Spectral Bandwidth: 2.0 nm
- Wavelength Range: 190-1100 nm
- Wavelength Accuracy: ±0.3 nm
- Wavelength Repeatability: ≤0.1 nm
- Wavelength Resolution: 0.1 nm
- Data Display: 7-inch 800 x 480 color graphic LCD
- Stray Light: ≤0.1% at 420 nm, ≤0.1% at 220 nm, 340 nm ≤0.05%T at nm
- Noise: 0% ≤0.05%T, 100% ≤0.1%T
- Photometric Range: 0-200%T, -3-3A, 0-9999C (0-9999F)
- Photometric Accuracy: ±0.3%T
- Transmittance Repeatability: ≤0.1%T
- Baseline Flatness: ±0.001Abs
- Light Source: Deuterium Lamp, Tungsten Lamp
- Data Output: RS-232C Serial Port (Print), USB Drive (Online), USB Host (Connect to USB Flash Drive)
- Processor: Cotex_M3 120MHz
