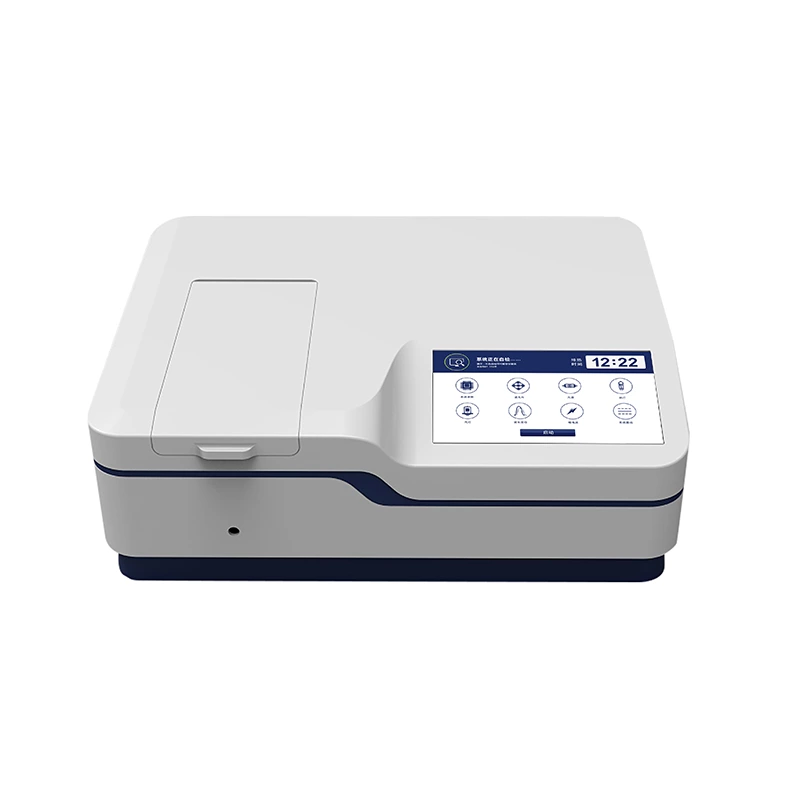

With a brand-new optical path design, premium accessories sourced internationally, superior instrument performance, and a high-resolution 10.1-inch touchscreen, it perfectly meets the analytical needs of even the most professional users. It is widely applicable in research and production across a wide range of fields, including organic chemistry, biochemistry, pharmaceutical analysis, food inspection, healthcare, environmental protection, and life sciences.
Features
- The 10.1-inch color touchscreen display directly displays various scan curves and graphs, allowing users to complete all measurement needs without a computer.
- USB flash drive storage support facilitates user convenience. Measured data can be directly exported to a USB flash drive in Excel, txt, and image formats, supporting four output formats: *.csv, *.qua, *.tet, and *.bmp.
- Data output: RS-232C serial port (printing), USB drive (online connection), USB host (USB flash drive connection), and 8GB of standard memory.
- The industry's first to utilize the advanced ARM12 high-performance processor, the instrument can store 5,000 test data records or 500 working curves.
- The suspended optical system design and reinforced, thickened aluminum base plate eliminate the effects of vibration and deformation on the optical system. The double-layer design completely separates the various circuit components of the optical path, improving the instrument's resolution and stability.
- The instrument utilizes a photoelectric signal detection device, lowering the signal-to-noise ratio and enhancing instrument stability.
- An optional built-in fully automated sample injection system greatly facilitates user experience.
- An optional rotating 8-segment automatic cuvette holder ensures that light is perfectly centered as it passes through the cuvette, improving instrument performance.
Technical Parameters
- Model: T3202
- Display: 10.1-inch 1024×800 high-resolution capacitive touchscreen LCD
- Optical System: Dual-beam, CT monochromator
- Light Source: Imported deuterium lamp and tungsten lamp
- Receiver: Imported photodiode
- Stray Light: 0.05% (220nm)
- Spectral Bandwidth: 2nm
- Wavelength Accuracy: 0.3nm for all wavelengths (0.1nm for 656.1nm)
- Wavelength Repeatability: 0.1nm
- Transmittance Accuracy: 0.3%T
- Photometric Methods: Transmittance/Absorbance/Energy/Concentration
- Data Interface: RS-232C, USB drive, USB host
