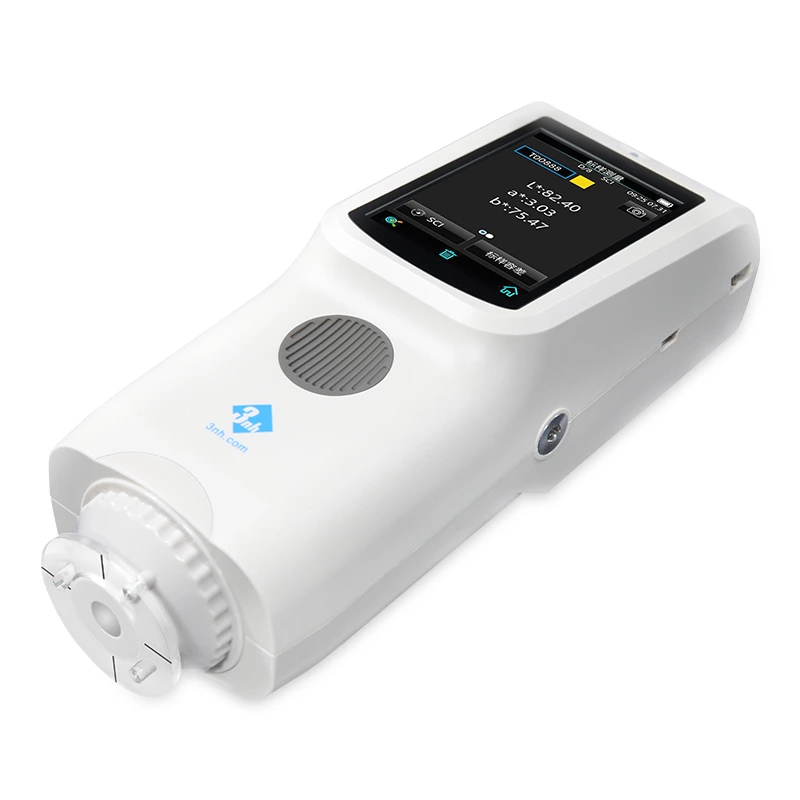

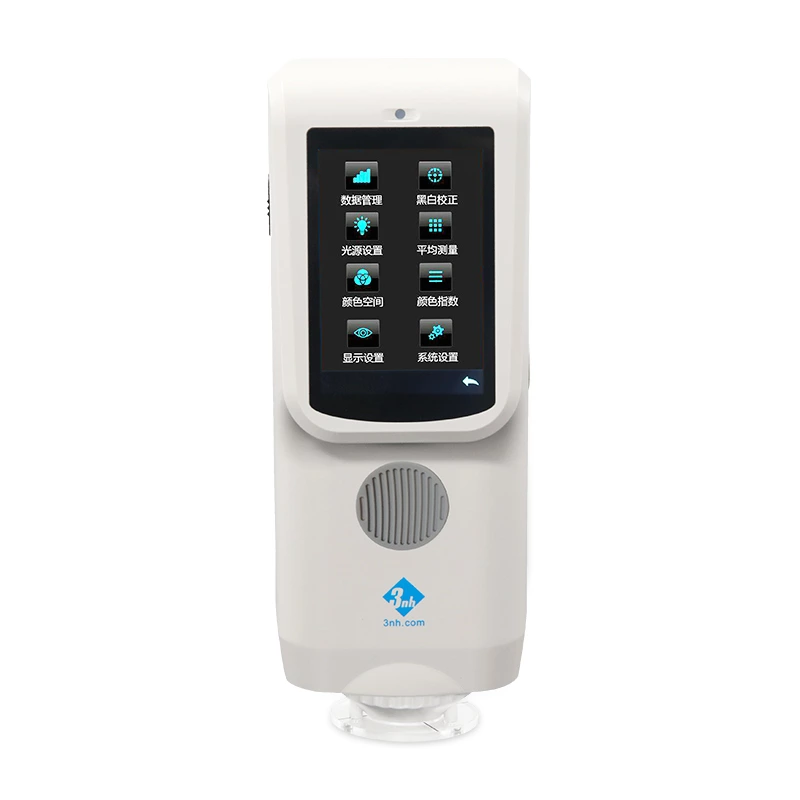

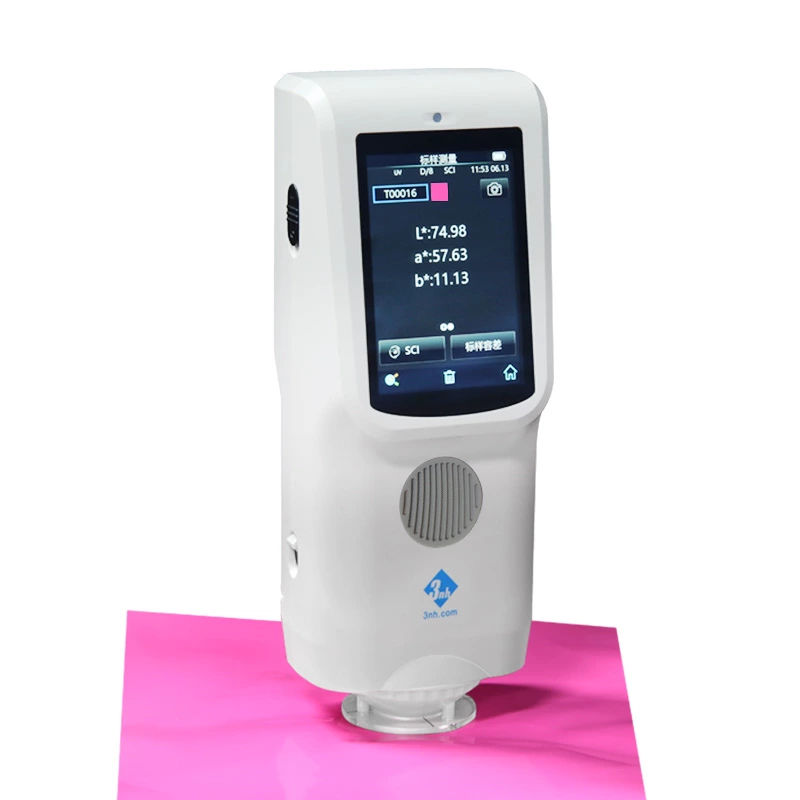

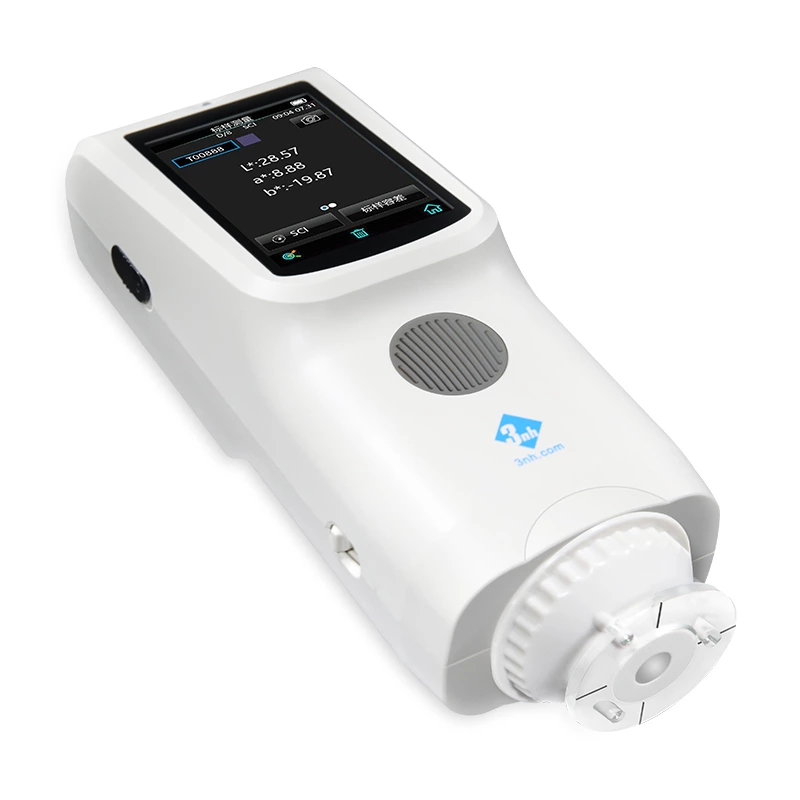

TS7030 Handheld Spectrophotometer

TS7030 is a new portable spectrocolorimeter with 3nh own core research and development technology. It is the high level colorimeter in spectral architecture. In addition to ensure accurate relative ΔE at the same time, it is also to ensure the accuracy of the absolute value of L, A and B for a long time. And it can pass the international standards and national standards of calibration any time any where. Using built-in silicon photodiode array (double row group 32) sensors, imported whiteboard, repeatability ΔE * ab is easily controlled within 0.06. The measurement speed and convenience of the operation makes it easy to use. TS7030 spectrocolorimeter can all quickly judge color difference measurement when connecting to PC software or not. With powerful functions and 8 mm aperture, it meets the industry production and quality inspection of accurate color difference control like plastic electronics, paint and ink, textile printing and dyeing, printing, ceramic industry etc.

Features

• Φ 8 mm diameter measurement, 10 ° Angle observer can meet most of the industry customer requirements
• Combination of full-spectrum LED light source, flat grating and true color capacitive touch screen, with a high starting point
• Silicon photodiode array (32 groups with double rows) sensor, display precision 0.01, good repeatability
• The light source life is more than 3 million measurements in 5 years, and the lithium battery takes 6,000 measurements within 8 hours, which can be recharged repeatedly and has a long battery life
• 1000 data storage standard samples and 20000 samples were used for quick data search, analysis and comparison.

Application

With 8mm flat and tip apertures, TS7030 spectroclorimeter is widely suitable for the industry production and quality inspection of accurate color difference control like plastic electronics, paint and ink, textile printing and dyeing, printing, ceramic industry etc.
