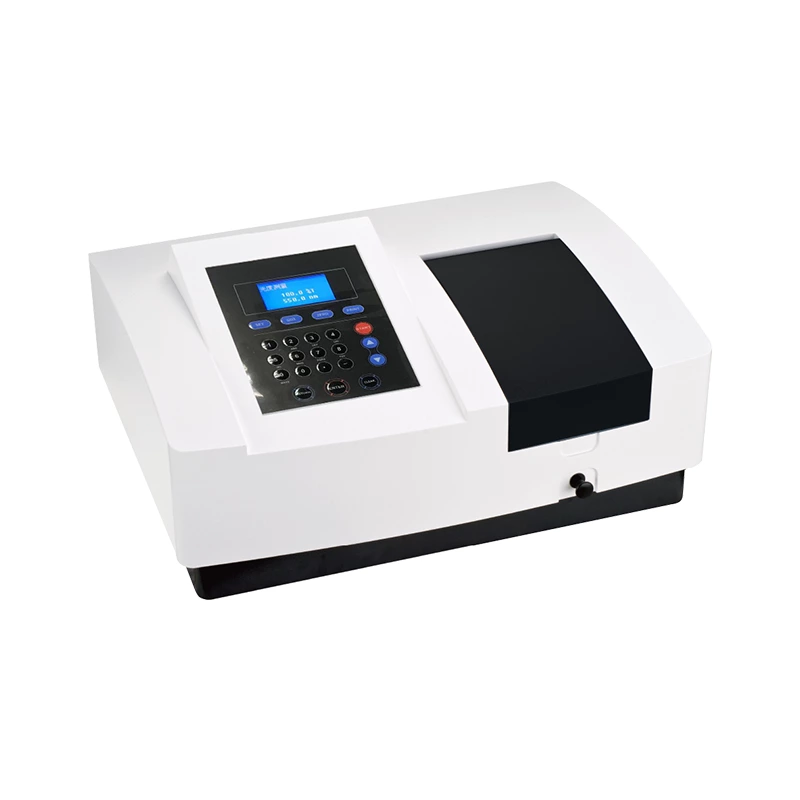

This series of instruments are low-cost, high-performance spectrophotometers designed to meet the diverse quantitative analysis needs of modern analytical laboratories using spectral analysis. They are widely used in the medical and health care, environmental protection, food industry, petrochemical industry, biochemistry, universities, and quality control departments.
Features
- Utilizes a 51 microcomputer system, capable of storing standard curves and test data.
- Features self-diagnostic functionality.
- Provides power-off protection.
- Built-in quantitative analysis software for user-friendly operation.
- Easily configure parameters for photometric analysis, quantitative analysis, kinetic analysis, spectral scanning, multi-wavelength analysis, and DNA/protein analysis.
- Features a standard printer port and RS-232 communication interface.
Parameters
- Instrument Model: UV754N
- Wavelength Drive: Auto Wavelength
- Wavelength Range: 200-1000nm
- Wavelength Accuracy: ±2nm
- Wavelength Repeatability: 0.5nm
- Spectral Bandwidth: 4nm
- Transmittance Accuracy: ±0.5%T
- Transmittance Repeatability: 0.2%T
- Transmittance Range: 0.0-200%T
- Luminosity Range: -3-3A, 0-200%T, 0-9999C
- Stray Light: 0.2%T@220nm/360nm
- Stability: ±0.002A/h@500nm
- Display: 128×64 dot matrix LCD
- Communication: USB
- Printer: Optional
- Analysis Software: Supported
- Noise Level: 0.001A/2min@500nm
- Baseline Flatness: 0.002A/h
