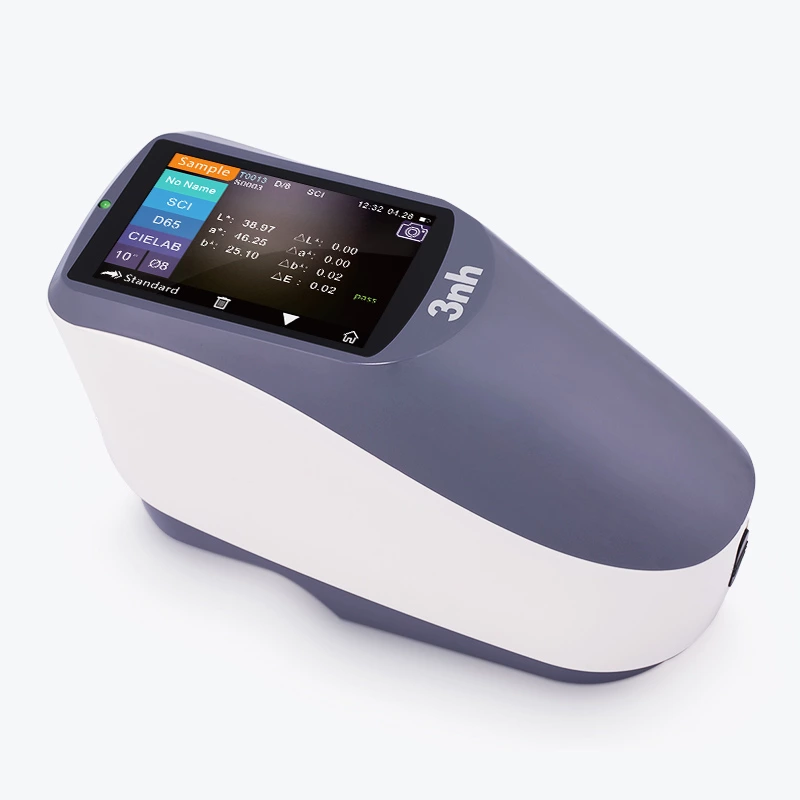

Name: YS3060 Portable Spectrophotomer
SKU: YS3060
Rating: 4.8 (4 reviews)

YS3060 Portable Spectrophotomer

YS3060

Integrating Sphere Size:48mm
Light Source:Combined LED Light, UV Light
Spectrophotometric Mode:Concave Grating
Sensor:256 Image Element Double Array CMOS Image Sensor
Wavelength Range:400-700nm
Wavelength Interval:10nm
Semiband Width:10nm
Measured Reflectance Range:0-200%

YS30 Series grating spectrophotometer adopts bluetooth and USB dual modes for wider use, and with SCI & SCE measurement data, it is compatible with many famous brands. 8mm, 4mm or customized aperture is optional. Speical UV light makes YS3060 easy to measure sample with UV and high accuracy and extended function PC software let it be good partner for colorist and color quality contral management.

Features

Perfect combination of beautiful appearance and the human body mechanics structural design
D/8 geometrical optics, conforms with CIE No.15,GB/T 3978,GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil
Use long life and low power consumption combined LED light source
Switchable 8mm/4mm aperture, support both SCI and SCE at the same time
Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission
High electronic hardware configuration: 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element Double Arrays CMOS Image Sensor
USB port, widely useful
Super stain-resistant and stable standard white calibration plate
Large capacity storage space, over 20,000 measurement data
Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard colorimetric data, meet a variety of customers' demand for color measurement

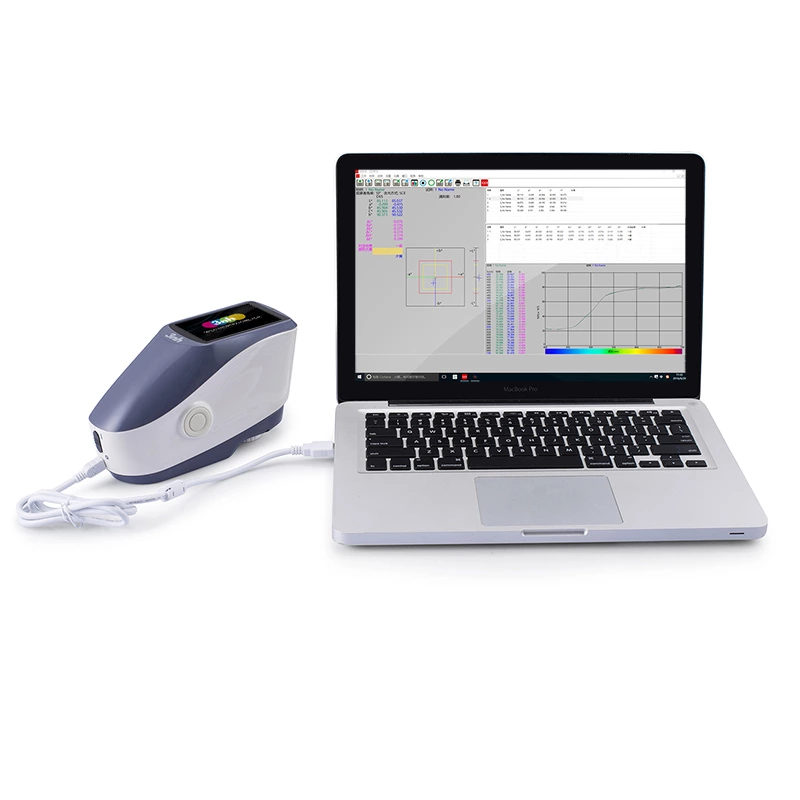

Camera Locating Function, better position; l.PC software has a powerful function extension.

PARAMETERS

Model Items	YS3060
Optical Geometry	Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)
Integrating Sphere Size	48mm
Light Source	Combined LED Light, UV Light
Spectrophotometric Mode	Concave Grating
Sensor	256 Image Element Double Array CMOS Image Sensor
Wavelength Range	400-700nm
Wavelength Interval	10nm
Semiband Width	10nm
Measured Reflectance Range	0-200%

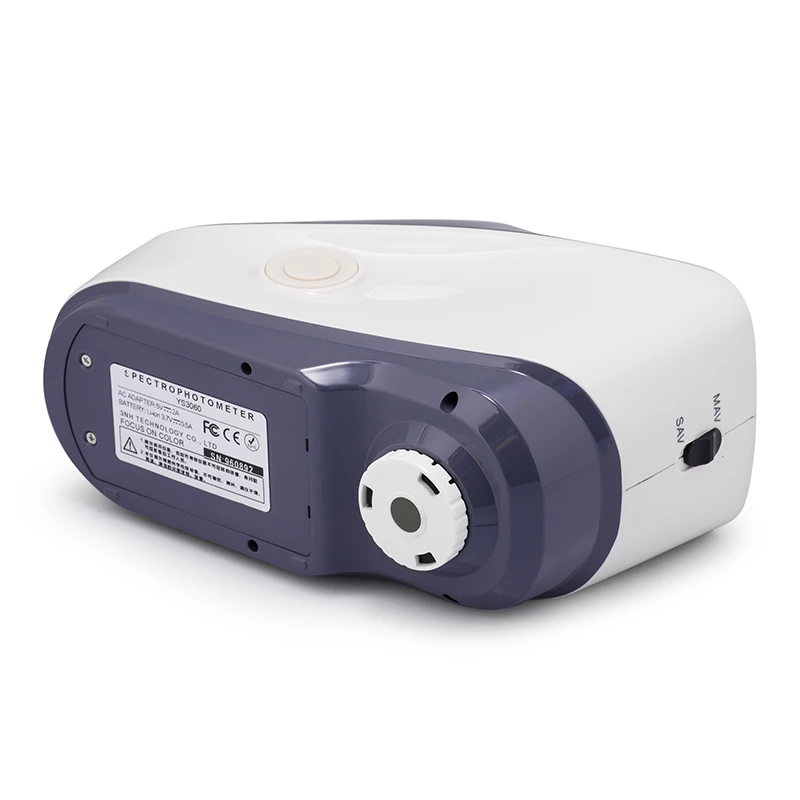

Measuring Aperture	Dual Aperture: 10mm/8mm & 5mm/4mm
Specular Component	SCI&SCE
Color Space	CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB,S-RGB
Color Difference Formula	ΔEab, ΔEuv, ΔE94, ΔEcmc(2:1), ΔEcmc(1:1), ΔE00, ΔE(Hunter)
Other Colorimetric Index	WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO), Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness
Observer Angle	2°/10°
Illuminant	D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4，F5，F6,F7(DLF),F8,F9，F10(TPL5),F11(TL84),F12(TL83/U30)
Displayed Data	Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time	1.5s
Repeatability	Spectral reflectance: MAV/SCI, standard deviation within 0.08%(400~ 700nm: within 0.18%) Chromaticity value: MAV/SCI, within△E*ab 0.03(After calibration, measure the average value of the white board 30 times each 5S.)
Inter-instrument Error	MAV/SCI, within△E*ab 0.15(Average value for 12 BCRA series II color tiles)
Measurement Mode	single measurement, average measurement(2-99 times)
Locating Method	Camera View Finder Locating
Battery	Li-ion battery. 5000 measurements within 8 hours
Dimension	LWH=18477105mm
Weight	600g
Illuminant Life Span	5 years, more than 3 million times measurements
Display	3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port	USB/RS-232, Bluetooth® 4.0 dual mode (compatible with 2.1)
Data Storage	Standard 2000 Pcs, Sample 20000 Pcs
Language	English, Chinese
Operating Environment	0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment	-20~50℃, 0~85%RH (no condensing)

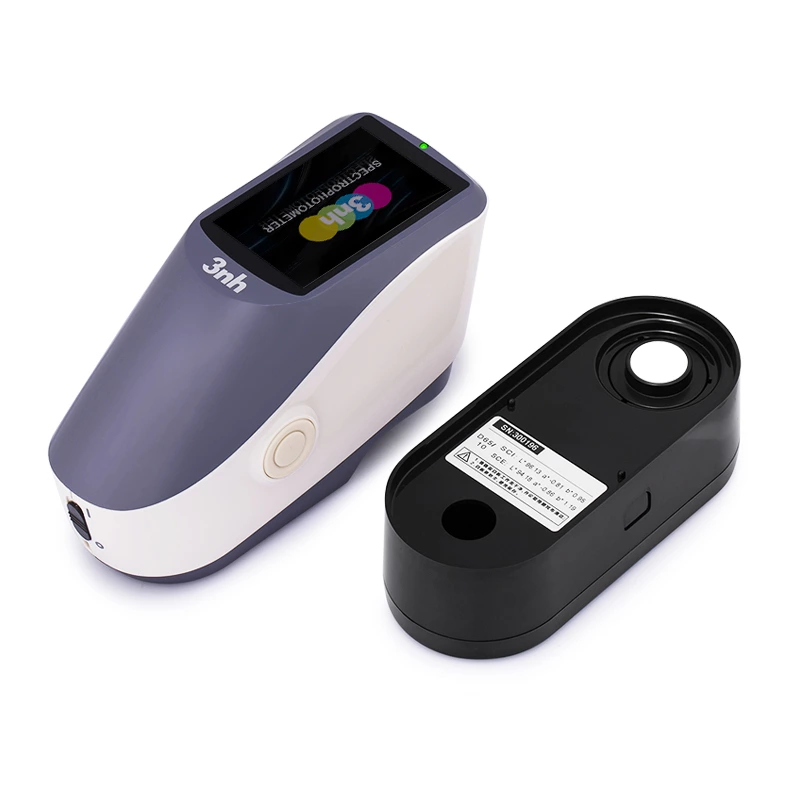

Standard Accessory	Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover
Optional Accessory	Micro Printer, Powder Test Box
Notes: The specifications are subject to change without notice.
