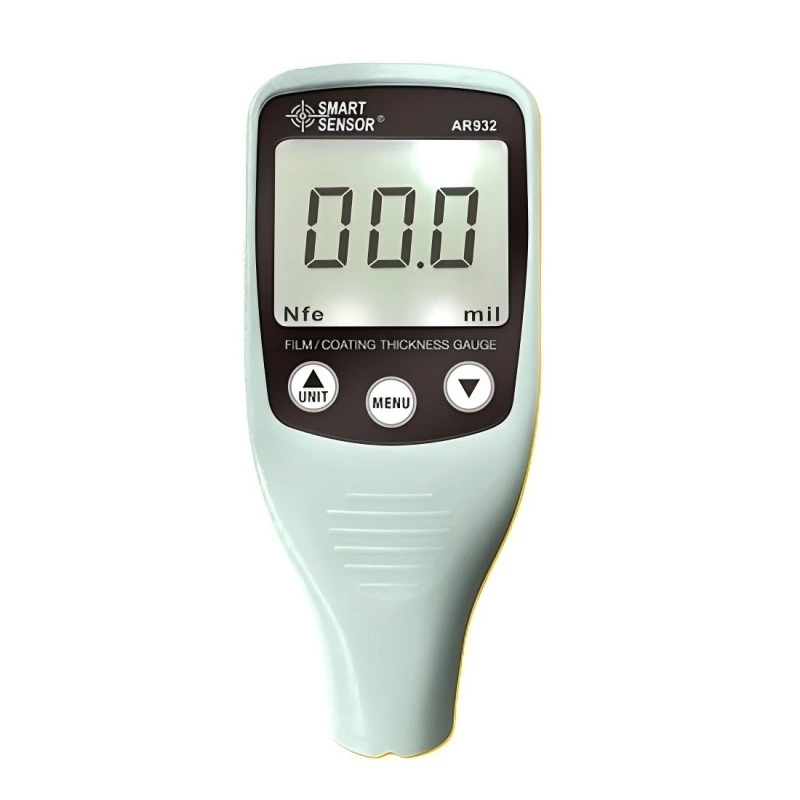

AR932
Measuring range：0~1800μm
Measuring Principle：Magnetic Induction & Eddy current
Accuracy：±(1.8%um±2um)(0-500um) ; ±(2.2%um±2um) (500-1500um)
Resolution：0.1μm / 1μm
Data Storage：20 groups
Operating Condition：0℃~50℃(without strong magnetic)
FEATURES
Coating thickness gauge is used to measure the coating wall of metals and other material. It uses digital pocess technology, accurate, and light.
SPECIFICATIONS
| Measuring range | 0~1800μm |
| Measuring Principle | Magnetic Induction & Eddy current |
| Accuracy | ±(1.8%um±2um)(0-500um) ; ±(2.2%um±2um) (500-1500um) |
| Resolution | 0.1μm / 1μm |
| Backlight Display | √ |
| Battery Indication | √ |
| Zero / Two Poin / Basic correction | √ |
| Alarm Buzzer | √ |
| Single / Continuous / Standard Deviation Measurement | √ |
| Data Storage & Recall | √ |
| Data Storage | 20 groups |
| Max & Min Measuring | √ |
| AVG & DFR Measuring | √ |
| Metric / Imperial Switchable | √ |
| Data Analysis | √ |
| Operating Condition | 0℃~50℃(without strong magnetic) |
PACKING INFORMATION
| Power | 2*1.5V AAA battery |
| Product Net Weight | 75g |
| Product Size | 119*50*30mm |
| Packing | Gift Box |
| Standard Quantity Per Carton | 40 |
| Standard Carton Size | 52.5*40*49cm |
| Standard Carton Gross Weight | 20KG |
