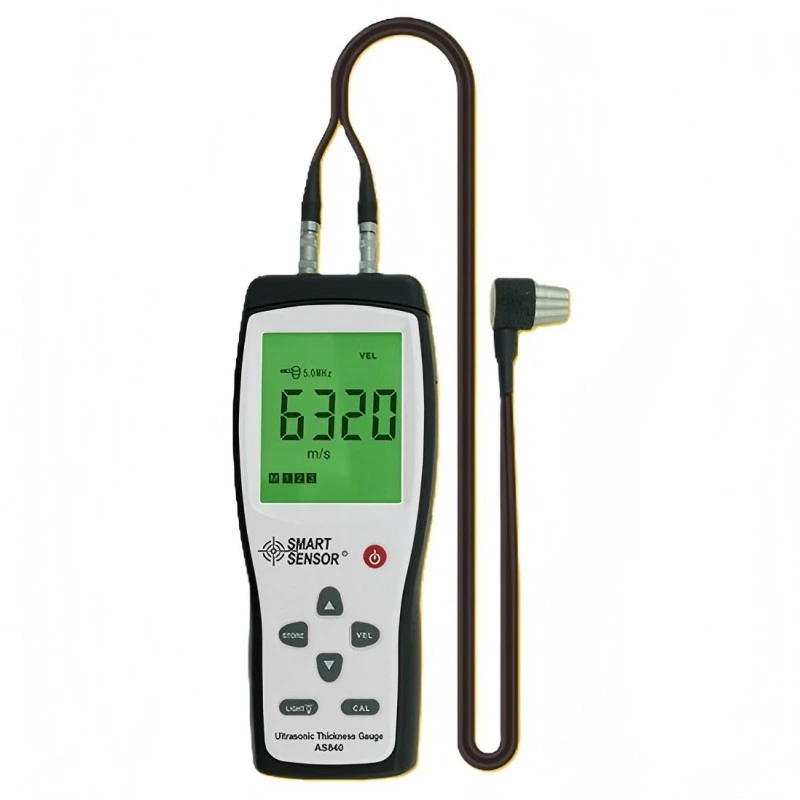

AS840 Ultrasonic Thickness Gauge
AS840
Measuring Range：1.2~225mm
Accuracy：±(1%H+0.1)mm
Resolution：0.1mm
Sound Velocity Range：1000~9999m/s
Frequency：5MHz
Operation Temperature：0°C~40°C
Minimum limit for tube measuring: Ф20*3mm(steel)
AS840
Measuring Range：1.2~225mm
Accuracy：±(1%H+0.1)mm
Resolution：0.1mm
Sound Velocity Range：1000~9999m/s
Frequency：5MHz
Operation Temperature：0°C~40°C
Minimum limit for tube measuring: Ф20*3mm(steel)
FEATURES
The usage of an ultrasonic thickness gauge for non-destructive testing to check material properties such as thickness measurement, is now regularly utilized in all areas of industrial measurements. The ability to gauge thickness measurement without requiring access to both sides of the test piece, offers this technology a multitude of possible applications.
SPECIFICATIONS
| Measuring Range | 1.2~225mm |
| Accuracy | ±(1%H+0.1)mm |
| Resolution | 0.1mm |
| Sound Velocity Range | 1000~9999m/s |
| Frequency | 5MHz |
| Operation Temperature | 0°C~40°C |
| Minimum limit for tube measuring | Ф20*3mm(steel) |
| Auto Zero Calibration | √ |
| Auto linear compensation | √ |
| Coupling Indicator | √ |
| Metric / Imperial Switchable | --- |
| Battery Indication | √ |
| Auto Power Off: | √ |
PACKING INFORMATION
| Power | 9V battery |
| Product Net Weight | 200g |
| Product Size | 150*80.5*34mm |
| Packing | Gift Box |
| Standard Quantity Per Carton | 24 |
| Standard Carton Size | 47*38*55cm |
| Standard Carton Gross Weight | 19.5KG |
