The NB-IoT water meter is one kind of smart water meter which is based on NB-IoT technology. Kaifeng Shengda Water Meter Co., Ltd provide you the complete solution for the NB-IoT water meter. It can realize wireless remote meter reading and remote valve control.

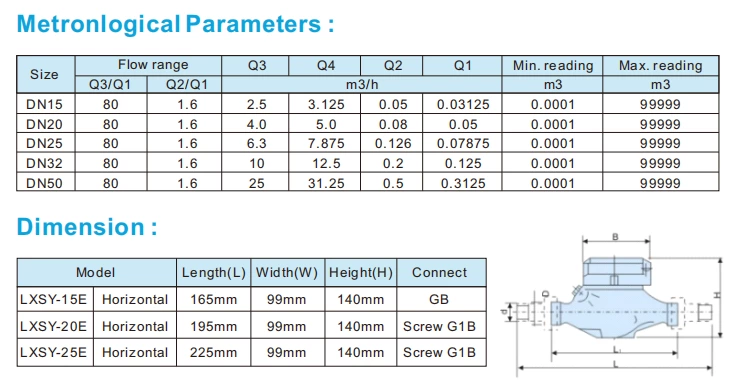

Parameters
- Size:DN15-DN200
- Body:Brass(with valve)/iron(without valve)
- Type:Dry dial/wet dial(standard)
- Max work pressure:PN16.
- Protection class:IP68
- Protocol: Narrow band(LTE Cat.NB)
- Frequency: B3(1800),B5(850),B8(900)
- Battery: more than 6 years
- Pressure loss:≤0.063Mpa
- Water temperature:T30/T90
- Standards:ISO4064.
- Certificate:MID
- SIM card:Micro SIM card(Type 3FF)
- Working mode: Class A
- Software: B/S Cloudy serve platform
- Software payment: Supply for free
- Composition:NB-IoT water meter, Base station, Serve Platform
Function of NB-IoT water meter
- The LCD display screen displays the current signal value, balance, water consumption,remaining water quantity and other information
- Early warning system: battery undervoltage and abnormal metering alarm
- Step water price can be set according to user category and usage.
- Battery: more than 6 years of use
- High sampling accuracy
- Reed fault detection: When a sampling reed fails, the water meter will display the reed failure,and the water meter can still measure accurately.
- Support internal / external antenna, stable and reliable signal.
- The battery can be replaced directly without opening the water meter
- Remote reading and remote valve control
- The system adopts BS architecture: the browser can log in, and both PC and mobile phone can support it.
- Data upload frequency can be set,periodic uploads can be uploaded at intervals of minutes,hours and days.
- NB Internet of things remote water meter supports two modes: fixed time point upload and periodic upload to meet the use needs of different users.
- Fixed time point upload supports four methods: month, week, day and hour (which days of the month, which days of the week, which hours of the day, and which minutes of the hour)
