- High toughness and aging resistance
- Hydrolysis resistance, impact resistance and creep resistance
- It can be used normally in different environments
- High and low temperature resistance, more frost burst resistance
- No scaling and long service life
- Support OEM
- Proven multi-jet flow meter design
- Antimagnetic, Antifreezing
- Vacuum sealed counter, keep clear in long term.
- ISO4064, Class B

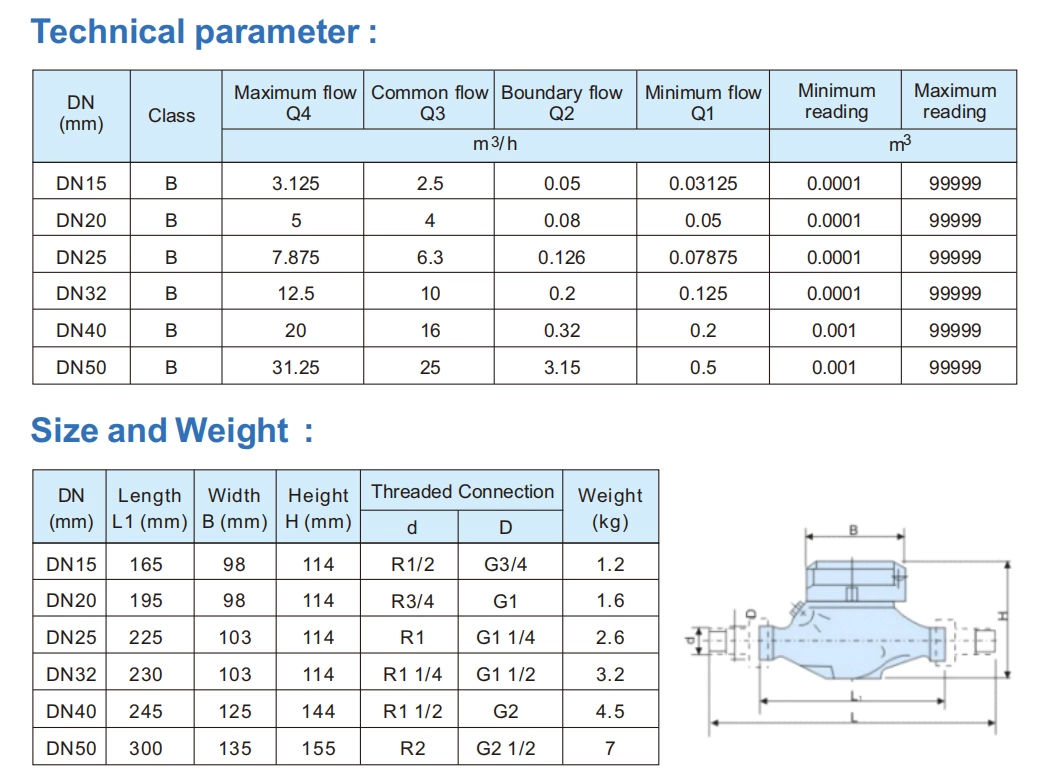

Parameters
- Size: DN15-DN50
- Body: ABS/Nylon(optional)
- Type: Dry dial/wet dial(optional)
- Max work pressure: PN16/PN10(optional)
- Pressure loss: ≤0.063Mpa
- Water temperature: T30,T50(optional)
- Standards: ISO4064.class B
- R: R80/R100/(R=Q3/Q1)(optional)
- Install: Horizontal
