Stainless steel water meter is hygienic and environment-friendly, has no secondary pollution, is acid and alkali resistant, will not produce corrosion and exudation at high and low temperatures, is safe and reliable, and meets the food hygiene standard. It is a new product of environmental protection and energy saving. And longer service life, can be installed in harsh environment.

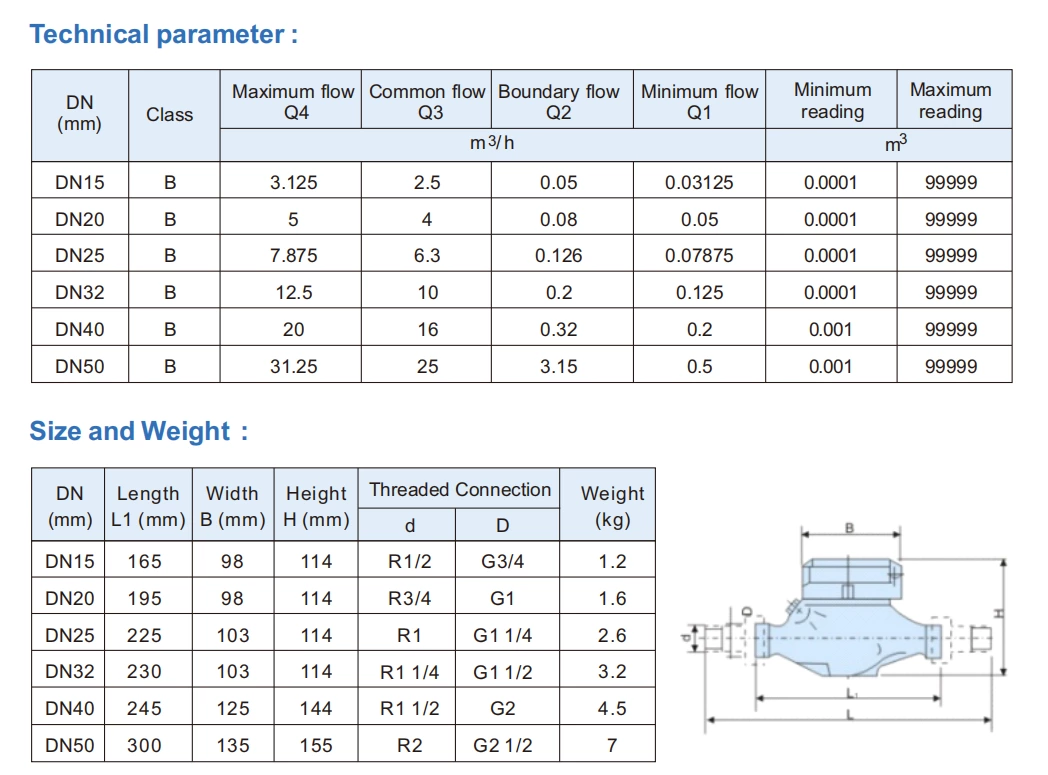

Parameters
- Size: DN15-DN300
- Body: SS304,SS316,SS316L(optional)
- Type: Dry dial/wet dial(optional)
- Max work pressure: PN16/PN10(optional)
- Pressure loss: ≤0.063Mpa
- Water temperature: T30,T50,T90(optional)
- Standards: ISO4064.class B
- R: R80/R100/(R=Q3/Q1)(optional)
- Install: Horizontal use
Characteristics
- Stainless steel water meter, corrosion resistance, acid resistance.
- More hygienic, Longer service life.
- Support OEM
- Proven multi-jet flow meter design
- Dry dial, Magnetic transmission structure.
- Antimagnetic, Antifreezing
- Vacuum sealed counter, keep clear in long term.
- ISO4064, Class B
- Remote transmission device can be added upon request
